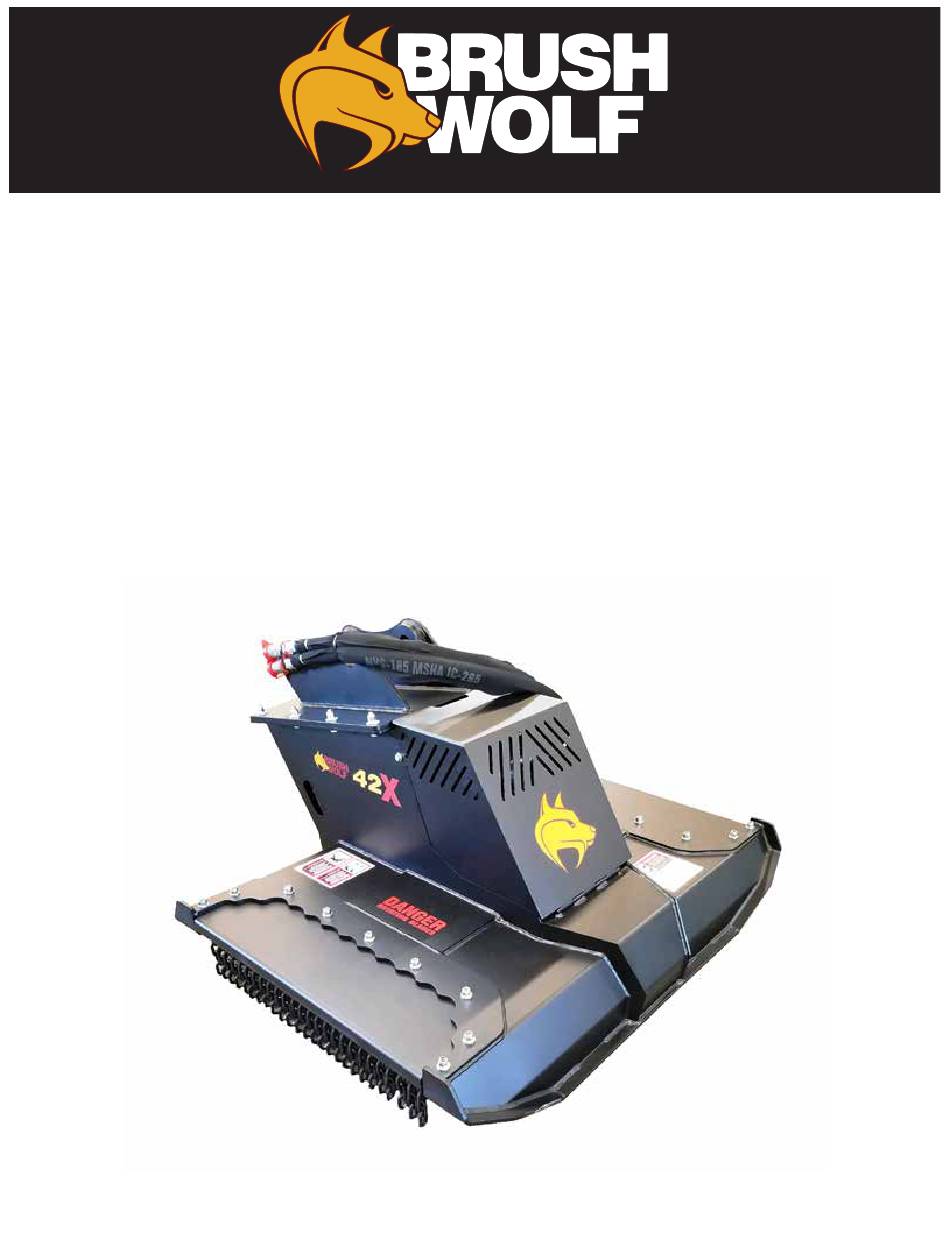

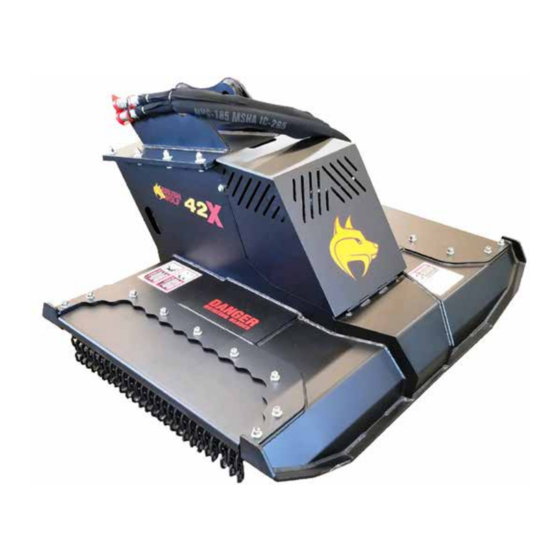

- Page 1 Excavator / Backhoe Brush Cutter 42X & 48X Owner / Operator Instruction & Maintenance Manual — 1 — www.brushwolf.com...
-
Page 2: Foreword
Before operation of your Brush Wolf attachment read the entire contents of this manual Thank you for your purchase of the Brush Wolf rotary brush cutter. At Cross-Tech Manufacturing we take great pride in the design and manufacturing of our products and we appreciate your business. -
Page 3: Table Of Contents
Safety Section..................4 Operation Instructions..............6 Maintenance..................7 Maintenance Checklist..............8 Troubleshooting................9 42X HD, 42X XP - Parts Diagram..........10 42X HD, 42X XP Parts List............11 48X HD, 48X XP Parts Diagram..........12 48X HD, 48X XP Parts List............13 Chain Curtain (Optional) ............14 Blade Carrier Diagram & Parts List..........16 Dealer Checklist................18... -
Page 4: Safety Section
Tech Manufacturing can not cover every incident that might be a hazard. Extreme caution should be used at all times. Only use Brush Wolf brush cutters for the purpose for which it has been designed. Always operate an excavator/backhoe with a forestry rated door and cab. - Page 5 Do Not attempt to straighten blades. Order replacement blades if blades are bent, cracked or damaged. Do Not leave the Brush Wolf unattended while in a raised position. Always make sure both the runners are placed firmly on the ground and shut down the excavator/backhoe.
-
Page 6: Operation Instructions
Brush Wolf should be as close to the ground as possible. 8. Slowly apply hydraulics to the Brush Wolf and increase the engine speed to high idle. Make sure the unit is operating smoothly before moving the excavator/backhoe forward. When temperatures are below zero allow additional time for hydraulic fluids to warm-up. -
Page 7: Maintenance
2. Check all nuts and bolts for proper tightness. See Maintenance Schedule on page 3. Every Brush Wolf is tested at the factory and all nuts and bolts have been tight- ened to specifications. We recommend you check them after the first 4 to 6 hours of operation and at regular intervals as defined in the Maintenance Schedule. -
Page 8: Maintenance Checklist
Do Not loan your brush cutter to another excavator/back hoe owner. The potential exists for hydraulic contamination and could shorten the life of your operating equipment or the hydraulic motor on your Brush Wolf brush cutter. ITEM TYPE OF MAINTENANCE... -
Page 9: Troubleshooting
Troubleshooting Note: When performing maintenance, shut down the excavator/backhoe and remove hydraulic hoses from the power source. Problem Check Loss of Power Low hydraulic fluid level Overheated hydraulic fluid* Contaminated hydraulic fluid* *May damage hydraulic motor Excessive Dull, broken or damaged blades Unit Vibration Blade carrier out of balance Loose nuts and bolts... -
Page 10: Hd, 42X Xp - Parts Diagram
42X Parts Diagram — 10 —... -
Page 11: Hd, 42X Xp Parts List
COUPLER, FLAT FACED, 1/2 MALE, 7/8-14, O-RING BOSS 15249 COVER PLATE, CLAMP, 30MM, TWO HOSE 16495 MOTOR, 3.4 CU IN, A3 SAE C MOUNT ,1 SAE FLANGE PORTS -42X HD 16548 MOTOR, 4.71 CU IN, A3 SAE C MOUNT ,1 SAE FLANGE PORTS - 42X XP 30108... -
Page 12: Hd, 48X Xp Parts Diagram
48X Parts Diagram — 12 —... -
Page 13: Hd, 48X Xp Parts List
48X Model Parts List ITEM ITEM QTY PART NUMBER DESCRIPTION 16546 ASSEMBLY, BLADE CARRIER, 48X, DIRECT DRIVE 16715 DECAL KIT, 48X HD 16716 DECAL KIT, 48X XP HOSE WHIP ASSEMBLY, -6 ORFS/-8 ORFS, FEMALE SWIVEL COUPLINGS, 0.375 X 16533 112.000 HOSE HOSE WHIP ASSEMBLY, -12 ORFS, FEMALE SWIVEL COUPLINGS, 0.750 X 90.000 15590 HOSE... -
Page 14: Chain Curtain (Optional)
Optional Chain Curtain Insert for all models ITEM PART ITEM NUMBER DESCRIPTION WELDMENT, CHAIN CURTAIN INSERT, 42X 16567 16568 WELDMENT, CHAIN CURTAIN INSERT, 48X 30062 NUT, NYLOCK, 1/2-13, ZINC, 42X NUT, NYLOCK, 1/2-13, ZINC, 48X 30062 30084 WASHER FLAT, 1/2, ZINC, 42X 30084 WASHER FLAT, 1/2, ZINC, 48X —... - Page 15 THIS PAGE IS INTENTIONALLY BLANK — 15 — www.brushwolf.com...
-
Page 16: Blade Carrier Diagram & Parts List
Blade Carrier & Parts Diagram - 42X & 48X ITEM MODEL PART ITEM SERIES NUMBER DESCRIPTION 16530 WELDMENT, BLADE CARRIER, 42X/48X, DIRECT DRIVE 15265 SET OF 2 - BLADE, 14.750 X 4.000 X .500 16631 SET OF 2 - BLADE, 17.750 X 4.000 X .500 15066 BOLT, D-BOLT, 1 1/8-12, BW 30112 BOLT_HH_3_4-16X2 UNC_GRD8 YZ 15148 NUT, TOP LOCK, 1 1/8-12, GRADE C, PLAIN... - Page 17 THIS PAGE IS INTENTIONALLY BLANK — 17 — www.brushwolf.com...
-
Page 18: Dealer Checklist
Also available to fill out on-line: www.brushwolf.com SAFETY OPERATIONS CHECKLIST Explain and alert buyer of High Flow motor and case drain - if applicable. Explain and demonstrate operation of the Brush Wolf attachment. Explain and demonstrate inspection points and frequency; including nuts, bolts, blades, hoses, etc. -
Page 19: Warranty Registration
Warranty Registration Form Thank you for choosing Brush Wolf. Please complete the form below to register your Brush Wolf prod- uct, you can also use the self-addressed Post Card insertion found in the packet attached to the Brush Wolf or there is a form available to fill out on-line at www.brushwolf.com. Please complete the Warranty Registration form within 30 days of purchase date to qualify for warranty. -
Page 20: Warranty Information
WARRANTY INFORMATION: The Warranty Claim Form must be completed in full detail and received in good condition. Cross-Tech Manufacturing, Inc. limits it warranty to the hydraulic motor for eighteen (18) months from the original date of sale. A three (3) year warranty is included on the structural steel from the date of sale. A Warranty Registration Form for this equipment must exist before warranty claims will be valid.
