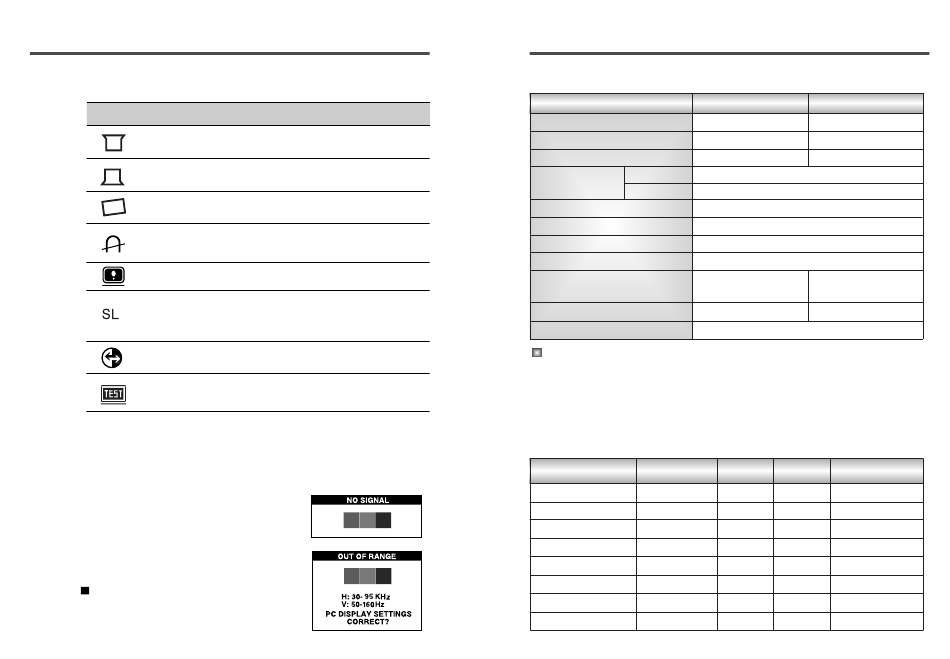

ICON CONTROL
T. PIN CORNER
B. PIN CORNER
ROTATION
DEGAUSS
STATUS
SIGNAL LEVEL
RECALL
COLOR TEST
Self Diagnosis
When the monitor doesn't display, if you press any key, Self Diagnosis
screen is displayed. Self Diagnosis function checks if the status of the
monitor is No Signal or Out of range.
No Signal screen is displayed when th D-Sub
signal connector is not connected or the status of
the monitor is on DPMS mode.
Out of Range screen is displayed when the
applied frequency is under or over normal range.
Normal range
H : 30 - 95 KHz
V : 50 - 160 Hz
English - 8
FUNCTION
Adjust the pin corner top when the top
sides of the screen are bowed.
Adjust the pin corner bottom when the
bottom sides of the screen are bowed.
Adjust the rotation when the screen is
tilted left or right.
Degaussing keeps the monitor free from
unwanted magnetism that can result in
color impurity.
Display horizontal & vertical frequency
and polarity.
Video input signal voltage varies dependent
on a video card. Please change the signal
voltage if images run on the monitor.
factory default is 0.7V)
Reset the screen to the Factory Preset
Display Settings.
Display a RGB Color Bar to determine
whether the screen color is expressed
normally or not.

SPECIFICATIONS

Model Names
CDT Size
Diagonal visible image area
Dot Pitch
Synchronization
Plug and Play
Power Saving
Power Source
Power Consumption
Dimension-W x H x D
(set with stand)
Weight-unpacked(lbs/Kg)
(The
Operating Temperature
The specification can be changed without any prior notice to improve
the quality of the product.

FACTORY PRESET TIMINGS

Mode
VGA 480
VGA 400
VESA 43K
VESA SVGA 85
VESA 60K
VESA 1024/85
VESA 1280/75
VESA 1280/85
940DF
19-inchFlat
18-inch
0.24 mm
Horizontal 30 - 95 KHz
Vertical 50 - 160 Hz
VESA DDC Compatible
EPA, VESA DPMS, Nutek Compliant
100 - 240 Vac, 50/60 Hz (Free Voltage)
100W
444 x 442 x 458 mm
45.6/20.7 45.6/20.7
10 ~ 40°C /50 ~ 104°F
Resolution
H.Freq (KHz) V.Freq(Hz)
(dots lines)
X
640 480 31.5 60
X
720 400 31.3 70
X
640 480 43.3 85
X
800 X 600 53.7 85
1024 768 60.0 75
X
1024 768 68.7 85
X
1280 1024 80.0 75
X
1280 1024 91.1 85
X
English - 9
940DFBK
19-inch Flat
18-inch
0.24 mm
444 x 442 x 458 mm
Remark
Non-interlaced
Non-interlaced
Non-interlaced
Non-interlaced
Non-interlaced
Non-interlaced
Non-interlaced
Non-interlaced
