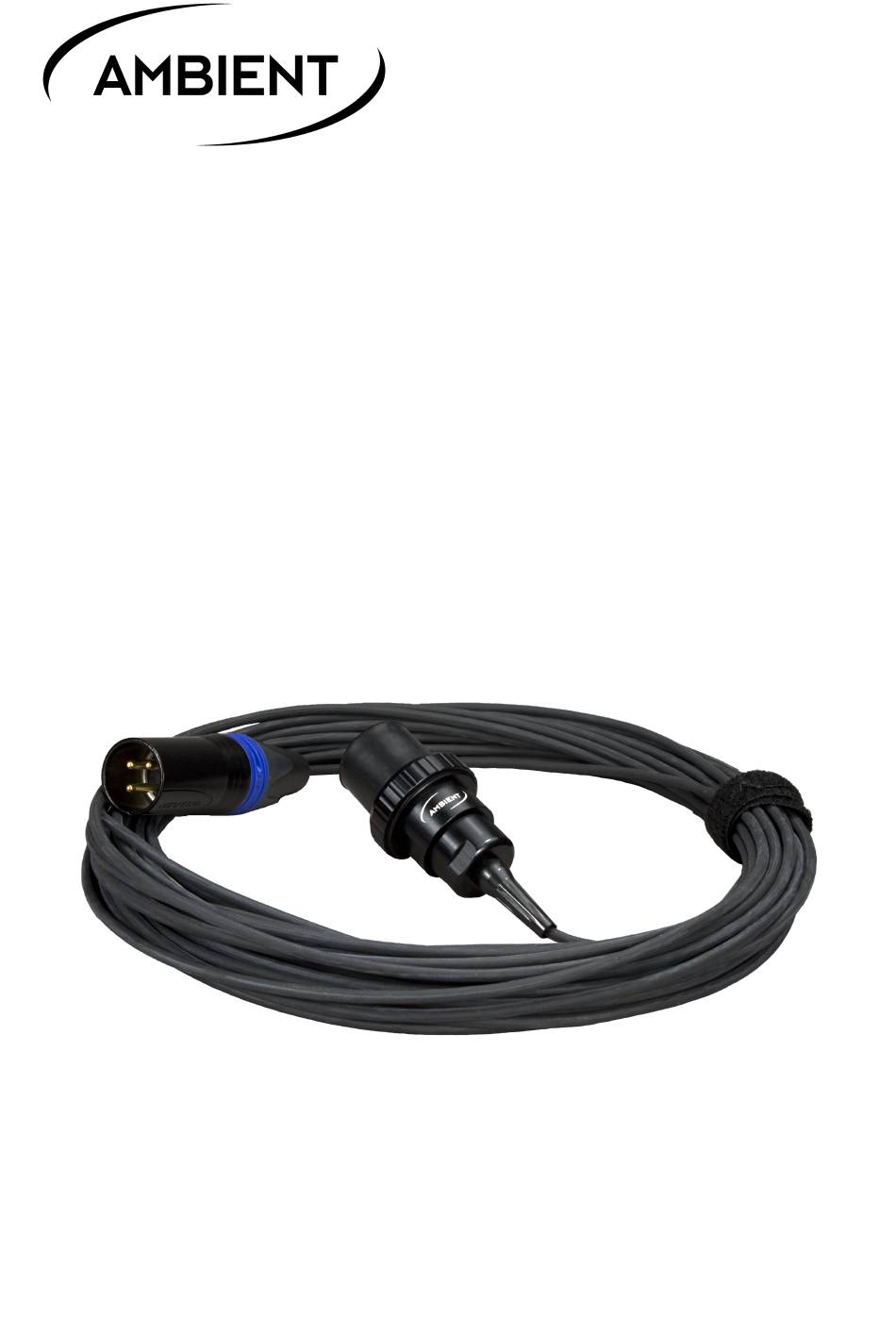

- Page 1 Hydrophone ASF-2 MKII experience quality.
-
Page 3: Table Of Contents
ASF-2 MKII Table of contents page 1. Introduction 2. Package Contents 3. Safety Instructions 4. Powering / Electrolysis 5. Unit Description 6. Mains Hum 7. Underwater Acoustics 8. Acoustic Specifications 9. Physical Specifications Warranty & Approvals www.ambient.de/en... -
Page 4: Introduction

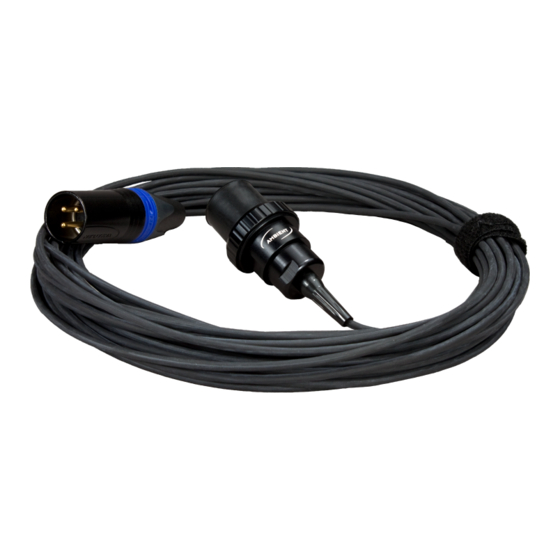

» The professional Ambient underwater sound « With the ASF-2 MKII we use parts of the ASF-1 technology to create an affordable, great sounding hydrophone. It comes with a 10m moulded cable to make it easy to use - no extra equipment required. -
Page 5: Package Contents
This is a natural process which won’t damage the unit nor affect the usability. If the corrosion is starting to dissolve the metal, stop using the ASF-2 MKII immediately and check if the housing is connected to any ground. (More info in “4. Powering”) Never use the hydrophone within acids or bases. -
Page 6: Powering / Electrolysis
Electrolysis is a tough problem while working with electrical equipment in a wet environment. To avoid any kind of electrolysis, the metal parts of the ASF-2 MKII are not and should not be connected to the audio ground of the unit. If the ground of the mixer / recorder is connected to the ground of the boat and the audio ground of the hydrophone would be connected to the hydrophone metal housing, the ASF-1 MKII would become the cathodic protection of the ship. -
Page 7: Mains Hum
ASF-2 MKII 6. Mains Hum When using the ASF-2 MKII indoor, some general details have to be considered: The ASF-2 MKII is working with highly sensitive piezo sensors and therefore also sensitive to • electromagnetic and electrostatic fields. Water picks up electrostatic radiation. Therefore, electronic devices known for •... -
Page 8: Acoustic Specifications
ASF-2 MKII 8. Acoustic Specifications Frequency response: 70Hz- 20kHz (-3dB) • THD: 0,1% (70Hz-20kHz) • Horizontal Polar Pattern at 20 kHz (omni directional) • ©2018, Ambient Recording GmbH... -
Page 9: Physical Specifications
ASF-2 MKII 9. Physical Specifications Dimensions (L / W / H): 47 x 30 x 30 mm incl. thread Weight: approx. 185 g Power consumption: 1,2 mA (3 Volts, typical) Max depth: 10 m Housing material: anodized aluminum... -
Page 10: Warranty & Approvals
For all service, including warranty repair, please send the ASF-2 MKII, along with proof of purchase date to your retailer, or, if not applicable, to: Ambient Recording GmbH Schleissheimer Str. - Page 11 ASF-2 MKII Approvals CE Conformity Statement: Declaration of Conformity According to ISO/IEC Guide 22 Manufacturer’s Name: Ambient Recording GmbH Manufacturer’s Address: Schleissheimer Str. 181 C DE – 80797 Muenchen, Germany declares that the product: ASF-2 MKII is in conformity with:...
- Page 12 MADE IN GERMANY Ambient Recording GmbH Schleissheimer Straße 181 C | D – 80797 Munich | vox +49 89 360 55 10-0 | fax +49 89 651 85 58 www.ambient.de | info@ambient.de © 2018, Ambient Recording GmbH...
