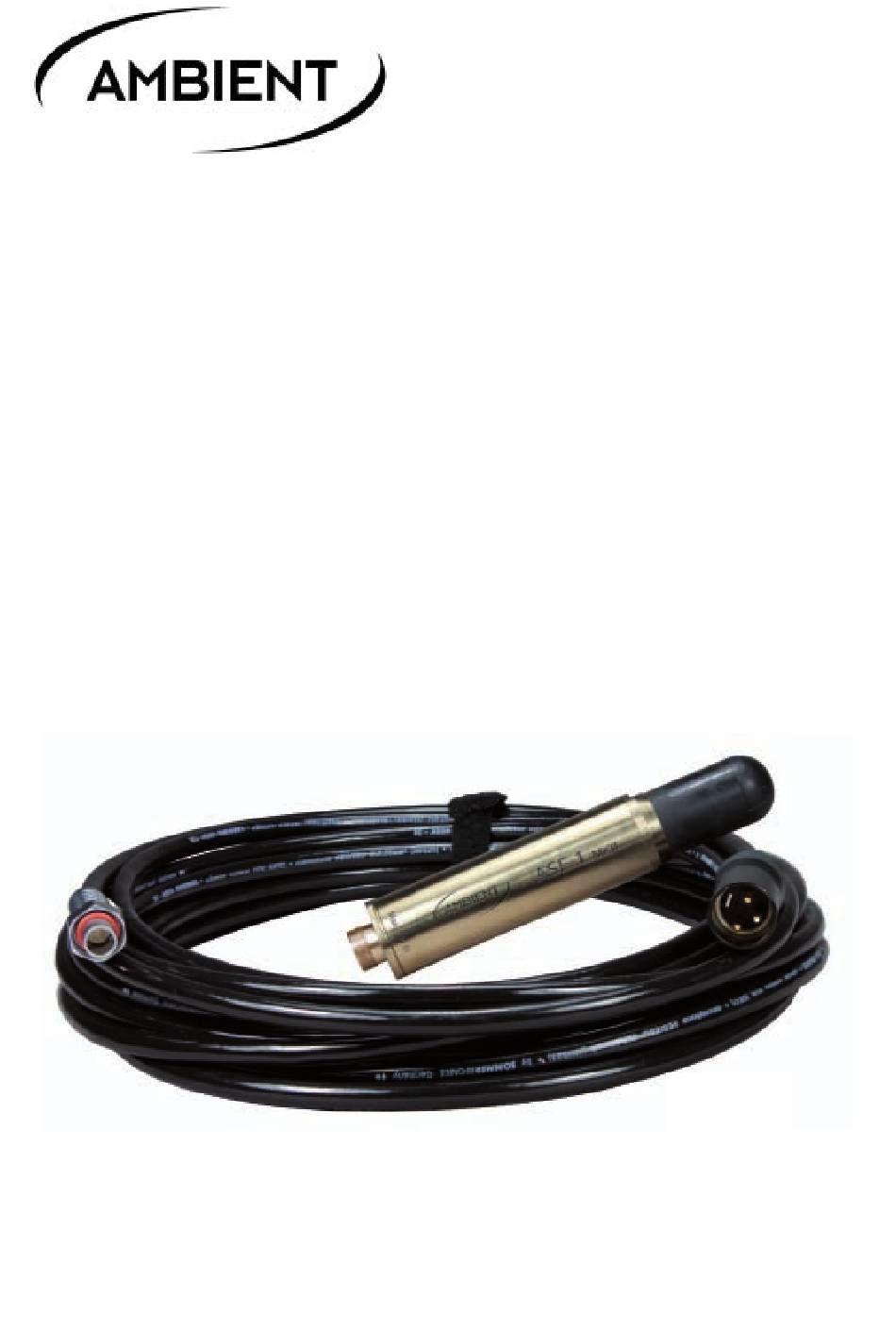

- Page 1 Hydrophone ASF-1 MKII experience quality.
-
Page 2: Table Of Contents
ASF-1 MKII Table of contents page Introduction Package Contents Safety Instructions Powering / Electrolysis Unit Description Underwater Acoustics Acoustic Specifications Physical specifications Available Accessories AHK: Underwater cable DS: Directivity Sphere RS-2: Underwater stereo bar RS-5: Underwater surround rig SD-UW: Underwater housing for Sound Devices 7-series recorder Warranty &... -
Page 3: Introduction
With new award-winning and patent registered techniques they were able to record the first underwater surround recordings ever. With the 15th of August 2010 Sonar Surround became a part of Ambient Recording GmbH. Since the fusion, Ambient continuously developed new underwater products to be able to offer a complete underwater workflow. -
Page 4: Package Contents
This is a natural process which won’t damage the unit nor affect the usability. If the corrosion is starting to dissolve the metal, stop using the ASF-1 MKII immediately and check if the housing is connected to any ground. -
Page 5: Powering / Electrolysis
Electrolysis is a tough problem while working with electrical equipment in a wet environment. To avoid any kind of electrolysis, the metal parts of the ASF-1 MKII are not and should not be connected to the audio ground of the unit. If the ground of the mixer / recorder is connected to the ground of the boat and the audio ground of the hydrophone would be connected to the hydrophone metal housing, the ASF-1 MKII would become the cathodic protection of the ship. -
Page 6: Unit Description
Underwater hydrophone receptacle Aluminum-brass hydrophone body Acoustic sensor with special formulated PUR membrane AHK-II-10, Ambient Recording hydrophone cable; different lengths available Underwater connector, AHS-SX1X0C Please avoid bending the cable at the end of the connector! 10m underwater cable: seawater resistant, low current profile, squirted with conductive... -
Page 7: Underwater Acoustics
ASF-1 MKII Mains Hum When using the ASF-1 MKII indoor, some general details have to be considered: The ASF-1 MKII is working with highly sensitive piezo sensors and therefore also sensitive to • electromagnetic and electrostatic fields. Water picks up electrostatic radiation. Therefore, electronic devices known for electromagnetic •... -
Page 8: Acoustic Specifications
ASF-1 MKII Acoustic Specifications Frequency response: 7Hz- 40kHz (-3dB) THD: 0,1% (10Hz-40kHz) Horizontal Polar Pattern at 40 kHz (omni directional) www.ambient.de/en... -
Page 9: Physical Specifications
Connectors: XLR-3M Neutrik XLR 3-pin male (solder site) pin 1: ground pin 2: audio Hot pin 3: audio Cold AHS-SX1X0C Ambient hydrophone connector (solder site) pin 1: ground pin 2: audio hot pin 3: audio cold ©2018, Ambient Recording GmbH... -
Page 10: Available Accessories
ASF-1 MKII Available Accessories AHK: Underwater cable AHK-II-10: 10m underwater cable AHK-II-20: 20m underwater cable AHK-II-30: 30m underwater cable Different lengths on request DS: Directivity Sphere Gives omni directional hydrophones a directivity close to a super cardioid RS-2: Underwater stereo bar... -
Page 11: Rs-5: Underwater Surround Rig
ASF-1 MKII RS-5: Underwater surround rig SD-UW: Underwater housing for Sound Devices 7-series recorder For more information or sound examples, visit us on http://www.ambient.de/en/products/ambient- recording/underwater.html. ©2018, Ambient Recording GmbH... -
Page 12: 10. Warranty & Approvals
For all service, including warranty repair, please send the ASF-1 MKII, along with proof of purchase date to your retailer, or, if not applicable, to: Ambient Recording GmbH Schleissheimer Str. -
Page 13: Approvals
2011/65/EU of the European Parliament and the Council of the European Union from 8th of July in 2011 for the limited usage of certain dangerous substances in electronic devices. Updated August 2018 Philipp Schwab Ambient Recording GmbH ©2018, Ambient Recording GmbH... - Page 14 MADE IN GERMANY Ambient Recording GmbH Schleissheimer Straße 181 C | DE – 80797 Munich | vox +49 89 360 55 10-0 | fax +49 89 651 85 58 www.ambient.de | info@ambient.de © 2018, Ambient Recording GmbH...
