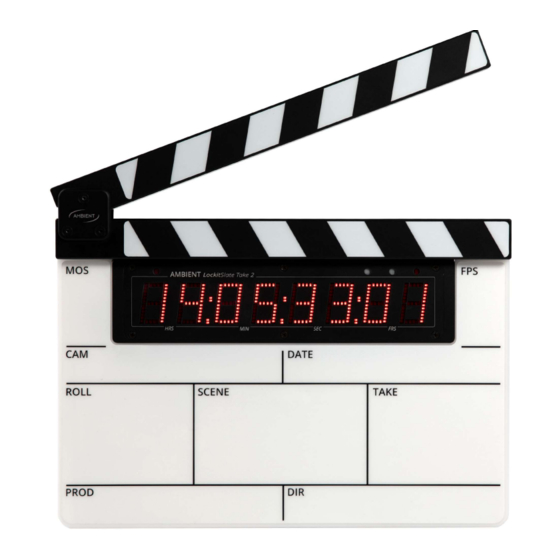

LockitSlate Take 2

ATTENTION:

LockitSlate Take 2 ships with production firmware 6.31 that is not compatible with current

version of LockitToolbox and firmware lower than 6.30 and prior. There are not options or

configurations implemented yet. So, we do recommend not connecting the slate to

LockitToolbox and in particular

TO NOT hit the "Upgrade" button

or your slate will become

inoperable till release of next LockitToolbox.

experience quality.

Table of Contents

Need help?

Do you have a question about the LockitSlate Take 2 and is the answer not in the manual?

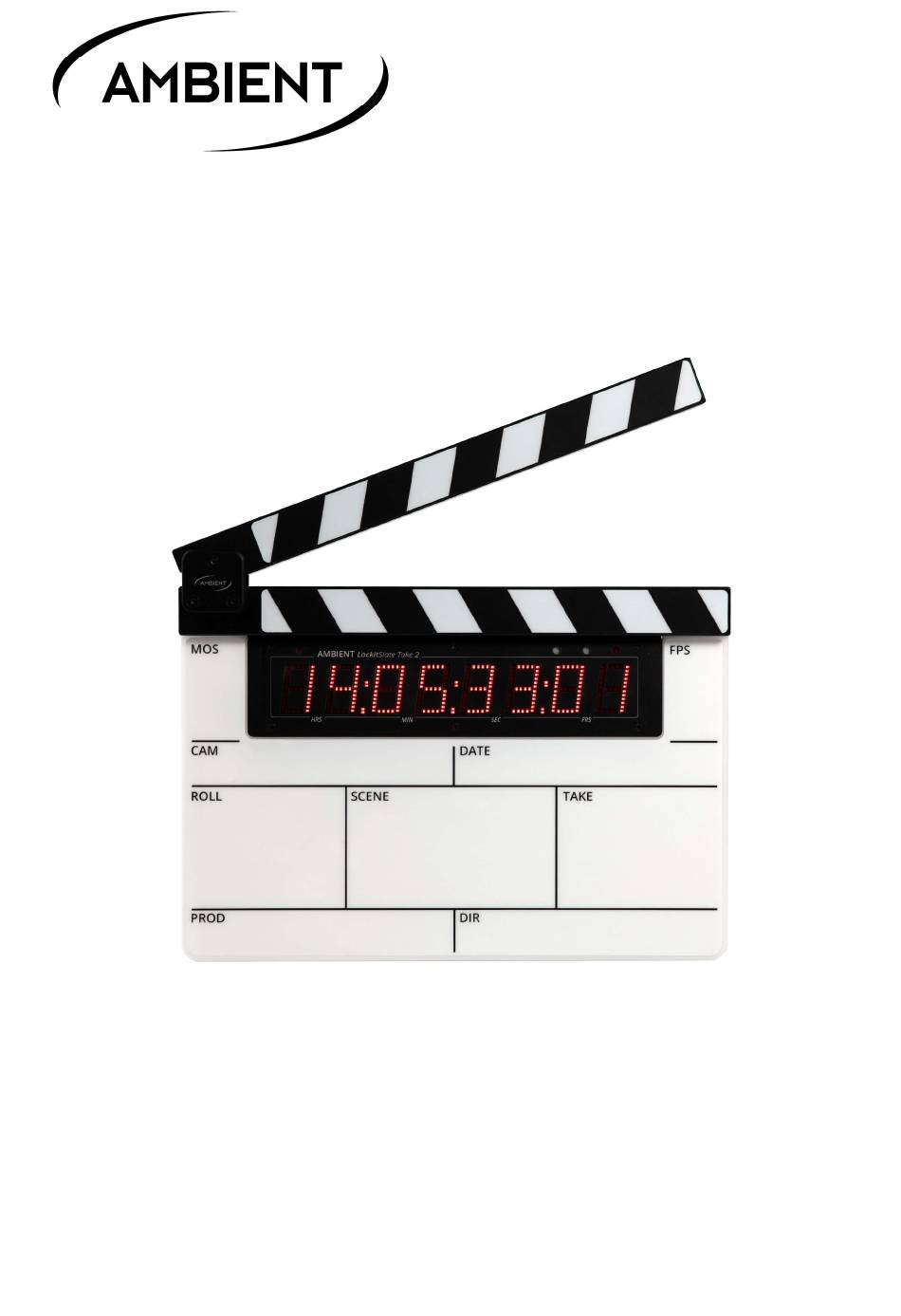

Page 1 LockitSlate Take 2 ATTENTION: LockitSlate Take 2 ships with production firmware 6.31 that is not compatible with current version of LockitToolbox and firmware lower than 6.30 and prior. There are not options or configurations implemented yet. So, we do recommend not connecting the slate to LockitToolbox and in particular TO NOT hit the “Upgrade”...
Page 2 Lighting up Your Slate The LockitSlate Take 2 can be powered by 4 AA cells or USB C. Battery telemetry and circuitry are optimized for NiMH chargeables, but you can run it with alkaline or lithium batteries as well. Applying power over USB will override internal batteries but not charge them.
Page 3 Free Run Mode (C-Jam) Press & hold power until LED lights green. The display will be blank and the LED flashing red, indicating the slate is waiting to be jammed by external timecode source via either ACN, 5 pin connector or MIDI over USB. Due to the highly accurate calibrated reference generator a single jam suffices for day long sub-frame accurate sync amongst Lockit units.
Page 4 Applied settings will be persistent over a reboot until reset or changed. Ambient Recording GmbH Schleissheimer Str. 181 C | DE – 80797 Munich | vox +49 89 360 55 10-0 | fax +49 89 651 85 58 www.ambient.de | info@ambient.de © 2018, Ambient Recording GmbH...
