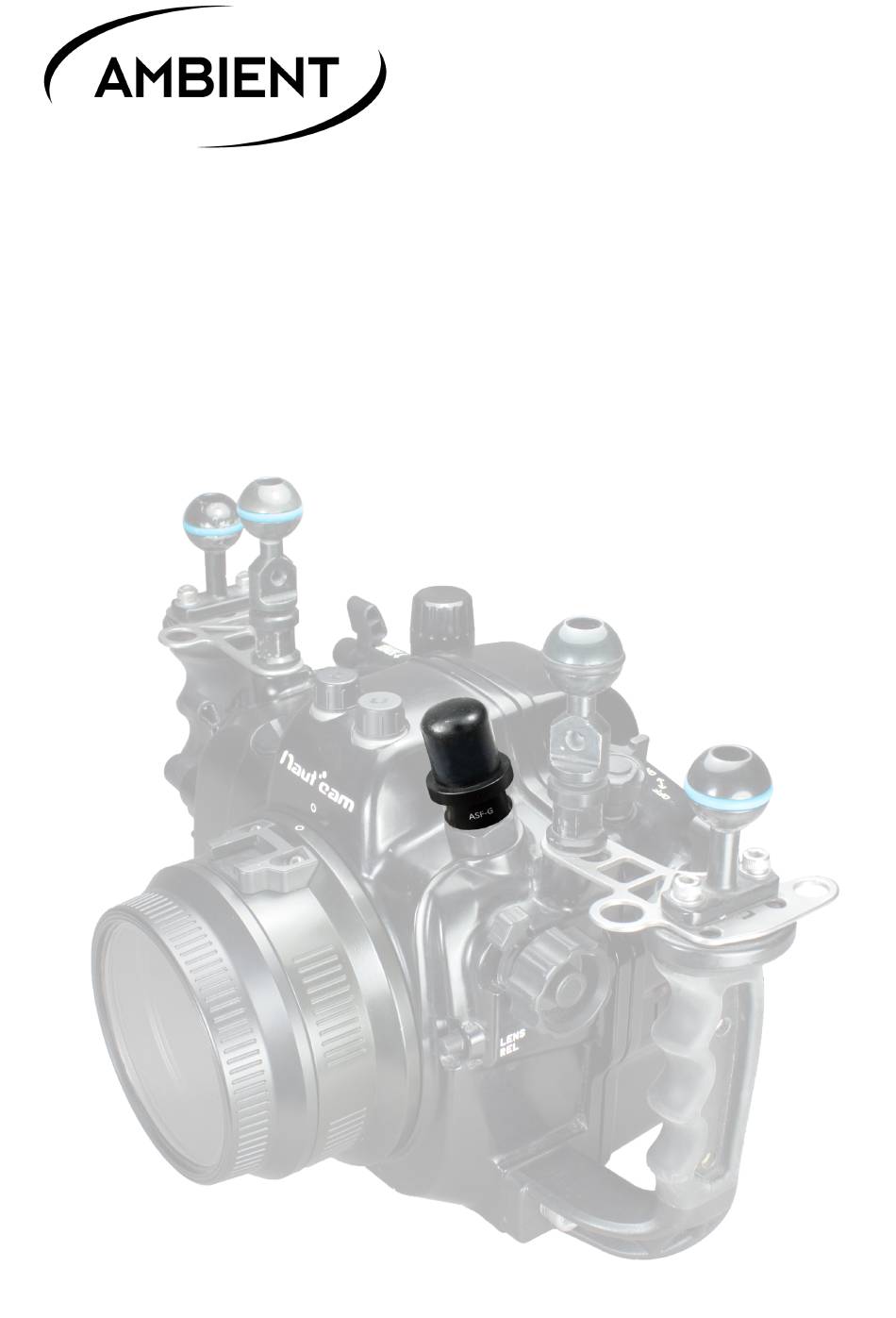

- Page 1 Hydrophone ASF-G experience quality.
-
Page 3: Table Of Contents
ASF-G Table of contents page 1. Introduction 2. Package Contents 3. Safety Instructions 4. Powering / Electrolysis 5. Unit Description 6. Mains Hum 7. Underwater Acoustics 8. Acoustic Specifications 9. Physical Specifications Cable Wiring Available Accessories Warranty & Approvals... -
Page 4: Introduction
The hydrophone is compatible with most professional camera housings, thanks to its M14 thread, and easily mounted on standard bulkhead ports. Due to its compact size, the ASF-G only adds 4 cm to the housing. The ASF-G is made out of high quality Aluminum, anodized and can easily withstand the water pressure of 100m depth. -
Page 5: Package Contents
ASF-G » The ASF-G is available in 3 different kits« 2. Package Contents ASF-G • Hydrophone cable (depending on the kit) • Manual • ASF-G Purchased parts package ASF-G: Enclosure hydrophone (M14) • Cable: ASFG35DC • ASF-G XLR... -
Page 6: Safety Instructions
This is a natural process which won’t damage the unit nor affect the usability. If the corrosion is starting to dissolve the metal, stop using the ASF-G immediately and check if the housing is connected to any ground. (More info in “4. Powering”) Never use the hydrophone within acids or bases. -
Page 7: Powering / Electrolysis
The ASF-G can be powered by various ways, depending on the cables used: ASF-G With ASF-G the kit the hydrophone includes a Y-cable from Binder to TRS for audio, and to a 9V battery connector (ASFG35DC). The ASF-G can be powered with a DC supply between 3V-12V. If, for any reasons it becomes necessary to use a battery different to 9V, avoid connecting with wrong polarity. -
Page 8: Unit Description

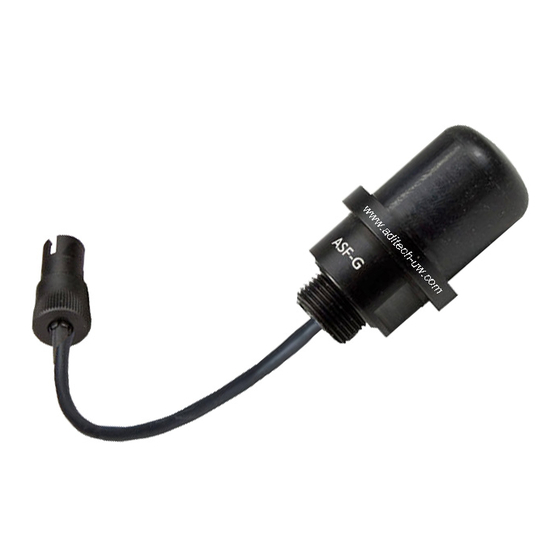

Hydrophone cable with 3-pin male Binder connector ② Anodized aluminuml hydrophone body ③ Acoustic sensor with special formulated NBR membrane ④ ASFG35DC, cable ⑤ ASFGPH, female Binder 3-pin to active XLR3m ⑥ ASFGEPIC, female Binder 3-pin to active TRS 3.5 mm ©2020, Ambient Recording GmbH... -
Page 9: Mains Hum
ASF-G 6. Mains Hum When using the ASF-G indoor, some general details have to be considered: The ASF-G is working with highly sensitive piezo sensors and therefore also sensitive to • electromagnetic and electrostatic fields. Water picks up electrostatic radiation. Therefore, electronic devices known for •... -
Page 10: Acoustic Specifications
47 x 30 x 30 mm incl. thread 39.5 x 30 x 30 mm visible Weight: 50 g Power consumption: 1,2 mA (3 Volts, typical) Max depth: 100 m Housing material: anodized aluminum Encapsulating material: Special formulated NBR ©2020, Ambient Recording GmbH... -
Page 11: Cable Wiring
1: ground pin 2: audio out pin 3: + V ASFG35DC ASF-G adaptor with 3.5 mm right angle plug and 9 V battery connector for unpowered camera inputs No Phantom power required Unbalanced audio wiring Length approx. 20 cm Weight approx. - Page 12 Weight approx. 34 g XLR cap: blue ASFGEPIC ASF-G adaptor with 3.5 mm right angle plug for Red Epic cameras Balanced audio wiring Active cable for 48 V Phantom powering Binder 3-pin to 3.5 mm right with EMP voltage converter Length approx.
-
Page 13: Available Accessories
Binder 3pin female to 1/8" jack and 9v battery DC terminal ASFGPH Hydrophone cable for ASF-G to XLR jack ASF-G active cable; Binder 3pin female to XLR 3 pin male PH 48V microphone input ASFGEPIC Hydrophone cable for ASF-G to 3,5mm with 48V PH ASF-G active cable;... -
Page 14: Warranty & Approvals
For all service, including warranty repair, please send the ASF-G, along with proof of purchase date to your retailer, or, if not applicable, to: Ambient Recording GmbH Schleissheimer Str. - Page 15 ASF-G Approvals CE Conformity Statement: Declaration of Conformity According to ISO/IEC Guide 22 Manufacturer’s Name: Ambient Recording GmbH Manufacturer’s Address: Schleissheimer Str. 181 C DE – 80797 Muenchen, Germany declares that the product: ASF-G is in conformity with:...
- Page 16 MADE IN GERMANY Ambient Recording GmbH Schleissheimer Straße 181 C | 80797 Munich | vox +49 89 360 55 10-0 | fax +49 89 651855 www.ambient.de | info@ambient.de © 2020, Ambient Recording GmbH...
