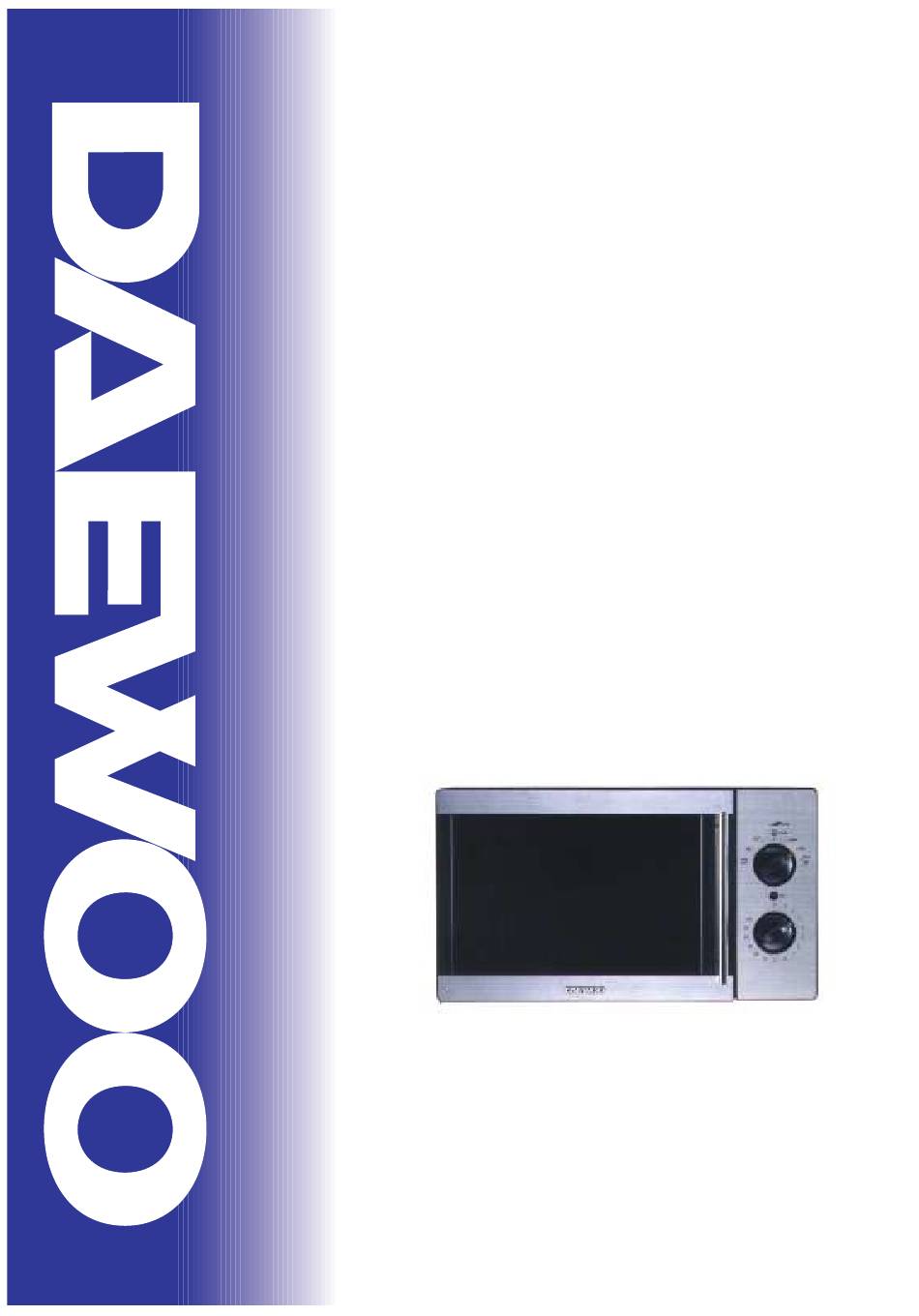

Service Manual
Microwave Oven
KOG-57470S
MODEL :
KOG-57570S
DAEWOO ELECTRONICS CO., LTD
June 2000
http : //svc.dwe.co.kr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOG-57470S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo KOG-57470S

Summary of Contents for Daewoo KOG-57470S

  • Page 1 Service Manual Microwave Oven KOG-57470S MODEL : KOG-57570S DAEWOO ELECTRONICS CO., LTD June 2000 http : //svc.dwe.co.kr...

  • Page 2: Table Of Contents

    PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not operate or allow the oven to be operated with the door open. (b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: (1) Interlock operation, (2) Proper door closing, (3) Seal and sealing surfaces (arcing, wear, and other damage), (4) Damage to or loosening of hinges and latches, (5) Evidence of dropping or abuse.

  • Page 3: Safety And Precautions

    SAFETY AND PRECAUTIONS 1. FOR SAFE OPERATION Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may cause serious bodily injury to the operator. IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE. (Only a trained service personnel should make repairs.) (1) A broken door hinge.

  • Page 4: Specifications

    SPECIFICATIONS MODEL KOG-57470S/57570S POWER SUPPLY 230V ~ 50Hz, SINGLE PHASE WITH EARTHING POWER CON- MICROWAVE 1,200 W SUMPTION GRILL 1,050 W COMBINATION 2,200 W MICROWAVE ENERGY OUTPUT 800 W MICROWAVE FREQUENCY 2,450 MHz OUTSIDE DIMENSIONS(W X H X D) 465 x 279 x 360 mm (18.3 x 11.0 x 14.2 in) CAVITY DIMENSIONS (W X H X D) 290 x 208 x 306 mm (11.4 x 8.2 x 12.0 in)

  • Page 5: External View

    EXTERNAL VIEW 1. OUTER DIMENSION 2. FEATURE DIAGRAM 1) Door seal - Door seal maintains the microwave energy within the oven cavity and prevents microwave leakage. 2) Cover Heater 3) Heating Element 4) Oven cavity 5) Safety interlock system 6) Knob V.P.C - Used to select microwave poer level. 7) Knob timer - Used in setting cooking time for all functions.

  • Page 6: Installation

    This appliance is supplied with cable of special type, which, if samaged, must be repaired with cable of same type. Such a cable can be purchased from DAEWOO and must be installed by a Qualified Person. 6. Examine the oven after unpacking for any damage such as: A misaligned door, broken door or a dent in cavity.

  • Page 7: Operations And Functions

    OPERATIONS AND FUNCTIONS 1. Connect the main lead to an electrical outlet. 2. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray must always be in place during cooking. 3.

  • Page 8: Disassembly And Assembly

    DISASSEMBLY AND ASSEMBLY Cautions to be observed when trouble shooting. Unlike many other appliances, the microwave oven is high-voltage, high-current equipment. It is completely safety during normal operation. However, carelessness in servicing the oven can result in an electric shock or possible danger from a short circuit. You are asked to observe the following precautions carefully.
  • Page 9 3) Reverse the above for reassembly. NOTE : After replacing the door assembly, perform a check of correct alignment with the hinge and cavity front plate. 3. To remove door parts. DOOR ASSEMBLY KOG-57470S : 3511712140 REF NO. PART CODE PART NAME DESCRIPTION Q’...
  • Page 10 DISASSEMBLY AND ASSEMBLY A01 A02 DOOR ASSEMBLY KOG-57570S : 3511712150 REF NO. PART CODE PART NAME DESCRIPTION Q'TY REMARK 3512203850 FRAME DOOR ABS SG-175, SG-0760D 3517005620 BARRIER-SCREEN *O TEMP GLASS T3.2 MIRROR 3515204100 STOPPER HINGE *T AS KOR-63150S 3511706120 DOOR PAINTING AS KOR-634R0S 3517002800 BARRIER-SCREEN *I...
  • Page 11 DISASSEMBLY AND ASSEMBLY (1) Remove the gasket door from door weld as. (2) Remove the barrier screen inner from door weld as. (3) Remove the door frame from door weld as. (4) Remove the stopper hinge top from door weld as. (5) Remove the spring and the hook.
  • Page 12 DISASSEMBLY AND ASSEMBLY 5. To remove control panel parts. CONTROL-PANEL ASSEMBLY KOG-57470S : 3516720350 KOG-57570S : 3516720360 REF NO. PART CODE PART NAME DESCRIPTION Q'TY REMARK 3513402650 KNOB VPC ABS XR-401, H-2938 KOG-57470S 3513405450 KPG-57570S 3511603930 DECORATOR C-PANEL STS T0.6...
  • Page 13 DISASSEMBLY AND ASSEMBLY 6. To remove high voltage capacitor. 1) Remove a screw which secure the grounding ring terminal of the H.V. diode and the capacitor holder. 2) Remove the H.V.diode from the capacitor holder. 3) Reverse the above steps for reassembly. High voltage circuit wiring 7.
  • Page 14 DISASSEMBLY AND ASSEMBLY 8. To remove wind guide assembly. 1) Remove a screw for earthing. 2) Remove the noise filter from the wind guide. 3) Remove a screw which secure the wind guide assembly. 4) Draw forward the wind guide assembly. 5) Pull the fan from the motor shaft.
  • Page 15 DISASSEMBLY AND ASSEMBLY 10. To remove tray motor. (1) Remove the coupler in the cavity. (2) Turn the set upside down. (3) Cut the tray motor cover part from the base plate. (4) Remove the tray motor cover. (5) Remove a screw which secure the tray motor. (6) Remove the tray motor.
  • Page 16 DISASSEMBLY AND ASSEMBLY 12. To remove heater parts. HEATER TOP ASSEMBLY : 3512803600 REF NO. PART CODE PART NAME DESCRIPTION Q'TY REMARK 3512765100 HARNESS HEATER KOC-970T1S TEFLON 7112401011 SCREW TAPPING T1 TRS 4X10 MFZN 3510607800 BRACKET HEATER *T SBHG T0.5 3512803700 HEATER MIRACLON 115V AC 500W...

  • Page 17: Interlock Mechanism And Adjustment

    INTERLOCK MECHANISM AND ADJUSTMENT The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave. (1) Primary interlock switch When the door is closed, the hook locks the oven door.
  • Page 18 TROUBLE SHOOTING GUIDE Following the procedure below to check if the oven is defective or not. 1. Check grounding before trouble checking. 2. Be careful of the high voltage circuit. 3. Discharge the high voltage capacitor. 4. When checking the continuity of the switches, fuse or high voltage transformer, disconnect one lead wire from these parts and check continuity with the AC plug removed.

  • Page 19: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Does the fan motor work when you shut the door and turn the timer? Does the oven lamp light? Replace or repair oven lamp, Does the turntable turn? turntable motor. Normal reading should be approx. 0 If microwave do not Check continuity No Continuity Continuity...

  • Page 20: Measurement And Test

    MEASUREMENT AND TEST 1. MEASUREMENT OF THE MICROWAVE POWER OUTPUT Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water exposed to the microwave as directed below. PROCEDURE 1. Microwave power output measurement is made with the microwave oven supplied at rated voltage and operated at its maximum microwave power setting with a load of 1000 5cc of potable water.

  • Page 21: Microwave Radiation Test

    MEASUREMENT AND TEST 2. MICROWAVE RADIATION TEST CAUTION : 1. Make sure to check the microwave leakage before and after repair of adjustment. 2. Always start measuring of an unknown field to assure safety for operating personnel from microwave energy. 3.

  • Page 22: Component Test Procedure

    MEASUREMENT AND TEST 3. COMPONENT TEST PROCEDURE High voltage is present at the high voltage terminal of the high voltage transformer during any cooking cycle. It is neither necessary nor advisable to attempt measurement of the high voltage. Before touching any oven components or wiring, always unplug the oven from its power source and discharge the capacitor. 1.

  • Page 23: Wiring Diagram

    WIRING DIAGRAM...

  • Page 24: Exploded View And Parts List

    EXPLODED VIEW AND PARTS LIST 1. DOOR ASSEMBLY Refer to Disassembly and assembly. 2. CONTROL PANEL ASSEMBLY Refer to Disassembly and assembly. 3. TOTAL ASSEMBLY...
  • Page 25 EXPLODED VIEW AND PARTS LIST REF NO. PART CODE PART NAME DESCRIPTION SUPPLY REMARK DOOR AS Refer to Disassembly and Assembly CONTROL-PANEL AS 3512803600 HEATER *T AS KOG-57350S 3510801310 CABINET 7112401011 SCREW TAPPING T1 TRS 4*10 MFZN 3516111900 CAVITY AS KOG-57350S 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN...
  • Page 26 EXPLODED VIEW AND PARTS LIST REF NO. PART CODE PART NAME DESCRIPTION SUPPLY REMARK 3513601600 LAMP BL 240V 25W T25 C7A H187 7121400611 SCREW TAPPING T2S PAN 4X6 MFZN 3966310100 MOTOR SYNCRO 220V 2.5W GM-16-24FD12 3518905300 THERMOSTAT OFF:75 ON:65 H #187 NB 3513003400 HOLDER THERMOSTAT 7272400811 SCREW TAPTITE TT3 TRS 4X8 MFZN...
  • Page 27 DAEWOO ELECTRONICS CO., LTD 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX : DWELEC K28177-8 CABLE : “ DAEWOOELEC” FAX : 02)360-7877 TEL : 02)360-7804 E-mail : G7F00E@web.dwe.co.kr PRINTED DATE : Jun. 2000 SN.R5747570S1...
