M240 Series
User Manual

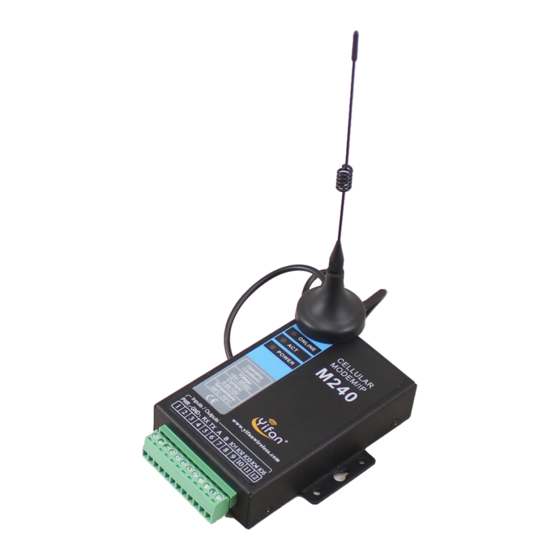

M240 Series modem User Manual
M240 Series Cellular Modem 1 x RS232/RS485, 5 x I/O
Model No.
M240-H
M240-EV
M240-E
M240-G
Documentation No.
Product Name：
The user manual is suitable for the following models:
3G HSPA+/HSUPA/WCDMA/UMTS Modem
Yifan Industry Limited
Add：Room1603, No.79, WuShiPu Road, HuLi District,
XiaMen,China
Tel：+86 592-5222813
Fax:+86 592-6101492
http://www.yifanwireless.com
Product Version
Description
CDMA2000 EVDO Modem
EDGE Modem
GSM/GPRS Modem
Zip Code:361000
Page
Total:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M240 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Yifan M240 Series

Summary of Contents for Yifan M240 Series

  • Page 1 M240 Series User Manual Product Name： Total: M240 Series modem User Manual The user manual is suitable for the following models: M240 Series Cellular Modem 1 x RS232/RS485, 5 x I/O Model No. Description M240-H 3G HSPA+/HSUPA/WCDMA/UMTS Modem M240-EV CDMA2000 EVDO Modem...
  • Page 2 Copyright Notice All contents in the files are protected by copyright law, and all copyrights are reserved by Yifan Industry Limited. Without written permission, all commercial use of the files from Yifan are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
  • Page 3 User Manual Files Revised Record Date Version Remark Author Yifan Industry Co., Ltd. Page 3 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 4 User Manual Yifan Industry Co., Ltd. Page 4 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 5: Table Of Contents

    3.5.2 IP MODEM Settings ....................19 3.5.3 Other Settings......................24 3.5.4 Scheduled Power ON/OFF Setting ................27 3.6 Functions...........................37 3.7 Work State Switch......................38 Appendix............................39 Yifan Industry Co., Ltd. Page 5 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 6: Chapter 1 Brief Introduction Of Product

    Chapter 1 Brief Introduction of Product 1.1 General M240 series IP MODEM is a kind of cellular terminal device that provides data transfer by public cellular network. It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It...

  • Page 7: Working Principle

    SRAM& RTC Module FLASH WDT Module Indicator Lights Antenna Cellular RS232/RS485/RS422 Module Module SIM/UIM Interface Power Module User Interface Yifan Industry Co., Ltd. Page 7 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 8: Specifications

    FLASH 512KB(Extendable) SRAM 256KB(Extendable) Interface Type Item Content Serial 1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection Yifan Industry Co., Ltd. Page 8 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 9 Housing Iron, providing IP30 protection Dimensions 91x58.5x22 mm Weight 210g Environmental Limits Item Content Operating -25~+65ºC（-13~+149℉） Temperature Extended -30~+75ºC（-22~+167℉） Yifan Industry Co., Ltd. Page 9 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 10 User Manual Operating Temperature Storage -40~+85ºC（-40~+185℉） Temperature Operating 95% ( Non-condensing) Humidity Yifan Industry Co., Ltd. Page 10 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 11: Chapter 2 Installation Introduction

    Manual CD Certification card Maintenance card Table 2-1 Encasement List 2.3 Installation and Cable Connection : (unit: mm) Dimension Yifan Industry Co., Ltd. Page 11 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 12 RS232 RX (TTL logic level) GPIO Reserved compatible CTS and RS232 TX (TTL logic level) GPIO Reserved compatible DCD Yifan Industry Co., Ltd. Page 12 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 13 Corresponding DB9-M Pin Number Brown Pin 2 Blue Pin 3 Black Pin 5 RS485 Cable： Cable Color Signal definition RS485(A) Black RS485(B) Yifan Industry Co., Ltd. Page 13 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 14: Power

    BLINK Data is communicating No data Online IP MODEM has logged on network IP MODEM hasn’t logged on network Yifan Industry Co., Ltd. Page 14 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 15: Chapter 3 Configuration

    If the text is “Open”, you should open the port first. When the port opened, the “Output Info” column will display “Port(COM1) Has Opened，Please Re-Power the IP MODEM, Yifan Industry Co., Ltd. Page 15 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...

  • Page 16: Re-Power Ip Modem

    Main and Backup: IP MODEM always tries to connect with the Main DSC. If fails to connect with Main DSC, it will connect with Backup DSC at once Yifan Industry Co., Ltd. Page 16 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 17 AT+IPSEC=xxx xxx: The IP address or domain name AT command of the Backup DSC port AT+PTSEC=xxx xxx: The port value Yifan Industry Co., Ltd. Page 17 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 18 AT command of Main Center DNS server: AT+DNSSVR=aaa.bbb.ccc.ddd aaa.bbb.ccc.ddd: The DNS server IP address(must be IP address）. AT command of Backup Center DNS server: Yifan Industry Co., Ltd. Page 18 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...

  • Page 19: Ip Modem Settings

    UDP connection. TCST：User can set custom register and heartbeat string, Data transmission with TCP protocol. AT command: AT+MODE=xxxx Yifan Industry Co., Ltd. Page 19 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 20 Note: Only there is some problem to the IP MODEM, It’s necessary to set this value as 2, In normal applications, this value should set to 0 or 1, the default value is 1. Yifan Industry Co., Ltd. Page 20 of 41...
  • Page 21 AT+IPR=xxx xxx : one of the above baudrate ◆ Auto Back To Main Server 0 --- No 1 ---Yes Yifan Industry Co., Ltd. Page 21 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 22 IP MODEM will send the serial data to the center when two bytes transmit time interval larger than this item value. AT Command: AT+BYTEINT=xxx Yifan Industry Co., Ltd. Page 22 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 23 Retry Time, It will sleep “Reconnect Time Interval” time, then start next retry. “Connect Retry Times” AT Command: AT+RETRY=xxx Yifan Industry Co., Ltd. Page 23 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...

  • Page 24: Other Settings

    Username: username to login the ISP network. Password: password to login the ISP network Call Center: the call center phone number Yifan Industry Co., Ltd. Page 24 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 25 Time interval sent heartbeat packet. (unit is second) AT Command: AT+POLLTIME=xxx xxx: heartbeat packet time interval ◆ Call Trigger Phone No Yifan Industry Co., Ltd. Page 25 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 26 AT Command of data trigger off password: AT+DOFFPSWD=xxx xxx :data trigger off password ◆ TCP MTU The maximum transmission unit of TCP packet Yifan Industry Co., Ltd. Page 26 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...

  • Page 27: Scheduled Power On/Off Setting

    For example: If the current time is at 12:30 on September 1st,2010, Wednesday, the corresponding at command: AT+EXCCLK="2010/09/01,12:30:00",3 u Power On/Off Setting Yifan Industry Co., Ltd. Page 27 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 28 I -- Interval. Set the time interval. P -- Power always on. C -- Count down. Set the count down length. 1. Disable Yifan Industry Co., Ltd. Page 28 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 29 For example: IP Modem power on at 12:30:00, and power off at 13:30:00 on August 1st,2010 AT+EXCAL5=OT,"2010/08/01,12:30:00",3600 3. Power on per hour Yifan Industry Co., Ltd. Page 29 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 30 IP Modem power on at the 30th minute in every hour, and power off 10 minutes later. AT+EXCAL1=OH,"00:30:00",600 4.Power on per day AT Command: AT+EXCALx=OD,<strTime>,<holdTime> <strTime>: Format "12:30:00" Yifan Industry Co., Ltd. Page 30 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 31 IP Modem power on at 09:00:00 on every Wednesday and Friday, and power off 1 hour later. AT+EXCAL1=OW,35,"09:00:00",3600 The “35” replace to Wednesday and Friday. 6.Power on per month Yifan Industry Co., Ltd. Page 31 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 32 For example: IP Modem power on at 09:00:00 on the 28th every month,and power off 1 hour later. AT+EXCAL3=OM,28,"09:00:00",3600 7.Power on with time interval Yifan Industry Co., Ltd. Page 32 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 33 IP Modem online interval every 10 minute, and offline 120 seconds later. AT+EXCAL1=OP,10,120 Note: IP Modem not power off in this mode, it is standby. 9.Power off at one time Yifan Industry Co., Ltd. Page 33 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 34 User Manual AT Command: AT+EXCALx=ST,<strTime> 10.Power off per hour AT Command: AT+EXCALx=SH,<strTime> 11.Power off per day Yifan Industry Co., Ltd. Page 34 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 35 AT Command: AT+EXCALx=SD,<strTime> 12.Power off at the same time in every week AT Command: AT+EXCALx=SW,<week>,<strTime> 13.Power off per month Yifan Industry Co., Ltd. Page 35 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 36 For example: IP Modem power off 600 seconds later: AT+EXCAL1=SC,60 Note: If the <aftertime> is 0,the IP Modem will power off immediately. Yifan Industry Co., Ltd. Page 36 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...

  • Page 37: Functions

    Save the output info to a file ◆ Save Config Save the current settings to a file, you can restore it from this file later Yifan Industry Co., Ltd. Page 37 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...

  • Page 38: Work State Switch

    This state is used as a common serial communication tool Reboot Device, Enter Communication State: This function button is used to reboot IP MODEM and make the software switch to Communication state Yifan Industry Co., Ltd. Page 38 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...

  • Page 39: Appendix

    3. Choose the correct COM port which connect to IP MODEM, choose “OK” 4. Configure the serial port parameters as following, choose “OK” Bits per second: 115200 Yifan Industry Co., Ltd. Page 39 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 40 5. Complete Hyper Terminal operation, It runs as following Re-power IP MODEM, put mouse focus on the Hyper Terminal and press “s” key continuously until IP MODEM enter configure state as following Yifan Industry Co., Ltd. Page 40 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn...
  • Page 41 User Manual 7. IP MODEM has entered configure state, you can configure the parameters through AT command. Yifan Industry Co., Ltd. Page 41 of 41 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
