M230 Series
User Manual
M230 Series modem User Manual
Model No.
M230-H
M230-EV
M230-E
M230-G
Documentation No.
Product Name：M230 Series modem
The user manual is suitable for the following models:
M230 Series Cellular Modem 1 x RS232/RS485
3G HSPA+/HSUPA/WCDMA/UMTS Modem
Yifan Industry Limited
Add：Room1603, No.79, WuShiPu Road, HuLi District,
XiaMen,China
Tel：+86 592-5222813
Fax:+86 592-6101492
http://www.yifanwireless.com
Product Version
Description
CDMA2000 EVDO Modem
EDGE Modem
GSM/GPRS Modem
Zip Code:361000
Page
Total:30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 230 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Yifan 230 Series

Summary of Contents for Yifan 230 Series

  • Page 1 M230 Series Cellular Modem 1 x RS232/RS485 Model No. Description M230-H 3G HSPA+/HSUPA/WCDMA/UMTS Modem M230-EV CDMA2000 EVDO Modem M230-E EDGE Modem M230-G GSM/GPRS Modem Yifan Industry Limited Add：Room1603, No.79, WuShiPu Road, HuLi District, XiaMen,China Zip Code:361000 Tel：+86 592-5222813 Fax:+86 592-6101492 http://www.yifanwireless.com...
  • Page 2 Copyright Notice All contents in the files are protected by copyright law, and all copyrights are reserved by Yifan Industry Limited. Without written permission, all commercial use of the files from Yifan are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
  • Page 3 M230 Series User Manual Files Revised Record Date Version Remark Author Yifan Industry Co., Ltd. Page 3 of 30 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...
  • Page 4 M230 Series User Manual Yifan Industry Co., Ltd. Page 4 of 30 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 5: Table Of Contents

    3.5.1 Data Service Center Settings..................15 3.5.2 IP MODEM Settings ....................18 3.5.3 Other Settings......................23 3.6 Functions...........................26 3.7 Work State Switch......................27 Appendix............................28 Yifan Industry Co., Ltd. Page 5 of 30 Tel: +86 592 5222813 Fax:+86 592 6101492 Email: admin@yifanwireless.com , admin@yi-fan.com.cn Website: www.yifanwireless.com...

  • Page 6: Chapter 1 Brief Introduction Of Product

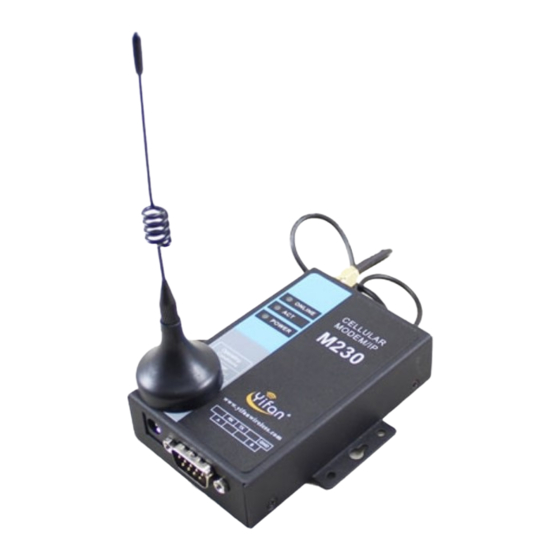

    M230 Series User Manual Chapter 1 Brief Introduction of Product 1.1 General M230 series IP MODEM is a kind of cellular terminal device that provides data transfer function by public cellular network. It adopts high-powered industrial 16/32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration.

  • Page 7: Working Principle

    M230 Series User Manual Standard and Convenience u Support standard RS232 and RS485(or RS422) port that can connect to serial devices directly u Support intellectual mode, enter into communication state automatically when powered u Provide management software for remote management u Support several work modes u Convenient configuration and maintenance interface High-performance...
  • Page 8 M230 Series User Manual M230-E EDGE IP MODEM 236.8Kbps GSM850/900： <-106 GSM850/900/1800/1900MHz <33dBm GPRS/EDGE Class 12 GSM1800/1900： <30dBm M230-H WCDMA&HSDPA&HSUPA IP MODEM <24dBm <-109 UMTS/WCDMA/HSDPA/HSUPA HSUPA:5.76Mbps 850/1900/2100MHz, (Upload speed) 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz HSDPA:7.2Mbps GPRS/EDGE CLASS 12 (Download speed) UMTS:384Kbps (DL/UL) M230-EV CDMA2000 1X EVDO IP MODEM <23dBm <-104 CDMA2000 1X EVDO Rev A...
  • Page 9 M230 Series User Manual Power Input Item Content Standard Power DC 12V/0.5A Power Range DC 5~35V Consumption <250mA (12V) Physical Characteristics Item Content Housing Iron, providing IP30 protection Dimensions 91x58.5x22 mm Weight 205g Environmental Limits Item Content Operating -25~+65ºC（-13~+149℉） Temperature Extended -35~+75ºC（-31~+167℉）...

  • Page 10: Chapter 2 Installation Introduction

    M230 Series User Manual Chapter 2 Installation Introduction 2.1 General The IP MODEM must be installed correctly to make it work properly. Warning: Forbid to install the IP MODEM when powered! 2.2 Encasement List Name Quantity Remark IP MODEM host Antenna Power adapter RS232 data cable...
  • Page 11 M230 Series User Manual Ф3 Ф5 58.5 Installation of SIM/UIM card: Firstly power off the IP MODEM, and press the out button of the SIM/UIM card outlet with a needle object. Then the SIM/UIM card sheath will flick out at once. Put SIM/UIM card into the card sheath (Pay attention to put the side which has metal point outside), and insert card sheath back to the SIM/UIM card outlet.

  • Page 12: Power

    M230 Series User Manual The signal connection of the RS485 data cable is as follows: DB9F A (RED) B (BLACK) RS485 data cable 2.4 Power The power range of the IP MODEM is DC 5 Warning: When we use other power, we should make sure that the power can supply power above 4W.

  • Page 13: Chapter 3 Configuration

    M230 Series User Manual Chapter 3 Configuration 3.1 Configuration Connection Before configuration, it’s necessary to connect the IP MODEM with the configure PC by the shipped RS232 or RS232-485 conversion cable as following. 3.2 Configuration Introduction There are two ways to configure the IP MODEM: Configuration software tool: All the settings are configured through the shipped software tool.

  • Page 14: Run The Configure Tool: Ip Modem Configure.exe

    M230 Series User Manual 3.3 Run the configure Tool: IP Modem Configure.exe The “Serial Parameters” column shows the current serial port settings. To configure IP MODEM, please choose the correct serial port which connects to IP MODEM, and the baudrate is 115200 with no parity, then open the serial port.

  • Page 15: Re-Power Ip Modem

    M230 Series User Manual 3.4 Re-power IP MODEM After Re-power IP MODEM, The configure tool will make it enter configure state. At the same time, the software will load current settings from IP MODEM and displays on the right configure columns. It’s now ready to configure. 3.5 Configuration 3.5.1 Data Service Center Settings Settings on this page are the parameters related to Data Service Center(DSC).
  • Page 16 M230 Series User Manual If the Data Center Number is 1, IP MODEM work in Main and Backup DSC method. When “Data Center Number” is greater than 1, IP MODEM works in Multi Data Service Center method AT command: AT+SVRCNT=x x: Data Service Center number Note: every AT command is terminated with a enter character.
  • Page 17 M230 Series User Manual When “Data Center Number” is greater than 1, this setting is valid. For example，setting the “Data Center Number” as 3, Main Center, 2nd Center, 3rd Center work as these three DSC AT Command of the 2~5 DSC IP address or domain name AT+IPADn=xxx n is 1~4 correspond to center 2~5 xxx: The IP address or domain name...

  • Page 18: Ip Modem Settings

    M230 Series User Manual ◆ Center 2~5 DNS Server When the IP MODEM work in Multi Data Service Center method and the centers use domain name, 2~5 DNS server is used to resolve center 2~5 correspondingly. AT command of 2~5 DNS Server AT+DNSSVRn=aaa.bbb.ccc.ddd n is 1~4 correspond to center 2~5 DNS server.
  • Page 19 M230 Series User Manual xxxx: one of the above workmode ◆ Trigger Type Normally, IP MODEM always keeps online and always be ready for data transmission. But in some circumstances, it’s important to reduce wireless data flow. To realize this function, the software can makes IP MODEM into sleep state in idle time.
  • Page 20 M230 Series User Manual 8N1 --- 8 Databit, No parity, 1 Stopbit 8E1 --- 8 Databit, Even parity, 1 Stopbit 8O1 --- 8 Databit, Odd parity, 1 Stopbit AT Command: AT+SERMODE=xxx xxx: one of the above serial mode ◆ Communication Baudrate --- 110 bps --- 300 bps --- 600 bps...
  • Page 21 M230 Series User Manual will switch to backup center when main center have problems. If this item is set to 1 , IP MODEM will check whether the main center work fine timely. When it detects the main server work fine, it will return back to the main server at once.
  • Page 22 M230 Series User Manual ◆ Custom Register String This item is only valid when the WorkMode is TCST. It’s the self defined register string. It can be empty, the maximum length is 70 bytes. AT Command: AT+CONNRGST=xxx xxx：self defined register string ◆...

  • Page 23: Other Settings

    M230 Series User Manual AT+RDLWT=xxx xxx: the sleep time until next retry. ◆ Transfer meanning 0 --- Yes, enable transfer meaning 1 --- No, disable transfer meaning This item is only valid when the WorkMode is PROT. If this item is set to 0, IP MODEM will transfer meaning to 0xfd and 0xfe.
  • Page 24 M230 Series User Manual xxx： username AT Command of Password: AT+PASSWORD=xxx xxx： password AT Command of Call Center: AT+CENT=xxx xxx: call center phone number of ISP ◆ SMS Center Your local SMS center number AT Command: AT+SMSC=xxx xxx: your local SMS center number ◆...
  • Page 25 M230 Series User Manual xxx : trigger phone number ◆ SMS Trigger Password This item is valid only when the “Trigger Type” is SMSD or MIXD, IP MODEM will keeps in idle state until it receives the trigger short message, Then it will connect to the center. AT Command: AT+SMSDPSWD=xxx xxx : SMS content to trigger IP MODEM online...

  • Page 26: Functions

    M230 Series User Manual ◆ Multi Center Reconnect Interval This item is valid only when the “Data Center Number” is greater than 1. When one of the configured data center lost connection, IP MODEM will try to reconnect after the configured reconnect interval AT Command: AT+MCONTIME=xxx...

  • Page 27: Work State Switch

    M230 Series User Manual ◆ Save Output Save the output info to a file ◆ Save Config Save the current settings to a file, you can restore it from this file later ◆ Restore Config Restore settings from a previous saved configure file 3.7 Work State Switch This tool can work in two states, “Config”...

  • Page 28: Appendix

    M230 Series User Manual Appendix The following steps describe how to make IP MODEM enter configure state with the Windows XP Hyper Terminal. 1. Press “Start”à”Programs”à”Accessories”à”Communications”à”Hyper Terminal” 2. Input connection name, choose “OK” 3. Choose the correct COM port which connect to IP MODEM, choose “OK” 4.
  • Page 29 M230 Series User Manual Stop bits: 1 Flow control: None 5. Complete Hyper Terminal operation, It runs as following Re-power IP MODEM, put mouse focus on the Hyper Terminal and press “s” key continuously until IP MODEM enter configure state as following...
  • Page 30 M230 Series User Manual 7. IP MODEM has entered configure state, you can configure the parameters through AT command.
