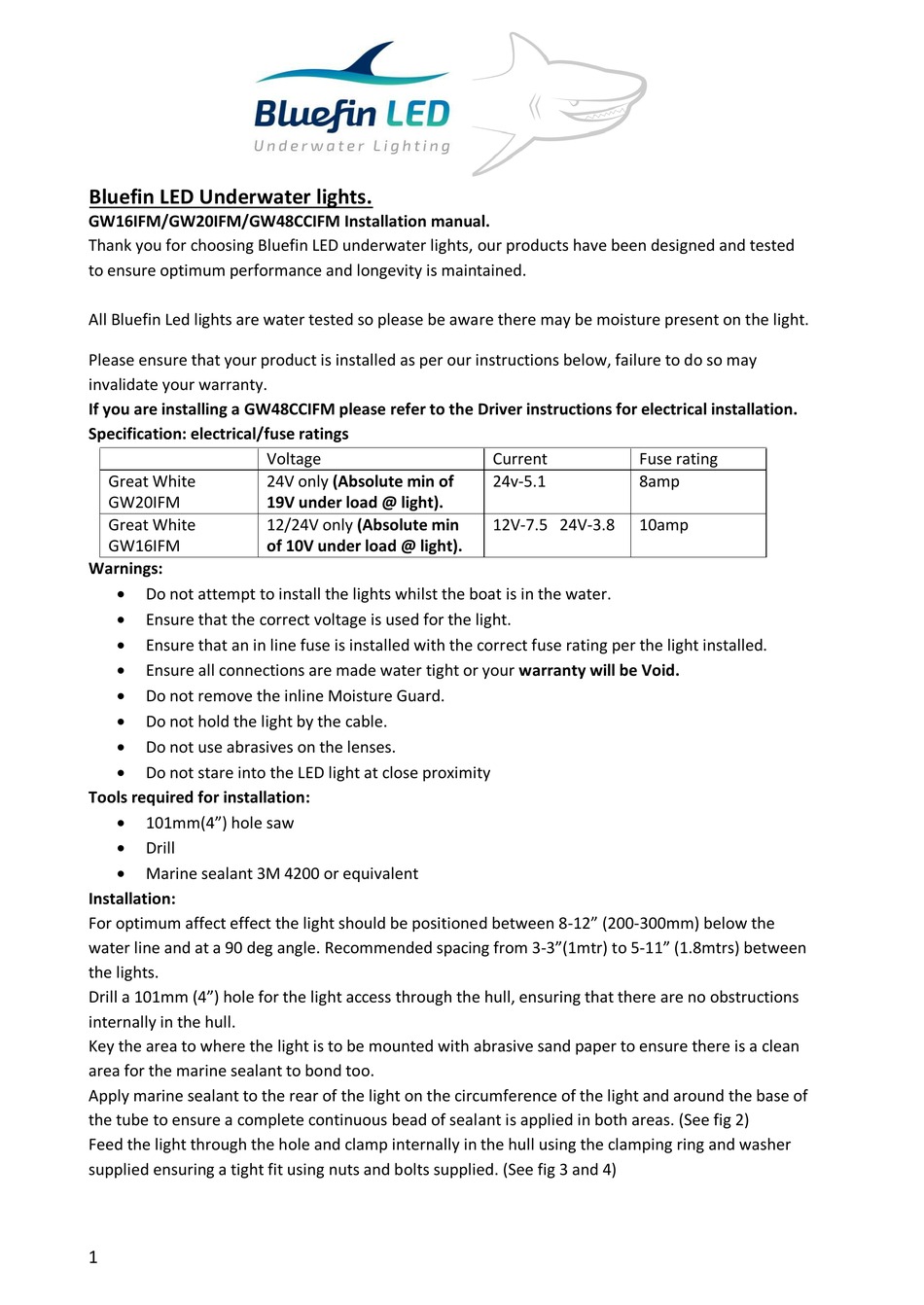

Bluefin LED GW16IFM Installation Manual

Bluefin LED Underwater lights.
GW16IFM/GW20IFM/GW48CCIFM Installation manual.
Thank you for choosing Bluefin LED underwater lights, our products have been designed and tested
to ensure optimum performance and longevity is maintained.
All Bluefin Led lights are water tested so please be aware there may be moisture present on the light.
Please ensure that your product is installed as per our instructions below, failure to do so may
invalidate your warranty.
If you are installing a GW48CCIFM please refer to the Driver instructions for electrical installation.
Specification: electrical/fuse ratings
Great White
GW20IFM
Great White
GW16IFM
Warnings:

Do not attempt to install the lights whilst the boat is in the water.

Ensure that the correct voltage is used for the light.

Ensure that an in line fuse is installed with the correct fuse rating per the light installed.

Ensure all connections are made water tight or your warranty will be Void.

Do not remove the inline Moisture Guard.

Do not hold the light by the cable.

Do not use abrasives on the lenses.

Do not stare into the LED light at close proximity
Tools required for installation:

101mm(4") hole saw

Drill

Marine sealant 3M 4200 or equivalent
Installation:
For optimum affect effect the light should be positioned between 8-12" (200-300mm) below the
water line and at a 90 deg angle. Recommended spacing from 3-3"(1mtr) to 5-11" (1.8mtrs) between
the lights.
Drill a 101mm (4") hole for the light access through the hull, ensuring that there are no obstructions
internally in the hull.
Key the area to where the light is to be mounted with abrasive sand paper to ensure there is a clean
area for the marine sealant to bond too.
Apply marine sealant to the rear of the light on the circumference of the light and around the base of
the tube to ensure a complete continuous bead of sealant is applied in both areas. (See fig 2)
Feed the light through the hole and clamp internally in the hull using the clamping ring and washer
supplied ensuring a tight fit using nuts and bolts supplied. (See fig 3 and 4)
1
Voltage
24V only (Absolute min of
19V under load @ light).
12/24V only (Absolute min
of 10V under load @ light).
Current Fuse rating
24v-5.1 8amp
12V-7.5 24V-3.8 10amp
