interface materials to bond the RF housing to a larger heatsinking surface (i.e. a system enclosure). As each
system configuration into which the device is integrated is unique, detailed cooling options cannot be
provided.
A cooling plan is sufficient when the SC5520A and SC5521A on-board temperature sensors indicate a rise
of no more than 20°C above ambient temperature under normal operating conditions.

Front Interface Indicators and Connectors

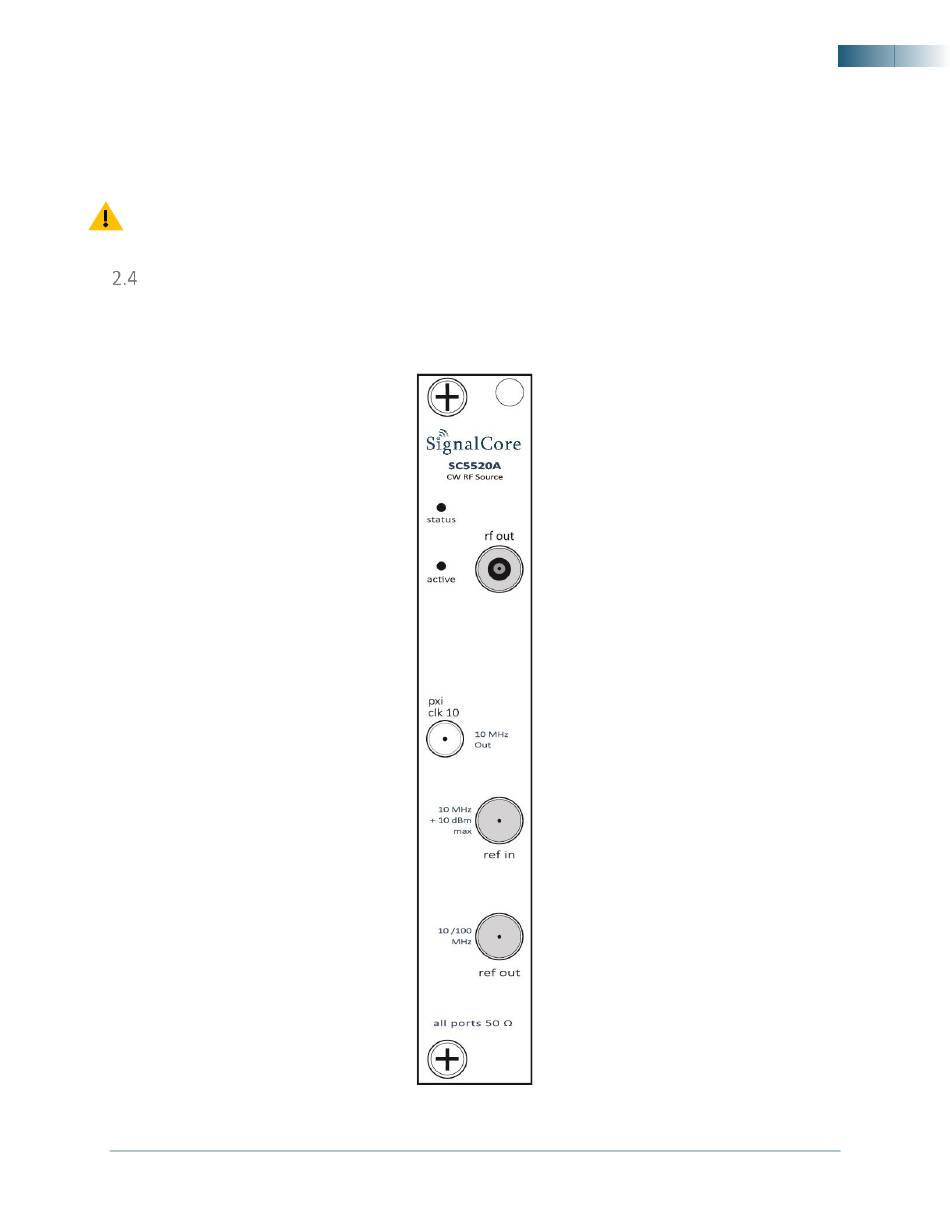

The SC5520A is a PXIe-based RF signal source with all RF connectors located on the front face of the
module. Its control I/O is via the back PXIe interface connectors.
