Innova ITM5900 Owner's Manual

Innova ITM5900 Owner's Manual

Heavy duty deluxe inversion table

Advertisement

Heavy Duty Deluxe Inversion Table
BE SURE to read this manual in its ENTIRETY prior
to installing and using the inversion table.
DO NOT USE inversion table without the approval
of a licensed physician. Some medical conditions
may not be suitable for use with this product.
CAREFULLY READ all Warnings and Instructions
before using this inversion table. Misuse of this
equipment may result in serious injury.
BODY WEIGHT will put pressure on ankles while
inverting. New users are advised to start at lower
setting (15 or 30) and to wear athletic shoes.
DO NOT let children under the age of 13 use the
inversion table.
DO NOT allow children, bystanders, or pets around
while using this equipment.
DO NOT put hand or fingers inside the Protective
Cover for the Angle Selector Pin.
TO PREVENT unauthorized usage, it is strongly
recommended you purchase a lock to fasten the
Height Adjustment Tube to the Cross Bar.
KEEP FINGERS, feet, clothing, and hair free of all
moving parts.
ALWAYS use all basic safety precautions when
using any electrical products.
TIGHTEN ALL nuts, bolts, and screws BEFORE
using equipment.
LEAVE adequate space to invert.
This equipment is for indoor, household and
non-institutional use only.
Questions/Comments
Innova Products Inc. is committed to providing the best quality and customer satisfaction
for all products we distribute. If you are dissatisfied with your purchase or need assistance,
please do not hesitate to contact us.
Email: support@innovaproductsinc.com
Model ITM5900
WARNING:
Owner's Manual
Note:
This product is
designed to adjust from 4'10"
to 6'6" with a Maximum User
300 LBS
Weight of
Images may be slightly different
from actual product.
Phone: (408) 541-1866
Monday through Friday
8:00 am – 4:00 pm Pacific Time
Version:200822JJ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITM5900 and is the answer not in the manual?

Questions and answers

Joseph Latka
May 17, 2025

How do I get a replacement part? (part #57 power adaptor)

1 comments:
Mr. Anderson
May 22, 2025

You can obtain a replacement power adaptor for the Innova ITM5900 by purchasing the Innov Power Adapter, which is specifically designed for compatibility with the Innova ITM5900 and ITM4800 models. It offers easy installation and is built for durability and safety.

This answer is automatically generated

Evelyn Boardman
May 17, 2025

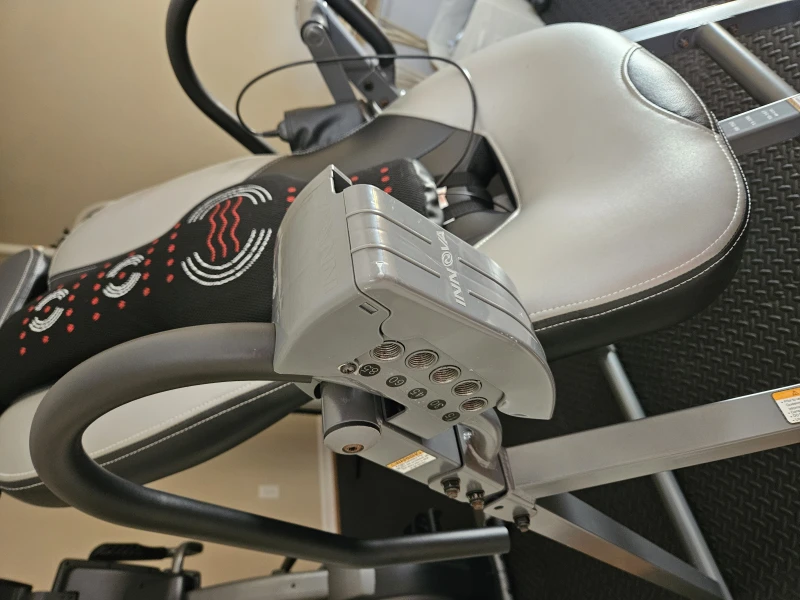

How do I get a replacement part? Part #17, Angle Selector Pin. 5900-2020.

User image 68289f15cc291

Summary of Contents for Innova ITM5900

  • Page 1 Questions/Comments Innova Products Inc. is committed to providing the best quality and customer satisfaction for all products we distribute. If you are dissatisfied with your purchase or need assistance, please do not hesitate to contact us.
  • Page 2: Product Warranty

    PRODUCT WARRANTY One-Year Limited Liability Innova Products Inc. warrants that this product will be free from defects in materials and workmanship for a period of one year from date of purchase. This warranty applies only to the original purchaser when purchase of the product is from an authorized retailer and is for personal or household use.
  • Page 3 · Users can also read the condensed version of the Warnings and User’s Guidelines on the back of the Backrest. · Innova Products Inc. assumes no responsibility for personal injury or property damage sustained by or through the improper use of the Inversion Table.
  • Page 4 Components For Assembly STEP 1 Components STEP 3 Component Protruding Metal Piece 2/47/48 8R/9R/11R 8L/9L/11L STEP 4 Components 3/43L/43R STEP 2 Components 10/52/53 64/65 STEP 5 Components STEP 6 Components STEP1 STEP2 M8x50 M8x55 STEP3 STEP4 M8x20 M8x45 Hex Wrenches #5 1PC M8x45 Wrench #13#17 2PCS STEP3...
  • Page 5: Step 1 - Base Frame Assembly

    Rear Base Frame (8R&8L) is facing out and let it stand on the floor. Front Installation Guidance Video DOES NOT replace Owner’s Manual. Please be sure to read the Owner’s Manual in its entirety. http://innovaproductsinc.com/innova5900/ or search “Innova ITM5900 Installation Guide” on YouTube.com...
  • Page 6 Step 2 – Handlebars Assembly Bolt 22 must 1. Attach the Right Handlebar (6) to the be installed Rear Base Frame (8R) using 2 Bolts (20), 2 Flat Washers (19), and 2 Lock Nuts (21). Be sure to insert Bolts (20) from the inside of the frame.
  • Page 7 Step 3 – Pre-Installed Backrest to Base Frame Connecting Brackets Must Point Downward Before Installation, Please NOTE: When Attaching the Pre-Installed Backrest Connecting Brackets (11R&11L) MUST be pointing downward and the Pre- Installed Backrest MUST be attached from below and up into the connecting brackets or the table will not invert properly.
  • Page 8 Step 4 – Height Adjustment Tube and Ankle Holders 1. Install the Footrest (4) into the Height Adjustment Tube (3) using 2 Bolts (20), 2 Flat Washers (19), and 2 Lock Nuts (21). For easier installation, pull up on the T Knob (37) and push the bar away from the Height Adjustment Tube (3).
  • Page 9 Step 5 – Height Adjustment Tube & Protective Cover Assembly 1. Pull the Height Adjustment Knob (38) and at the same time slide the Height Adjustment Tube (3) into the Backrest Support Tube (2) to your desired height number and release the Height Adjustment Knob (38).
  • Page 10 Step 6 – Installing Heat/Massage Pad Input Jack Power Adaptor Attach the Heat & Massage Pad (13) to the Backrest (47). The top strap should go through the gap under the Headrest (48) and the bottom strap should go through hole at the lower portion of the Backrest (47).
  • Page 11 SAFETY INSTRUCTIONS FOR MASSAGE/HEAT PAD PLEASE READ ALL INSTRUCTIONS BEFORE USING. WHEN USING ANY ELECTRICAL PRODUCTS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING: · USE only for its intended use as described in the operating manual. · DO NOT use attachments not recommended by the manufacturer. ·...
  • Page 12: Controller Instructions

    CONTROLLER INSTRUCTIONS Connect the Heat/Massage Pad power adaptor to a suitable outlet and the indicator “POWER” light will blink and go into standby mode. Press the “POWER” button to start the massage function. The power indicator light will stop blinking and the massage Press the "HEAT"...
  • Page 13 FCC Statement Note This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.
  • Page 14 PREPARING TO INVERT 1: INVERSION ANGLE AND HEIGHT SETTING SELECT INVERSION ANGLE Familiarize yourself with the Angle Selector Pin located on the Right Side of the Inversion Table. The positioning of the pin will determine the slope of the inversion. The 6 selections are: 15 - Slight Inversion 30 - Moderate Inversion...
  • Page 15 PREPARING TO INVERT 2: SECURING YOUR ANKLES WARNING: Always wear ATHLETIC SHOES with top laces to help relieve ankle pressure while using the inversion table and help protect your feet while exercising. Always make sure that the U-SHAPE HOLDERS are secured snugly against your ankles and that the T KNOB is fully tightened and locked into place before you use the inversion table.
  • Page 16 Lower the Height Adjustment Tube downward one position at a time to accommodate your height and body type. Photos shown may not represent actual product Learn how to use our ITM5900: http://innovaproductsinc.com/innova5900/ or search “Using the Innova ITM5900 Inversion Table” on YouTube.com...
  • Page 17: Frequently Asked Questions (Faqs)

    Frequently Asked Questions (FAQs) 1. How can I tell which is the Right Base Frame (8/9R) vs. Left Base Frame (8/9L)? There is a Warning sticker on the Right Front Base Frame (9R). There is also a protruding metal piece on the Right Connecting Bracket (11R). In this manual, Right indicates the right side while using the inversion table, not facing it.
  • Page 18: Parts Listing

    Parts Listing Part# Description QTY Part# Description Bottom Tube Round End Caps-Ankle Tube Backrest Support Tube T Knob Height Adjustment Tube Height Adjustment Knob Footrest Metal Bushing Front Ankle Holding Tube Bolt-M8x45mm Right Handlebar Screw-M6x10mm Left Handlebar Bolt-M8x40mm Base Frame - Rear - Left 43L/R Plastic Cover-Left/Right Base Frame - Rear - Right...
  • Page 19: Exploded View

    Exploded View Input Jack Power Adaptor 52 53...
  • Page 20: Storage And Maintenance

    2) PC Code for your item (front page of this manual) 3) Part number or installation step number in question http://innovaproductsinc.com/innova5900/ or search “Innova ITM5900 Installation Guide” on YouTube.com Installation Guidance Video DOES NOT replace Owner’s Manual. Please be sure to read the Owner’s Manual in its entirety.
