WARNING
PLEASE READ THIS ENTIRE MANUAL
BEFORE INSTALLATION AND USE OF
THIS PELLET FUEL-BURNING ROOM
HEATER. FAILURE TO FOLLOW
THESE INSTRUCTIONS COULD
RESULT IN PROPERTY
DAMAGE,BODILY INJURY OR EVEN
DEATH
CAUTION
DO NOT DISCARD!
IMPORTANT OPERATING AND AINTENANCE
INSTRUCTIONS INCLUDED.
SAVE THESE INSTRUCTIONS AND LEAVE
THIS MANUAL WITH ANY PARTY RESPONSIBLE
FOR USE AND OPERATION

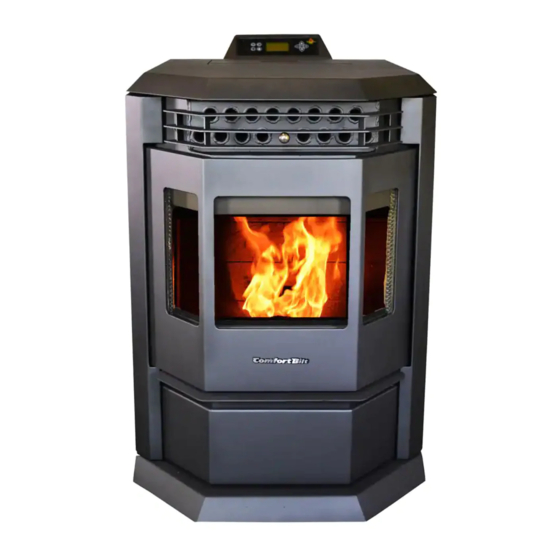

Operator's Manual
HP22
Pellet Stove
CAUTION
CONTACT LOCAL BUILDING OR FIRE
OFFICIALS
ABOUT
RESTRICTIONS
AND
INSTALLATION
INSPECTION
REQUIREMENTS FOR YOUR AREA.
•
I
M
P
O
R
T
A
N
T
O
P
E
R
A
T
I
N
G
A
N
D
Advertisement
Table of Contents
Related Manuals for Comfort Bilt HP22
Summary of Contents for Comfort Bilt HP22

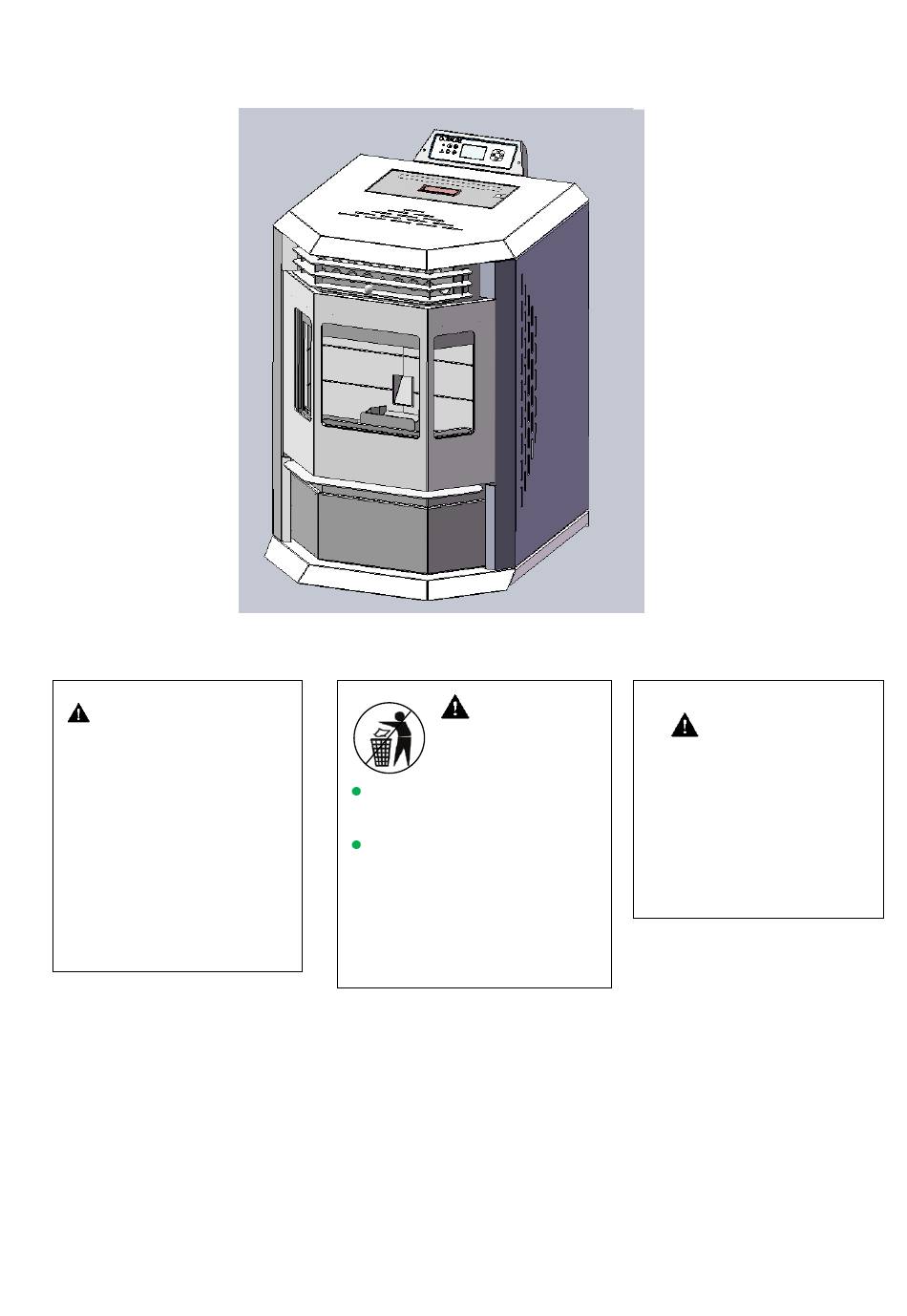

- Page 1 Operator’s Manual HP22 Pellet Stove CAUTION WARNING CAUTION DO NOT DISCARD! PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS IMPORTANT OPERATING AND AINTENANCE THIS PELLET FUEL-BURNING ROOM INSTALLATION INSPECTION INSTRUCTIONS INCLUDED.
-
Page 2: Warnings & Safety Precautions
Operator’s Manual HP22 Pellet Stove WARNING WARNING HOT! DO NOT TOUCH. SEVERE BURNS MAY RESULT. CLOTHING IGNITION MAY RESULT. GLASS AND OTHER SURFACES ARE HOT DURING OPERATION AND COOL DOWN. KEEP CHILDREN AWAY. CAREFULLY SUPERVISE CHILDREN IN SAME ROOM AS APPLIANCE. - Page 3 Operator’s Manual HP22 Pellet Stove WARNINGS AND SAFETY PRECAUTIONS OWNER’S RESPONSIBILITY DANGER Accurate assembly and safe and effective use of the stove is the owners responsibility. DANGER INDICATES A SERIOUS INJURY OR Read and follow all safety instructions. FATALITY WILL RESULT IF THE SAFETY INSTRUCTIONS Carefully follow all assembly instructions.
- Page 4 Operator’s Manual HP22 Pellet Stove WARNING WARNING WARNING INDICATES A SERIOUS INJURY OR PROPER INSTALLATION OF THIS STOVE IS NECES- FATAL COULD RESULT SAFETY SARY FOR SAFE AND EFFICIENT OPERATION. IN- INSTRUCTIONS THAT FOLLOW THIS SIGNAL WORD ARE STALLING THIS PRODUCT IMPROPERLY MAY RESULT NOT OBEYED.
- Page 5 Operator’s Manual HP22 Pellet Stove CAUTION CAUTION ALL APPLICABLE BUILDING CODES FOR YOUR INSTALLATION AND REPAIR OF THIS PELLET CATION MUST BE FOLLOWED. IN AREAS WHERE STOVE SHOULD BE DONE BY A QUALIFIED SERVICE BUILDING CODES REQUIRE ADDITIONAL STEPS TO THE PERSON.
-
Page 6: Table Of Contents
Operator’s Manual HP22 Pellet Stove TABLE OF CONTENTS WARNINGS & SAFETY PRECAUTIONS ..................2-5 INTRODUCTION ..........................7 Burning Pellet Fuel ..........................7 Automatic Safety Features ........................7 SPECIFICATIONS ..........................8 UNPACKING............................8 INSTALLATION ........................... 9 Stove Placement ........................... 9 Floor Protection Requirements ......................9 Clearance to Combustibles ........................ -
Page 7: Introduction
Operator’s Manual HP22 Pellet Stove INTRODUCTION Congratulations on your investment in quality. We have WARNING worked to ensure that this pellet stove meets the highest standards for usability and durability. With proper care, your stove will provide IF THE ELECTRICAL POWER FAILS ANY TIME many years of dependable service. -
Page 8: Specifications
Operator’s Manual HP22 Pellet Stove SPECIFICATIONS UNPACKING Model Number HP22 Your stove will come fully assembled. Remove all BTU/hour input (1) 5.5 lbs/hr packing material and tape from the inside of the firebox. Remove any tape on the outside of the glass. Open the Heating Capacity (2) 1,200 sq. -
Page 9: Installation
Operator’s Manual HP22 Pellet Stove INSTALLATION It is recommended the stove be installed and serviced by authorized professionals. WARNING Proper installation of this stove is necessary for safe and efficient operation. Installing this product improperly may READ THIS ENTIRE MANUAL BEFORE YOU result in a house fire and personal injury. -
Page 10: Clearance To Combustibles
Operator’s Manual HP22 Pellet Stove CLEARANCES TO COMBUSTIBLES NOTE: These are minimum clearances to combustible walls . 3〞 2〞 6〞 3〞 Figure 3: Straight installation through wall Figure 4: Corner installation through the wall vents 2〞 3〞 2〞 6〞 3〞... -
Page 11: Venting
Operator’s Manual HP22 Pellet Stove VENTING Before venting, consult vent manufacturer’s WARNING specifications and recommendations for all venting installations. DO NOT CONNECT THIS UNIT TO A CHIMNEY The following installation guidelines must be followed FLUE SERVING ANOTHER APPLIANCE. to ensure conformity with both the safety listing of DO NOT INSTALL A FLUE DAMPER IN THE this stove and to local building codes. -
Page 12: Vent Termination Clearances
Operator’s Manual HP22 Pellet Stove PREFERRED PELLET VENT TERMINATION CLEARANCE ●The stove vent must terminate on the outside of the building. Horizontal terminations must extend a minimum of 12” from the wall. Vertical terminations must protrude a minimum 24” from the roof surface. In addition, all clearances listed below must be met. - Page 13 Operator’s Manual HP22 Pellet Stove Venting the Pellet Stove: ●Do not install flue damper in the exhaust venting system of this unit ●Use an approved wall thimble when passing the vent 33 Feet through walls. Use a ceiling support/fire stop spacer （max）...
-
Page 14: Outside Air Connection
Operator’s Manual HP22 Pellet Stove OUTSIDE AIR CONNECTION WARNING Connection from the intake pipe (2 ” diameter pipe rear of stove) to the outside of the house is REQUIRED for CONNECT mobile home installation. It is recommended in tightly sealed homes with exhaust fans such as kitchen or bathroom DISTRIBUTION DUCT OR SYSTEM. -
Page 15: Venting Installation Examples
Operator’s Manual HP22 Pellet Stove ~ 15 ~... - Page 16 Operator’s Manual HP22 Pellet Stove ~ 16 ~...
- Page 17 Operator’s Manual HP22 Pellet Stove ~ 17 ~...
- Page 18 Operator’s Manual HP22 Pellet Stove ~ 18 ~...
- Page 19 Operator’s Manual HP22 Pellet Stove ~ 19 ~...
- Page 20 Operator’s Manual HP22 Pellet Stove ~ 20 ~...
-
Page 21: Becoming Familiar With You Controller
Operator’s Manual HP22 Pellet Stove BECOMING FAMILIAR WITH YOUR CONTROLLER CONTROLLER BUTTONS (SEE FIGURE 17) 1.Infrared Receiver: Receives signal from remote control. (Available separately) 2.Power Indicator - Illuminates when the main power switch is on. 3.Alarm Light - Illuminates if stove is not operating properly. -
Page 22: Screen Display
Operator’s Manual HP22 Pellet Stove 8.Combustion Blower Indicator: Indicates combustion 1.Date and Time: Displays time and date. blower is running. 2.Heating Power Level: Indicates the level of power at 9.Auger Indicator: Indicates auger is feeding pellets which the stove is currently heating 10.Convection Blower Indicator: Indicates convection... -
Page 23: Pre-Operation
Operator’s Manual HP22 Pellet Stove PRE-OPERATION WARNING: Once the stove has been properly installed and plugged into NEVER USE FLAMMABLE LIQUIDS SUCH AS a grounded surge protector you are ready to begin operation. GASOLINE, GASOLINE TYPE LIGHTER FUEL, CHARCOAL MOUNTING YOUR CONTROLLER LIGHTER FUEL OR FIRE STARTING GELS IN OR AROUND THIS STOVE. -
Page 24: Operation
Operator’s Manual HP22 Pellet Stove OPERATION After you have chosen the mode in which to operate WARNING your stove, press the ON/OFF button to start the stove ignite cycle NEVER SHUT STOVE DOWN UNPLUGGING FROM POWER START UP SOURCE. When the stove turns on, the ignition indicator and the combustion... -
Page 25: Setting Other Data
Operator’s Manual HP22 Pellet Stove ENTER again will take you to the following day. Proceed with setting a schedule for the rest of the week using the preceding 2.In the “Weekly Schedule” screen, you can begin with setting instructions. the operation times for Sunday. Press ENTER to highlight... - Page 26 Operator’s Manual HP22 Pellet Stove SETTING THE TEMPERATURE UNITS To set the blower voltage: 1. Press and hold the ENTER button. This will take you to the “Set Data” screen. 1. Press and hold the ENTER button. This will take you to the “Set Data”...
- Page 27 Operator’s Manual HP22 Pellet Stove SETTING THE EXHAUST VOLTAGE To set the exhaust voltage: 1. Press and hold the ENTER button. This will take you to the Data” screen. “Set 2.Using the SCROLL DOWN key, move to option 4: The exhaust voltage...
-
Page 28: Diagnostics
Operator’s Manual HP22 Pellet Stove DIAGNOSTICS RESTORING DEFAULT SETTINGS Your Stoves controller comes equipped with an on-board If at any time you desire to return your controlled stove diagnostics option that will let you test some components of settings to their original state, (i.e. rest... -
Page 29: Maintenance
Operator’s Manual HP22 Pellet Stove MAINTENANCE NORMAL CARE AND MAINTENANCE Due to differences in fuel, stove cleaning intervals will vary. The cleaner the stove is, the more efficiently it will burn. CLEANING THE FIREPOT Remove and clean the burn pot/firepot daily. Make sure all holes in the burn pot are unobstructed. - Page 30 Operator’s Manual HP22 Pellet Stove SOOT AND FLY ASH The products of combustion will contain small particles WARNING of fly ash. The fly ash will collect in the exhaust venting system and restrict the flow of the flue gases. Incomplete combustion, such...
-
Page 31: Daily Maintenance Tasks
Operator’s Manual HP22 Pellet Stove WEEKLY MAINTENANCE In addition to daily maintenance tasks, use an ash vacuum to clean the inside of the firebox. Remove the firepot from the pot holder and vacuum beneath. Be sure to remove any ash from the incoming ignitor tube. -
Page 32: Troubleshooting & Repair
Operator’s Manual HP22 Pellet Stove TROUBLESHOOTING & REPAIR WARNING We build quality and durability into the design of our products; WHEN PERFORMING ANY INTERNAL but no amount of careful design by us, and careful MAINTENANCE. maintenance by you, can guarantee a repair-free life for your MOVING PARTS INSIDE OF THE CABINET •... -
Page 33: Troubleshooting Guide
Operator’s Manual HP22 Pellet Stove TROUBLESHOOTING GUIDE WARNING Unplug stove before performing any maintenance. NEVER TEST OR CHECK ELECTRICAL COMPONENTS UNLESS STOVE IS UNPLUGGED NEVER SERVICE OR TOUCH THE FEED AUGER WITH THE STOVE PLUGGED IN. FROM POWER SUPPLY NEGATIVE PRESSURE IN A HOME IS A SERIOUS ISSUE. - Page 34 Operator’s Manual HP22 Pellet Stove PROBLEM CAUSE SOLUTION Fuel not feeding, no hopper lid signal Hopper lid is open Close hopper door. Enter the diagnostic area on the on control Hopper lid switch not functioning correctly controller; circle next to “limit” should be highlighted when the hopper lid is closed.
Need help?
Do you have a question about the HP22 and is the answer not in the manual?
Questions and answers
the stove turned off...it is plugged in and there is power but the stove will not turn on
A Comfort Bilt HP22 stove might not turn on even when plugged in and has power due to issues with the fuses or the power switch. These components are crucial for the stove's operation, and if they fail, the stove will not start, and nothing will illuminate on the user screen. Checking and replacing the fuses or the power switch may resolve the issue. Always unplug the stove before performing any maintenance.
This answer is automatically generated
Hi there. I have an issue with my HP22 pellet stove and im unsure how to trouble shoot and figure out what the problem is. Lately my flame has been abnormal and the pellets are not getting properly consumed. Black soot is building up inside the box and on the glass and it never did that before. Both the whole unit **** and the exhaust **** is functioning because i can see and hear them however I'm not sure if perhaps something is going on with the air flow or if there is a combustion setting that is out of whack. The pellets begin to feed and ignite, however due to the lack of consumption and a lazy flame, they build up and eventually the system backs up and builds up ash and prevents further airflow. Please help
For a Comfort Bilt HP22 pellet stove showing abnormal flame and pellet consumption issues (such as a lazy or dirty flame, pellet buildup in the burn pot, or dark black smoke or ash), follow these troubleshooting steps:
1. Check Burn Pot: Remove any clinkers or blockages. Ensure the burn pot is seated flush on the cradle to prevent air leaks around the pellets.
2. Inspect Seals and Gaskets: Make sure there are no leakages or loose seals, especially around the glass door and ash pan. Ensure ash pan side latches are snug and apply even pressure.
3. Clean the Stove:
- Clean the fire pot.
- Clean the ash pan.
- Clean the exhaust vent system.
- Use the cover plate clean-out hole to clean the stove internally.
4. Check Fuel Quality: Use high-quality pellets to reduce smoke and ash buildup.
5. Adjust Exhaust Motor Voltage: Increase the exhaust motor voltage if needed to improve airflow.
This answer is automatically generated
We are not able to adjust the heat power level setting either with the remote controller or on the controls on the stove. The stove is in manual setting.The stove is at 3 and will not move up or down. The rest of the stove is working.
