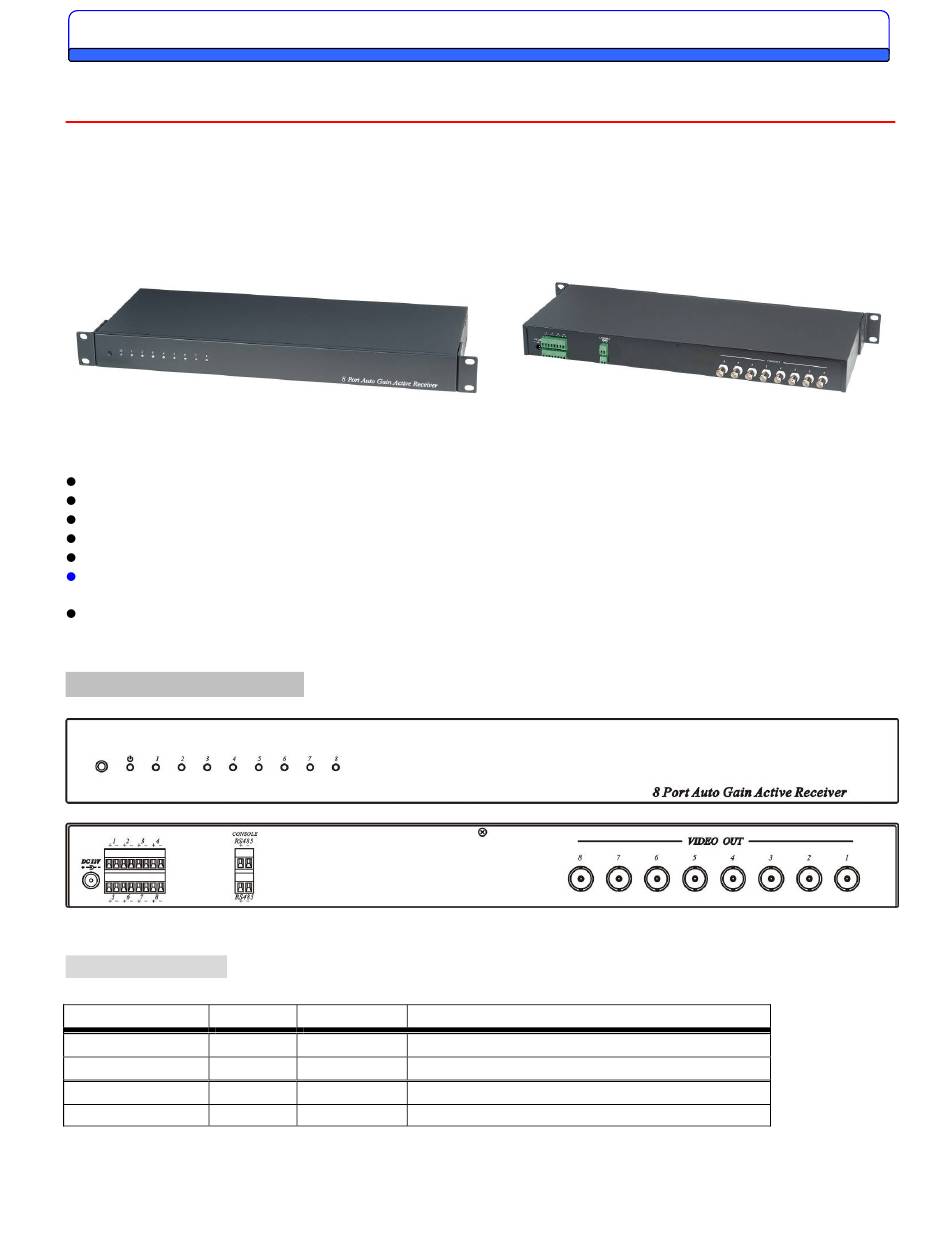

ECRAFT SMART HOME Series
Part No: ESH-CCTVAB8

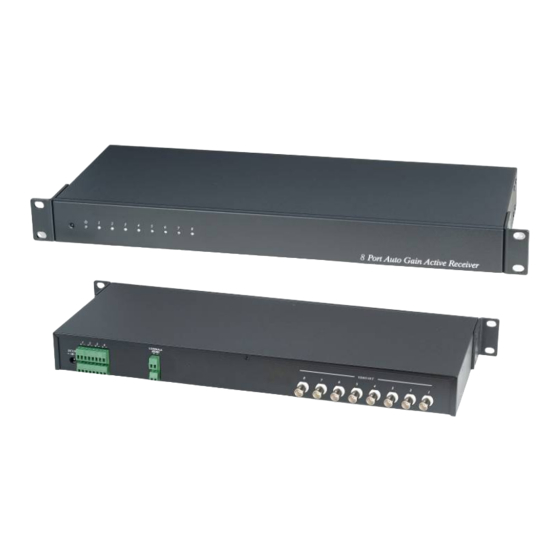

8 Port Digital Auto Gain Active Receiver Hub
The ESH-CCTVAB8 design by the advanced technology for auto gain and Equalization which 8
channel video active receiver to be install onto one compact 19" wide 1U panel, panels can reside
in the same rack as other equipment , such as switchers, multiplexers, DVR, video conferencing
equipment.. etc. They are perfect for larger CCTV installations and ideal for security monitoring
stations.
8 Port Digital Auto Gain Active Receiver
Built in 8 port auto gain receivers in 1U 19" rack mounting panel.
Auto gain control without any adjustment.
Use with passive transmitter for distance up to 1.5KM.
Use with active transmitter for distance up to 2.0KM.
Built in transient protection.
This device auto gain operation by factory default. For any abnormal picture occurred, it could be
using RS485 terminal or IR remote control for advanced management setup and control.
Built in RS485 terminal for advanced management setup and control. It could be daisy chain up to
32pcs of ESH-CCTVAB8 by any one option remote/PC/mobile phone control.
Panel view & Function:
LED Indication:
LED
Color
Power LED
GREEN
Channel LED
BLUE
Status
On
Flash
On
Video Signal Input
Flash
Hardware Defective
Function
Power
Under Setting
Advertisement
Table of Contents
Related Manuals for Globalmediapro ECRAFT SMART HOME Series
Summary of Contents for Globalmediapro ECRAFT SMART HOME Series
- Page 1 ECRAFT SMART HOME Series Part No: ESH-CCTVAB8 8 Port Digital Auto Gain Active Receiver Hub The ESH-CCTVAB8 design by the advanced technology for auto gain and Equalization which 8 channel video active receiver to be install onto one compact 19” wide 1U panel, panels can reside in the same rack as other equipment , such as switchers, multiplexers, DVR, video conferencing equipment..
- Page 2 Installation View: TPA008A ： IR Remote Control Setting This device could use IR remote control for advanced function setting and control, The ID number must be setup before using IR remote control or change new batteries. Setup IR remote ID number: Press and hold “Power Symbol” button and press number 1, Below is the IR remote control setting method: Power Symbol When Device No = 0, could on/off the control mode.
- Page 3 MENU 7 ENTER Load the previous setting. MENU 8 n ENTER Setting device number (Device No), n = 0-32 ： Function Setting & Management application Termination Resistors Function Setting & Management application： This device could use command line to control via built in RS485 terminal program, (CLI，Command-Line Interface), through RS485 terminal port (Console Port) for detailed function setup and management.
- Page 4 n = 1 is color video signal n = 2 auto recognize (Factory Default) Without input parameter: Display current setting. INVERT n Revert polarity of input signal n = 0 Do not revert polarity (Factory Default) n = 1 revert polarity n = 2 auto recognize Without input parameter: Display current setting.
