Globalmediapro TPA016AH Quick Start Manual

19" 1U Rack Mounting Auto Gain Multi Port Video Receiver Hub
ITEM NO.: TPA016AH
TPA016AH design by the advanced technology for auto gain and Equalization which 16
channel video active receiver ,with loop output for 32 output, to be install onto one
compact 19" wide 1U panel, panels can reside in the same rack as other equipment ,
such as switchers, multiplexers, DVR, video conferencing equipment.. etc. They are
perfect for larger CCTV installations and ideal for security monitoring stations.
TPA016AH 16 Port Digital Auto Gain Active Receiver with 32
 Built in 16 port auto gain receivers in 1U 19" rack mounting panel.
Auto gain control without any adjustment.

 Use with passive transmitter for distance up to 1.5KM.
Use with active transmitter for distance up to 2.0KM.

Each channel with 2 outputs (16 UTP inputs to 32 BNC outputs ).

Built in surge protection.

This device auto gain operation by factory default. For any abnormal picture occurred, it

could be using RS485 terminal or IR remote control for advanced management setup and
control.
 Built in RS485 terminal for advanced management setup and control. It could be daisy
chain up to 32pcs of TPA016AH by any one option remote/PC/mobile phone control.
It could be control by mobile phone with using option model RS006: RS485 to Ethernet.

 Option model:
1) HS04-R1 (IR remote control) ---- using IR control for advanced function setting.
2) RS003 (USB to RS485 converter)、 RS001 (RS232 to RS485 converter) ---- using PC for advanced
function setting.
3) RS006 (RS485 to Ethernet converter) ---- using Internet via PC/or mobile phone for advanced
function setting.

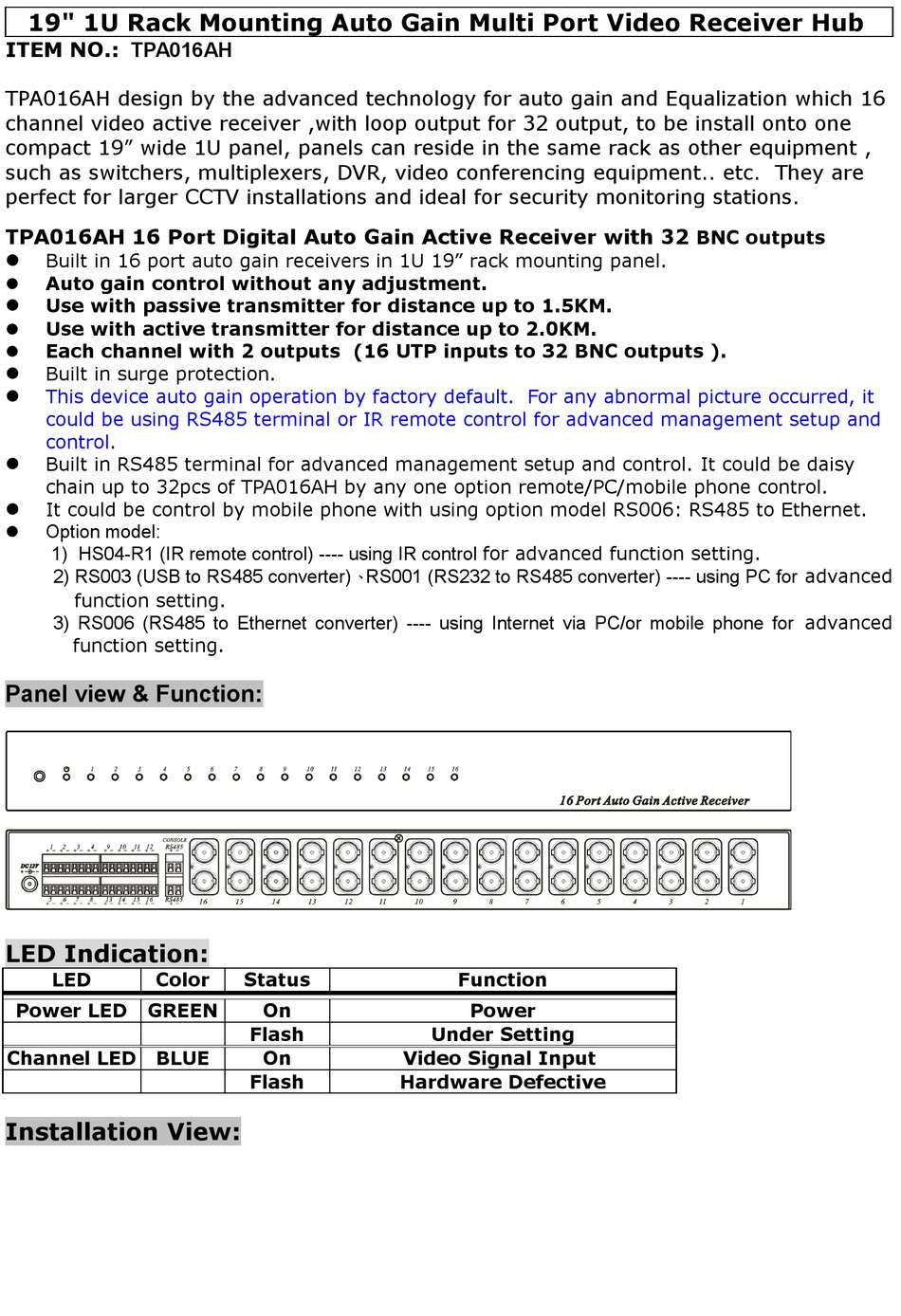

Panel view & Function:

LED Indication:

LED Color
Power LED GREEN
Channel LED BLUE
Installation View:
Status
On
Flash
On Video Signal Input
Flash Hardware Defective
Function
Power
Under Setting
BNC outputs
