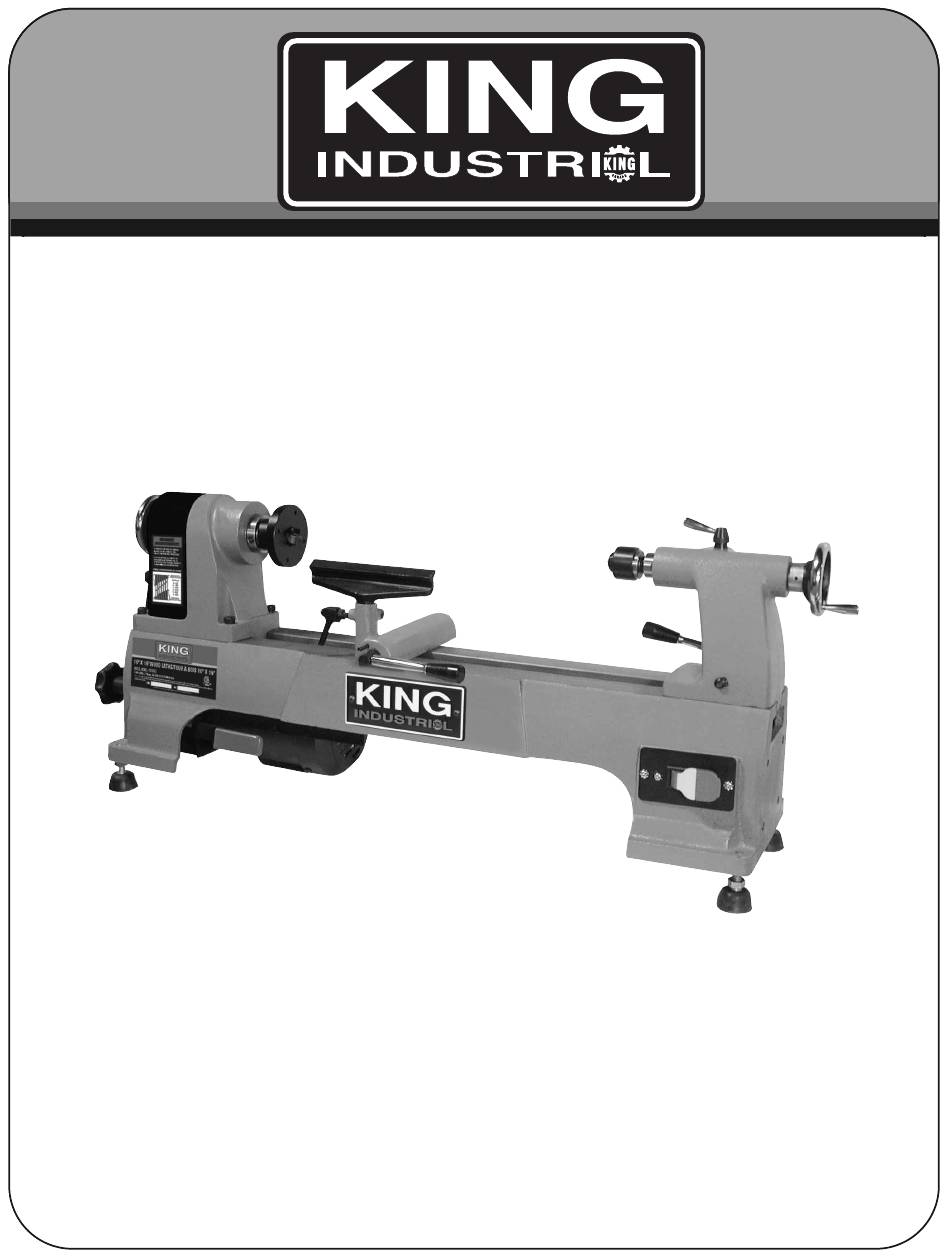

- Page 1 10” X 16” WOOD LATHE MODEL: KWL-1016C INSTRUCTION MANUAL COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 WARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS WOOD LATHE FOR NON-COMMERCIAL USE. PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centers across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable.
- Page 3 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOLS 1. KNOW YOUR TOOL 12. ALWAYS WEAR SAFETY GLASSES. Read and understand the owners manual and labels affixed to Always wear safety glasses (ANSI Z87.1). Everyday the tool. Learn its application and limitations as well as its eyeglasses only have impact resistant lenses, they are NOT specific potential hazards.
- Page 4 GETTING TO KNOW YOUR WOOD LATHE KWL-1016C SPECIFICATIONS VOLTAGE ......................................110V HORSEPOWER ..................................1/2 HP AMPS ........................................6A MOTOR R.P.M....................................1720 HZ ........................................60 PHASE ........................................1 SWING OVER BED....................................10” SWING OVER BASE ..................................7-1/2” DISTANCE BETWEEN CENTERS ..............................16” SPINDLE SIZE AND THREAD ..............................1” X 8 TPI SPINDLE SPEEDS ......................6 (480, 1270, 1960, 2730, 3327, 4023 RPM)
- Page 5 ELECTRICAL CONNECTIONS & TURNING ON/OFF WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY PROPERLY GROUNDED OUTLET WARNING: YOUR WOOD LATHE MUST BE CONNECTED TO A 110V,...
- Page 6 ADJUSTMENTS & OPERATION MOUNTING 3” FACEPLATE Warning! Unplug wood lathe before attempting to mount or remove faceplate. Your wood lathe comes with a standard 3” faceplate (A) Fig.6. This faceplate allows you to fasten your workpiece to the spindle when it is impossible to fix the workpiece inbetween two centers.
- Page 7 ADJUSTMENTS & OPERATION TAILSTOCK ADJUSTMENTS Before moving tailstock, make sure the bedway has been lubricated with paste wax or Spray Coat Dry film lubricant. The tailstock (A) Fig.10 is moved along the lathe bedway to support the other end of your workpiece using a live center (B). To move the tailstock, lift locking lever (C) and slide tailstock.
