THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Washer Dryer
MWD7515W/K/S
White | Black | Silver
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for montpellier MWD7515W
Summary of Contents for montpellier MWD7515W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Washer Dryer MWD7515W/K/S White | Black | Silver Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
What’s Included with Your Washer Dryer • 4 blanking caps. • Fill hose. • Guarantee registration leaflet – don’t forget to activate your free 2 year guarantee. See the inside cover for further details. • Liquid detergent level plate. Contents Putting Your Safety First Get to Know Your Washer Dryer Front View... -
Page 4: Putting Your Safety First
• Do not make any alterations to your Washer Dryer, external visible damage. Do not install or use your unless authorised to do so by Montpellier. Washer Dryer if it is damaged. • The packaging of the machine could be hazardous •... - Page 5 Putting Your Safety First Operating voltage / frequency (V/Hz) (220-240) • Do not exceed the maximum load for the washing V~/50Hz or drying programme you have chosen. Total current (A) • Never force the door open when your Washer Water pressure (Mpa) Maximum 1 Mpa / Dryer is running.
-
Page 6: Get To Know Your Washer Dryer

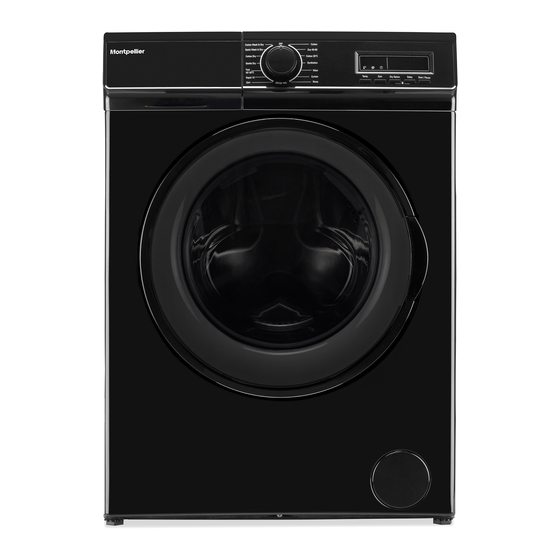

Get to Know Your Washer Dryer Front View Figure 1 STOP Cotton Wash & Dry Cotton Display Functions Quick Wash & Dry Cotton Eco Cotton Dry Eco 20°C Gentle Dry Synthetics Temp. Spin ing L evel Delay Start Daily Fast Wool 60' 60 C Pause... -
Page 7: Rear View
Get to Know Your Washer Dryer Rear View Figure 2 Transportation Safety Screws (x4): These must be removed before using your Washer Dryer (see page 8). Water supply connection – for connecting your Washer Dryer to the cold water supply. Drain hose connection –... -
Page 8: Setting Up Your Washer Dryer
Setting Up Your Washer Dryer To remove the transportation safety screws: Guidance for installing your Washer Dryer Using a suitable spanner, rotate each safety screw anti-clockwise until loose, and remove We recommend that you follow the guidance below (see Figure 3(a)). when selecting a suitable location to install your Washer Dryer. -
Page 9: Levelling Your Washer Dryer
Setting Up Your Washer Dryer Levelling your Washer Dryer Connecting your Washer Dryer to the water supply Your Washer Dryer is supported by four adjustable feet. Adjust the feet as necessary to ensure that your Your Washer Dryer must be connected to the cold appliance is level and secure: water supply only. -
Page 10: Connecting The Drain Hose To Your Washer Dryer
Setting Up Your Washer Dryer Connecting the Drain Hose to your Connecting your Washer Dryer to the Washer Dryer electrical supply Your Washer Dryer can be connected to your To connect your Washer Dryer to the mains power household drainage system in one of two ways: supply: The drain hose can be connected to a standpipe Plug your Washer Dryer into a suitable mains... -
Page 11: Control Panel Layout
Using Your Washer Dryer Control Panel Layout STOP Cotton Wash & Dry Cotton Display Functions Quick Wash & Dry Eco 40-60 Cotton Dry Cotton 20°C Synthetics Gentle Dry Temp. Spin Dry Option Delay Start Fast Wool Pause 60' 60 C Rapid 15' Curtain Spin... -
Page 12: Detergent Drawer Compartments
Using Your Washer Dryer To remove any water, and to flush out any residue Detergent Drawer Compartments from factory tests, we recommend running a wash without any laundry: Open the detergent drawer and add half a measuring cup of detergent to the main compartment. - Page 13 Using Your Washer Dryer Sorting Your Laundry Adding Detergent Sort your laundry by colour - wash whites and For best wash results ensure the correct amount of coloureds separately. detergent is added to your Washer Dryer. Wash dark garments separately several times ...
-
Page 14: Selecting A Programme
Using Your Washer Dryer To set a Start Delay time: Do not pre-wash your laundry if it is only slightly soiled. Add an amount of detergent, as specified by Press the Delay Start button. ‘1 h’ will be displayed the manufacturer, into the main compartment of the on the control panel and the symbol will flash. - Page 15 Using Your Washer Dryer Programme Table Heat resistant, cotton and linen textiles. (Underwear, bed sheets, COTTON 90° tablecloths (towels, max. 3.5 kg) Heat resistant, cotton and linen textiles (Underwear, bed sheets, ECO 40- 60 40° tablecloths (towels, max. 3.5 kg) Lightly soiled, cottons and linen textiles (underwear, bed sheets, Cotton 20°...
- Page 16 Using Your Washer Dryer Energy Table • For household washer-dryers; the wash and dry cycle is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard, and that this programme is used to assess the compliance with the EU ecodesign legislation.
- Page 17 Using Your Washer Dryer Adjusting the temperature When you select a programme, a default water temperature is set and is displayed on the control panel. You can adjust this temperature by repeatedly pressing the Temperature Adjustment button until the desired temperature is displayed. The programme tables on pages 14-16 list the available temperatures for each programme.
- Page 18 Using Your Washer Dryer The tables below show the selectable drying levels and durations for each programme. Selectable Drying Factory Programme Selectable Levels Yes/No Profile setting Cotton Cotton Dry Eco 40-60 Cotton Dry Cotton 20 ⁰C Cotton Dry Synthetics Gentle Dry Wool Curtain Rinse...
- Page 19 Using Your Washer Dryer Child Lock To activate the child lock, press and hold both the Dry Level and Delay Start button for 3 seconds. The control panel is locked. Cl flashes 3 times if a selection is attempted. To deactivate the child lock, press and hold both the Dry Level and Delay Start buttons for 3 seconds.
-
Page 20: Taking Care Of Your Washer Dryer
Taking Care of Your Washer Dryer To make sure that your Washer Dryer operates as Maintenance intended, we recommend that you regularly carry out routine maintenance. Water Inlet Filters Before cleaning or carrying out any maintenance on The water inlet filters are located on the rear of the your Washer Dryer: machine and are designed to stop dirt and any other unwanted materials from entering your Washer Dryer. - Page 21 Taking Care of Your Washer Dryer Pump Filter Detergent Drawer It is important to keep the pup filter clean as it Regular use of detergent may cause residual build lengthens the lifetime of the pump by preventing lint up in the detergent drawer. We recommend that you from entering your Washer Dryer.
- Page 22 Taking Care of Your Washer Dryer Siphon plug The Siphon Plug can be found in the softener compartment of the detergent drawer (see Figure 12). We recommend cleaning the plug at regular intervals. To clean the Siphon Plug: Pull the detergent drawer forwards until it is fully extended. Remove the plug by pulling upwards.
-
Page 23: Problem Solving
Problem Solving In the unlikely event that your Washer Dryer is not operating as expected, you may find a solution listed in the table below. Fault detection system Your Washer Dryer has a built-in fault detection system. If a fault is detected, a code is displayed on the control panel. - Page 24 Montpellier customer service helpline on 03333 234 473. If the information in the tables above does not list the fault you are experiencing, call the Montpellier customer service helpline on: 03333 234 473.
-
Page 25: Technical Specifications
Technical Specifications Model MWD7515W/K/S Colour White/Black/Sılver Voltage V/Frequency (Hz) 220-240 V, 50 Hz Electrical Current (A) 2200 Power Rating (W) Energy Efficiency Drying Efficiency Spin Speed (rpm) 1200 Max Load Capacity (Washing) (kg) Max Load Capacity (Drying) (kg) Net Weight (kg) Gross Weight (kg) 78.5... -
Page 26: Product Fiche
Product Fiche... -
Page 27: Here For You
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 28 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
