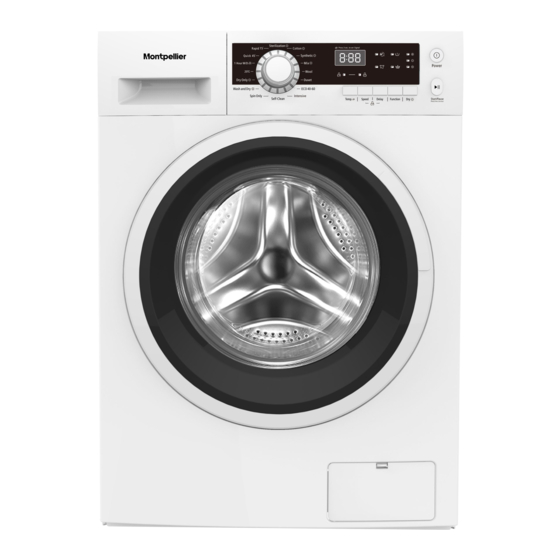

Freestanding Washer Dryer
MWD8614W/DS - White/Dark Silver
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MWD8614W
Summary of Contents for montpellier MWD8614W
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Freestanding Washer Dryer MWD8614W/DS - White/Dark Silver Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety Instructions ........INSTALLATION Product Description ........Installation ..........OPERATION Quick Start ..........Before Each Washing ....... Detergent Dispenser ......... Control Panel ..........Programmes..........Option............Function Options ........Additional Features ........MAINTENANCE Cleaning and Care ........Trouble Shooting ........Technical Specifications ...... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety,the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of the symbols: Warning! ！... - Page 5 SAFETY INSTRUCTIONS Risk of damaging the appliance ! Remove all packaging and transit bolts before using the • appliance otherwise serious damage may result ! This washing machine is only for domestic use and is only • designed for the textiles suitable for a domestic washing machine.
- Page 6 SAFETY INSTRUCTIONS Risk of explosion! Do not wash or dry articles that have been cleaned in, soaked • in, or dabbed with combustible or explosive substances(such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) This may result in fire, explosion or contamination of your appliance.
- Page 7 SAFETY INSTRUCTIONS • The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine, it is not intended to be built-in. • Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer‘s instructions and local safety regulations.
- Page 8 SAFETY INSTRUCTIONS OPERATION AND MAINTENANCE • Before using for the first time it is recommended to run the washer through one complete wash cycle at a minimum temperature of 40°without any clothes and use half of your usual amount of detergent. •...
- Page 9 SAFETY INSTRUCTIONS TRANSPORT Transport bolts shall be carefully reinstalled to the appliance • by a suitably qualified person. Any residual water left in the appliance shall be drained out of • the appliance. The appliance should always be handled with care. Do not •...
-
Page 10: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel Power supply cord Detergent dispenser Drum Door Service flap Drain hose Note! • The product picture is for illustration only, please refer to real product as reference. Accessories 4 x Cover caps 1 x Supply hose 1 x Owner’s manual cold water... -
Page 11: Installation
INSTALLATION Installation Warning! ！ • Stability is extremely important for quiet and vibration free running. • Make sure the appliance doesn't stand on the mains cable. Before installing the appliance ensure that all below points are adhered to: • Install on a dry, rigid and level surface. •... - Page 12 INSTALLATION Remove transport bolts Warning! ！ • You must remove the transport bolts from the backside before using the product. • You'll need the transport bolts again if you move the product, so make sure you keep them somewhere safe. Loosen the 4 Remove the bolts including Close the holes using...
- Page 13 INSTALLATION Drain Hose WARNING ！ ！ Do not kink or extend the drain hose • Position the drain hose correctly to avoid damage which may result in a leak • There are two ways to connect the drain pipe to a water outlet. 1.
-
Page 14: Operation
OPERATION Quick Start Caution! Before using the appliance make sure that it is correctly installed. Before washing for the first time it is advisable to run the appliance through one complete wash cycle at a minimum temperature of 40° C without any clothes and using half your usual amount of detergent. 1. -
Page 15: Before Each Washing
OPERATION Before Each Washing • The ambient temperature of the washer dryer should be 5-40°C. If used under 5°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. -
Page 16: Detergent Dispenser
OPERATION Detergent Dispenser Pre wash Main wash Softener Release button to pull out the dispenser Caution! • Detergent only need to be added in "compartment I “after selecting pre-wash function. Programme Programme Sterlilzation Self Clean Cotton Spin Only Synthetic Wash and Dry Dry Only Wool 20℃... - Page 17 OPERATION Detergent Recommendation Recommended washing Washing Type of laundry Wash cycles detergent temp. and textile Heavy-duty detergent White laundry made 20/30 with bleaching agents Cotton,ECO 40-60,Mix from boil-proof cotton or and optical brighteners 40/60/90 linen Coloured laundry Colour detergent Cold/20/ made from cotton Cotton,ECO40-60,Mix without bleaching agent...
-
Page 18: Control Panel
OPERATION Control Panel Power Start/Pause Product is on/off. Press the button to start or pause the washing cycle. Programmes Option Available according to the laundry type. This allows you to select an additional function and will light when selected. Display The display shows the settings, estimated time remaining, options, and status messages for your washer. -
Page 19: Programmes
OPERATION Programmes MWD8614W/DS Model: Programme Load(kg) Temp. Default Time °C Default Sterlilzation 2:27 5.0/5.0 Cotton 3:39 8.0/6.0 Synthetic 3:28 4.0/4.0 8.0/6.0 1:30 Wool 1:07 Duvet 1:48 Eco 40-60 – 3:35 Intensive 3:48 Self Clean 1:18 – Spin Only 0:12 –... - Page 20 OPERATION Programmes MWD8614W/DS Rapid 15' • The above data is for reference only, and the data may change due to different actual use conditions. • The valves given for programmes other than the ECO 40-60 programme and the Wash and Dry cycle are indicative only.
- Page 21 OPERATION Programmes Programmes are available according to the laundry type. Programmes Hard-wearing textiles, heat-resistant textiles made of cotton Cotton or linen. Wash synthetic articles, for example: shirts, coats, blended fabrics. Synthetic While washing knitted textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
- Page 22 OPERATION Options Default Default spin speed in rpm Temp.(℃) 1400 Time Delay Sterlilzation Hygiene Pro 1400 Cotton Pre Wash 1200 Synthetic Extra Rinse Stop Add Go Wool 1000 Duvet 1400 Eco 40-60 Intensive Self Clean 1000 Spin Only 1400 Wash and Dry 1400 Dry Only 1000...
- Page 23 OPERATION Programme Options Press the Temp button to change the required wash temperature if a temperature other than the default is required (Cold,20,30,40,60,90) Press the speed button to change the required speed if a spin speed other than the default is required (0,400,600,800,1000,1200,1500) Programme Programme Default Speed(rpm)
- Page 24 OPERATION Programme Options Using the Dryer Press the Dry button repeatedly to choose the desired dry level: Extra Dry / Normal Dry / Auto Dry Extra Dry: Clothes are dried complete to be worn directly. Normal Dry: Clothes are ready for storing in the wardrobe. Gentle Dry: Only to dry slightly and then finish.
-
Page 25: Function Options
OPERATION Function Options Use the function button to select the required functions Function available with each wash cycle - refer to the programme options table for the options available. Hygiene Pro When the Hygiene Pro light is on this function will be automatically activated during the wash cycle. -
Page 26: Additional Features
OPERATION Additional Features/Options CHILD LOCK The child lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally Speed Delay Press [Speed] and [ 3 Start Choose the Programme Delay sec. till buzzer beep. Caution! To deactivate the child lock press and hold the Speed &... -
Page 27: Maintenance
MAINTENANCE Cleaning And Care ！ Warning! Before starting any maintenance tasks on your appliance, please unplug and • make sure the water supply is turned off Cleaning The Cabinet Proper maintenance of the washing machine can extend its working life. All surfaces can be cleaned with diluted non-abrasive neutral detergents where necessary. - Page 28 MAINTENANCE Cleaning The Inlet Filter Note! Inlet filter must be checked and cleaned if there is a drop in the inlet pressure • Washing the inlet hose filter : Close the tap. Remove the water supply hose from the tap. Clean the filter.
- Page 29 MAINTENANCE Cleaning The Drain Pump Filter ！ Warning! Be careful as the water left in the appliance may be very hot !! • Allow water to cool before attempting to drain the washer or cleaning • the filter. Unplug the appliance to avoid any risk of electric shock while removing •...
-
Page 30: Troubleshooting
MAINTENANCE Troubleshooting If your appliance does not start or it stops during operation, first try and find a solution below,if not contact the service centre. Description Reason Solution Washing machine Check the door is closed and no Door is not closed properly garments are stopping it from closing doesn't start up Disconnect the power, restart... -
Page 31: Technical Specifications
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle. Technical Specifications Power Supply 220-240V~,50Hz MAX.Current Standard Water Pressure 0.05MPa~1MPa Model MWD8614W/DS Washing Capacity 8.0kg Drying Capacity Dimension(W*D*H) 595*475*850 Net Weight 65kg Rated Power... -
Page 32: Product Fiche
Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2014 with regard to energy labelling of household washing machines and washer-dreys Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire, GL20 8JU MWD8614W/DS Model identifier: General product parameters:... - Page 33 Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2014 with regard to energy labelling of household washing machines and washer-dreys Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire, GL20 8JU Maximum Rated Maximum temperature inside Rated...
-
Page 34: Here For You
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 35 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 SJU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
