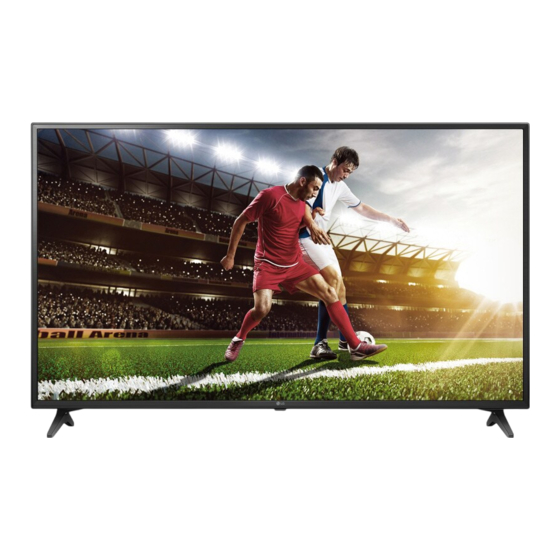

- Page 1 INSTALLATION MANUAL LED TV* Please read this manual carefully before operating your set and retain it for future reference. UU76* EU96* UU66* WU96* UU64* WT98* www.lg.com *MFL70423710* Copyright © 2018 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
Portal Settings - Portal Mode Installation Menu - Auto Start Introduction - PreLoaded App - Website Shortcut LG Hotel Mode - Hotel Directory - Hotel Mode Operation - Portal Editor - Power On Status - Volume Media Share - Key Management... - Page 3 IR Codes External control device Setup RS-232C Setup Phone jack Type Type of Connector : D-Sub 9-Pin Male RS-232C Configurations Communication Parameters IR OUT Using Guide - Suitable / Not Recommend remote-controller data format - IR Receiver specifications Command Reference List Transmission / Receiving Protocol...
-
Page 4: Location And Function Of Controls
Location and Function of Controls Parts and Button (Only WU96*) (Except for WT98*) (Except for WU96*, EU96*) Basic functions (Except for WU96*, EU96*) (Only EU96*) Power On (Press) Power Off (Press and Hold) Menu Control (Press Menu Selection (Press and Hold All running apps will close. -
Page 5: Led Clock Connection
LED Clock Connection (Depending on model) This TV can be connected to a LED Clock via the CLOCK port. CLOCK LED Clock (*Not Provided) -
Page 6: First Use Wizard
First Use Wizard * Image shown may differ from your TV. (Depending on model) • There are four options - Basic Settings, Data Cloning, Solution Settings, and Installation Menu Settings. Each menu can access by START button. -
Page 7: Basic Settings
Basic Settings * Image shown may differ from your TV. This menu is for basic settings related to language, network, portal, voice service coverage and programme tuning without SI (Pro:Centric) setting. There are four steps for it. Language & Location (Depending on model) •... -
Page 8: Portal Settings
• You can select ‘On’ or ‘Off’ . If you select ‘On’ , Portal (Home Launcher) will be execute automatically after TV on. Voice Service Coverage (Depending on model) • Set the voice service coverage. You can set LG Service Country, Voice Recognition Language, and Service Area Postcode for voice service. -
Page 9: Data Cloning
Data Cloning (Depending on model) Access Data cloning menu of TV Manger application for applying cloning file. Solution Settings (Depending on model) The Pro:Centric Platform enables you to simply install, manage and use guest-centric solutions. The default Domain “procentric.local” and IP Server Address are needed to be registered in DNS TV will contact the IP Server using the default Domain “procentric.local”... -
Page 10: Automatically For Setup
Automatically for Setup (Depending on model) From the TV Configuration Options screen, you can choose how to proceed with the configuration of this TV. Whether you will configure the TV for Pro:Centric operation via the wizard or use a USB memory device to configure the TV, you may first wish to set the Room Number on the TV. Also, you can configure the network environment. - Page 11 • If you intend to set network, use the Network Settings option. You can connect easily to wired/wireless network by this option. (“Network Setting” on page 23)
- Page 12 This step automatically searches for the Pro:Centric Server. If was found the Pro:Centric data programme, select the NEXT.
- Page 13 Downloading the Pro:Centric application files takes few minutes. After the installation is completed, the following screen will be displayed.
-
Page 14: Manually For Setup
Manually for Setup (Depending on model) Select a Label and/or enter the Room Number using the numeric keypad on the remotes or using the virtual keyboard on the TV screen. To continue, move and select NEXT. Please select the MANUAL PRO:CENTRIC. - Page 15 Configure the appropriate Pro:Centric settings in the TV. (Taiwan does not support RF)
- Page 16 Downloading the Pro:Centric application files takes few minutes.
-
Page 17: Installation Menu Settings
After the installation is completed, the following screen will be displayed. Installation Menu Settings Access Installation menu for commercial feature settings. -
Page 18: Installation Menu
The abundant functions for Hotel TV linked with software installation can be projected on OSD as ‘Installation Menu’ . The wide range of hotel features can be performed simply on additional window to enhance the LG hotel TV’s easy installation and convenient operation for Hotelier and System Integrators. -
Page 19: Lg Hotel Mode
LG Hotel Mode When ‘Hotel Mode Operation’ is set to On (Work), all functions of Hotel Mode apply. Hotel Mode Operation (Depending on model) • Decide to work all functions of ‘Hotel Mode Operation’ or not by setting ‘Hotel Mode Operation’ as On (Work) or Off (Do Not Work). -
Page 20: Volume
IR Operation • Decide whether work the LG remote control or not. - When ‘IR Operation’ is set to 'Normal' , all remote keys are available. - 'Use PWR Only' makes block all remote keys except power key. -
Page 21: Limited Mode
Limited Mode • Configure TV function’s limitation. When selected to ‘On’ , following sub-menus will be worked by below. Setup Menu • Permit to tune and manage programmes as 'On' (permitted) or 'Off' (not permitted). Programme Change (Depending on model) •... -
Page 22: Power On Default
Power On Default • Set the programme to display and Volume Level, etc. when turn on power in AC Power On or Stand-by status. • Set to On (Work) or Off (Do Not Work). • When ‘Power On Default’ is set to Off, it is not applied to the subordinate Input, Programme, A/V Setting, Aspect Ratio menu. •... -
Page 23: Network
After connects Wi-Fi, you can set the IP address, subnet mask, gateway and DNS server. LG Connect (Depending on model) • Sets the LG Connect function to on or off. - You can connect TV via LG TV Plus app in smart device. - Default setting is on. -
Page 24: Ip Stream Control
IP Stream Control (Depending on model) Audio PTS Offset • Controlling output stream timing of audio. • You can set the '-500~500' . (Change step is -10 or +10) Video PTS Offset • Controlling output stream timing of video. • You can set the '-500~500' . (Change step is -10 or +10) IGMP •... -
Page 25: Pro:centric
Pro:Centric (Depending on model) Mode • Sets whether or not enable Pro:Centric and the service method . • You can set to Off, Configuration Only, Flash(Except for Iran), GEM or HTML. The default value is Off; when it is set to Off, all the sub items are disabled. -
Page 26: Receive Data
• P:C IP Setting - Server Address is set to IP Address. - Can select IPv4 or IPv6 type using 'IP Type' . (Depending on model) (IP Address) Set IPv4 or IPv6 address. (Port Number) Sets the actual port or number where the Pro:Centric server is running. - Server Address is set to Domain Name. -
Page 27: General
General Configuration Setup Select RCU • It is a mode to set whether to use Select RCU or not. When ‘Select RCU’ is set to ‘Enable’ , You can adjust ‘Number of RCU’ menu. Number of RCU • It is a mode to set Number of RCU. •... - Page 28 » Type of Connector: D-Sub 9-Pin Male Signal Signal requirements RX RS232 Standard RS232 specification TX RS232 Standard RS232 specification IR from TV Power ground 6, 8 Not connected Male connector on box, viewed towards connector. +5 V DC 10 %, max 100 mV ripple 1.5 A +12 V DC 10 %, max 100 mV ripple One Channel Map...
- Page 29 Teletext (Depending on model) • ‘Teletext’ function can be operated only in Australia. • If Teletext is set to On, the teletext mode stays enabled even when the programme signal disappears on the teletext screen. • If Teletext is set to Auto, the teletext mode is disabled when the programme signal disappears on the teletext screen. 15Min Auto Off •...
- Page 30 • You can configure the Sound Out to be set after power on. • You can select Off, TV Speaker, Optical, LG Sound Sync., HDMI ARC (Depending on model) • If you set this option to Off, the TV maintains Sound Out after power on.
-
Page 31: External Speaker
External Speaker (Depending on model) Volume Control • Selects the volume control method of an external speaker. • You can select ‘Off’ , ‘Int Variable’ Fixed. ‘Ext Variable’ . (Depending on model) • Ext Variable uses the External Vol Up/Down Control Line to change the volume up to 2 Watts. •... -
Page 32: Hcec Setup
• You will have 3 modes to choose [Default], [HCEC] and [TVLink-CEC]. • If [Default] is selected, you can use SIMPLINK which is provided in LG TV. Also you can enable and disable SIMPLINK through SIMPLINK MENU. • If [HCEC] is selected, you can use TVLink-HCEC Protocol. (For more detailed information, please refer to TVLink-HCEC Protocol document) •... -
Page 33: Clock Setup
Clock Setup (Depending on model) Clock Display (Depending on model) • You can select ‘Enable’ or ‘Disable’ . • After selecting ‘Enable’ , you can see the LED Clock TV. Dimming Standby (Depending on model) • Standby Dimming value Range : 1~2 Dimming PowerOn (Depending on model) •... -
Page 34: Lock Mode
Lock Mode • If ‘Lock Mode’ is ‘Yes’ , the following features will be unavailable. • If it is set to ‘Enable’ , USB devices do not work in relative features. (Exclude S/W update) Factory Reset • If it is set to ‘Enable’ , User Menu General Reset to Initial Settings is disabled. -
Page 35: Portal Settings
Portal Settings Portal Mode (Depending on model) • You can select 'Default Portal' (Use webOS default portal), 'Customizable Portal' (Use editable Portal), or 'None' (Do not use portal). Auto Start (Depending on model) • You can select 'Off' , 'Website Shortcut' , or 'Portal Mode' . •... -
Page 36: Hotel Directory
Shorcut Icon • You can select default icon, fav icons, downloaded icon or Download(Go to TV Manager). • You can download the shortcut icon at TV Manager app. Tile Color (Color Code) • You can change Shortcut app tile color using RGB color code. Hotel Directory (Depending on model) •... -
Page 37: Media Share
Media Share (Depending on model) SmartShare (Depending on model) • Smart Share enables DLNA function. If this value is enabled, TV acts as Media Player and displays Media Server contents through Smart Share app. Screen Share (Depending on model) • Screen Share enables WiFi p2p functions such as Miracast and WiDi. If this value is enabled, Screen Share app is displayed at launcher bar and TV can display the screen of mobile phone by Miracast or laptop by WiDi. -
Page 38: Softap
SoftAP • SoftAP is similar to Access Point. When you enable this function, TV acts as an Access Point. • Regardless of the Instant On mode, the SoftAP setting stays unchanged after power off/on. (Depending on model) Use Default • If you want to use default password(this password was generated randomly), you must select ‘Enable’ in this item. Security Key •... - Page 39 Eddystone • Frame: Set UUID or URL. - Beacon UUID (hex): Set the UUID Field1: 10 byte hex value (20 digits) Field2: 6 byte hex value (12 digits) - Setting the URL method » URL Prefix: Sets the prefix of the URL. »...
-
Page 40: Tv Manager
TV Manager * Image shown may differ from your TV. You can update files from USB to TV through the TV manager. Diagnostics (Depending on model) • Sets Enable or Disable. When it is set to Disable, user can’t control TV via RMS. The changed setting is applied after reboot. - Page 41 Ez Download * Image shown may differ from your TV. • Ez Download is a function that enables users to download the desired items all at once, such as EPK (software update file), TLL, Image, Icon, Micom. (Depending on model) - Images,Icon and Software Update files should be copied into the folder named LG_DTV on the USB.
- Page 42 Export Clone File • “Export Clone File” creates “TLL” file in USB root folder. “TLL” file can be used to “Import Clone File”. While writing is in process, the user must not turn TV off nor unplug the USB memory card. The following reference images might be slightly different.
- Page 43 Import Clone File • Once the internal TV data and its programme map information are written to the USB memory card, the user can start “Import Clone File” process with the data file generated and stored in USB memory card. The user should not turn TV off nor unplug the USB memory card while processing.
- Page 44 Image Download * Image shown may differ from your TV. • If there are more than two USB Memory Device, It is possible to select the USB. • The download sequence is Image Download Select Image(s) Download. • The target file is located in LG_DTV folders. - Boot Logo Image (Depending on model) »...
- Page 45 Icon Download (Depending on model) • Images should be copied to LG_DTV of the USB. • The download sequence is Icon Downalod Select Images DOWNLOAD. • Icon Image can download only one file. • Icon update function supports only JPG, JPEG, PNG format file. •...
- Page 46 Software Update ► Update TV Software • This feature updates TV software through the EPK file in USB. • The target file is located in LG_DTV folder. • The download sequence is Software Update Update TV Software Select file(EPK) UPDATE. ►...
-
Page 47: Usb Download Menu
USB Download Menu USB Cloning • An Installation can quickly set up and clone multiple TV sets at a property. These cloned TVs will all have the same Master TV Setup: Public Display Mode Installation Menu settings, User A/V settings and the programme Map. This newer procedure significantly decreases the installation time that would be necessary if the standard RS-232C method were used instead. -
Page 48: Content Manager
CONTENT MANAGER (Only UU64*) Web Login • Different features are supported depending on the product. This Signage product comes with a feature that enables you to access it on your PC or mobile device. - Content Manager, Group Manager 2.0, Log Out, Change Password menus are provided. •... - Page 49 • Create Playlist When creating a playlist, you cannot include characters that cannot be used in file names on Windows — such as \, /,:, *,?, “, <,>, and | — in the names of the files in the playlist. In addition, if the playlist contains content files whose names include such characters, you cannot move or copy the playlist.
- Page 50 Editor (Editor) The Content Manager app’s editor feature enables you to add your desired templates. Select the template of your desired format. Modify the template’s text. 2-1. Apply your desired font style (Size, Weight, Underline, Italic) Modify the media file. Save the template by clicking Save in the top right-hand corner of the screen.
- Page 51 * Tips for using USB storage devices • Only USB storage devices are recognized. • USB storage devices connected to the monitor through a USB hub may not work properly. • USB storage devices that use an automatic recognition program may not be recognized. •...
-
Page 52: Group Manager 2.0
Group Manager 2.0 This feature enables you to group together multiple monitor sets on a single network into the same group and to distribute content (schedules and playlists) or copy setting data on a group basis. This feature has two modes, Master and Slave, and it can access the browser on your PC or mobile device. - Page 53 Setting Data Cloning Select your desired group and click Clone. Check that the data have been copied on the slave sets. Content Distribution Select the type of content you wish to distribute (Schedules or Playlists). Select the content you wish to distribute. Select the group to which you wish to distribute the content and click Distribute.
-
Page 54: Ir Codes
IR Codes • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button (Q. Settings) (BACK) Remote control Button Remote control Button Remote control Button Remote control Button... -
Page 55: External Control Device Setup
External control device Setup Phone jack Type (TV) (PC) (Depending on model) • You need to purchase the phone-jack to RS-232C cable required for RS-232C Setup RS-232C IN the connection between the PC and the TV, which is specified in the (CONTROL &... -
Page 56: Rs-232C Configurations
IR output signals will be suppressed automatically by IR receiver. • In this case, LG does not guarantee IR working function. • To make sure of this matter, here are two methods as below. - Use the remote-controller with suitable data formats. -
Page 57: Command Reference List
Command Reference List Transmission / Receiving Protocol (Depending on model) (Depending on Model) Transmission Data Command1 Command2 (Hexadecimal) [Command1][Command2][ ][Set ID][ ][Data][Cr] 01. Power 00 to 01 [Command1] : First command to control the TV. (j, k, m or x) 02. - Page 58 1 Power (Command: k a) 4 Volume Mute (Command: k e) ►To control Power On/Off of the set. ►To control volume mute on/off. You can also adjust mute using the mute button on remote control. Transmission [k][a][ ][Set ID][ ][Data][Cr] Transmission [k][e][ ][Set ID][ ][Data][Cr] Data 00 : Off...
- Page 59 8 Colour (Command: k i) 12 Remote Control Lock Mode (Command: k m) ►To adjust the screen colour. ►To lock the front panel controls on the monitor and remote control. You can also adjust colour in the picture settings. Transmission [k][m][ ][Set ID][ ][Data][Cr] Transmission [k][i][ ][Set ID][ ][Data][Cr]...
- Page 60 15 Energy Saving (Command: j q) 17 Equalizer (Command : j v) ►To reduce the power consumption of the TV. You can also adjust ►To adjust equalizer. Energy Saving in picture settings. Transmission Transmission [j][v][ ][Set ID][ ][Data][Cr] [j][q][ ][Set ID][ ][Data][Cr] Power Saving Level Function...
- Page 61 19 Programme Skip/Add (Command: m b) 22 Input select (Command: x b) (Main Picture Input) ►To set skip status for the current Programme. ►To select input source for main picture. Transmission Transmission [m][b][ ][Set ID][ ][Data][Cr] [x][b][ ][Set ID][ ][Data][Cr] Data 00 : Skip Data Structure Data 01 : Add...
- Page 62 * Real data mapping 00 : Step 0 Step 10 (Set ID 10) Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100 6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE :...
