www.lg.com
12
14
16
20
X 2
a
b
AAA
X 2
X 2
c
X 4
X 8
(M4 X L20)
(M4 X L20)
49/55UU76*
43/49/55UU66*
LED TV
UU76*
UU66*
d
X 4
(M4 X L12)
49/55UU76*
12
14
16
20
: Depending on model /

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 49UU761H-TA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG 49UU761H-TA

Summary of Contents for LG 49UU761H-TA

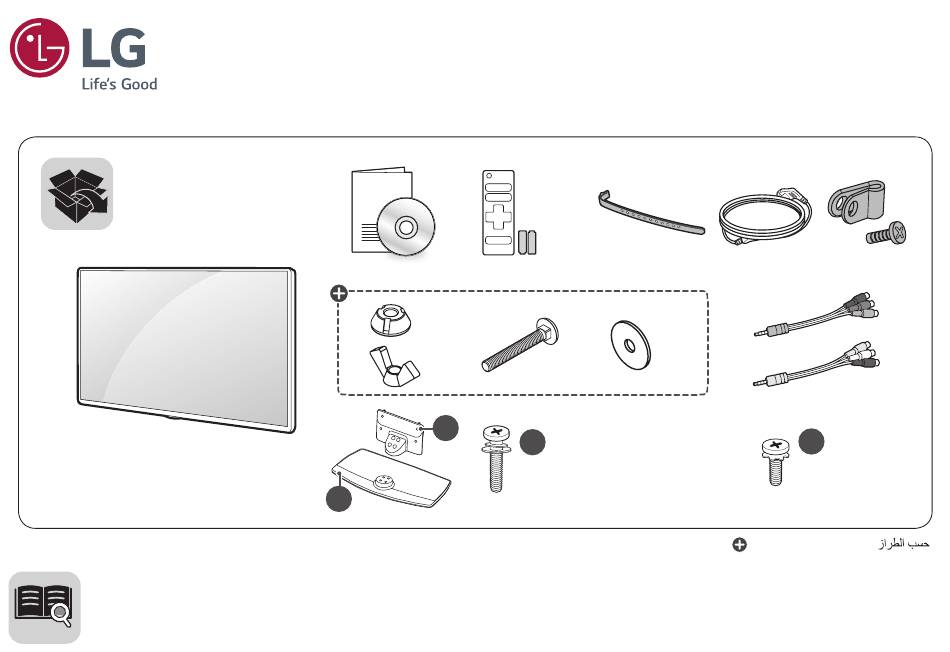

  • Page 1 LED TV UU76* UU66* (M4 X L20) (M4 X L20) (M4 X L12) 49/55UU76* 43/49/55UU66* 49/55UU76* : Depending on model / www.lg.com...
  • Page 3 43/49/55UU66* 49/55UU76*...
  • Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN H/P OUT CLOCK OPTICAL DIGITAL...
  • Page 5 OPTICAL DIGITAL AUDIO OUT Satellite IN...
  • Page 6 AV IN COMPONENT IN VIDEO L/MONO AUDIO R AUDIO VIDEO...
  • Page 7 HDMI-DVI IN AV IN HDMI IN DVI OUT AUDIO OUT...
  • Page 9 49UU761H-TA 1102 63.3 16.3 13.0 49UU761H-GA 55UU761H-TA 1237 63.3 19.4 16.1 55UU761H-GA AC 100-240 V ~ 50 / 60 Hz Power requirement /...
  • Page 10 43UU665H-TA 80.8 11.5 49UU665H-TA 1110 81.1 14.3 11.1 55UU665H-TA 1247 88.6 16.9 13.7 AC 100-240 V ~ 50 / 60 Hz Power requirement /...
  • Page 11 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *SAC35974130* www.lg.com (1809-REV03) Copyright © 2018 LG Electronics Inc. All Rights Reserved.
  • Page 12 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 13 Unauthorized modification could void the user’s authority to operate this product. • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.

  • Page 14: Separate Purchase

    Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.

  • Page 15: Lifting And Moving The Tv

    Lifting and moving the TV Wall Mounting Bracket (Depending on model) Make sure to use screws and wall mount bracket that meet the VESA Please note the following advice to prevent the TV from being scratched standard. Standard dimensions for the wall mount kits are described in or damaged and for safe transportation regardless of its type and size.

  • Page 16: Mounting On A Table

    Mounting on a Table Attaching the TV to a Desk (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ 1 Lift and tilt the TV into its upright position on a table. backward direction, potentially causing injury or damaging the product.

  • Page 17: Mounting To The Wall

    TV and a table. performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.
  • Page 18 Satellite dish • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust Connect the TV to a satellite dish to a satellite socket with a satellite RF and insects.
  • Page 19 External Speakers Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV. • Use USB 1 port when connecting a webcam. USB 2 port may not support some webcam.
  • Page 20 Network Method of volume control port (Depending on model) Wired network connection • Cable Spec. (Depending on model) This TV can be connected to a Pro:Centric server via the LAN port. After Each Up / Down pin is making the physical connection, the TV needs to be set up for network pulled to 3.3 V with CPU communication.

  • Page 21: Using Button

    Using Button Adjusting the Angle of the TV to suit view You can simply operate the TV functions, using the button. (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

  • Page 22: Using Remote Control

    Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. The descriptions in this manual are based on the buttons on the remote Adjusts the brightness of the screen to reduce control.

  • Page 23: Troubleshooting

    • Do not mix new batteries with old batteries. This may cause Abnormal display the batteries to overheat and leak. • If the product feels cold to the touch, there may be a small “flicker” • Failure to match the correct polarities of the battery may when it is turned on.

  • Page 24: Specifications

    Software Download Information (Only UU64*) • SuperSign Software & Manual - Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model. Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV PAL B/B, PAL B/G, PAL D/K, PAL-I DVB-T/T2¹...
  • Page 25 Wireless module (LGSBWAC72) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 14 dBm 5150 to 5725 MHz 16.5 dBm 5725 to 5850 MHz (Not for EU) 11.5 dBm Bluetooth Frequency Range Output Power (Max.) 2400 to 2483.5 MHz 8.5 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency.
  • Page 26 HDMI/DVI -DTV supported mode HDMI/DVI -PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.469 59.94 Horizontal Vertical Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.5...
  • Page 27 Component port connecting Supported Audio Formats information File (Depending on model) Item Info Format Bit rate 32 Kbps - 320 Kbps Component ports on the TV Sample freq. 16 kHz - 48 kHz .mp3 Support MPEG1, MPEG2 Channels mono, stereo Video output ports on DVD player Bit rate Sample freq.

  • Page 28: Open Source Software Notice Information

    Video AVC, Motion Jpeg, MPEG-4 LG Electronics will also provide open source code to you on CD-ROM .avi MPEG-1 Layer I, II, MPEG-1 Layer III for a charge covering the cost of performing such distribution (such...
  • Page 29 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
  • Page 30 OWNER’S MANUAL RS-232C Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...
  • Page 31 IR CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button (BACK)
  • Page 32 EXTERNAL CONTROL DEVICE SETUP Phone jack Type (TV) (PC) (Depending on model) • You need to purchase the phone-jack to RS-232C cable required for RS-232C Setup the connection between the PC and the TV, which is specified in the RS-232C IN (CONTROL &...
  • Page 33 RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations Data (Standard RS-232C cable) Command1 Command2 (Hexadecimal) 1 Power 00 to 01 2 Aspect Ratio (See p. 5) 3 Screen Mute (See p. 6) 4 Volume Mute 00 to 01 5 Volume 00 to 64 Control...
  • Page 34 Transmission / Receiving Protocol 1 Power (Command: k a) ►To control Power On/Off of the set. (Depending on Model) Transmission Transmission [k][a][ ][Set ID][ ][Data][Cr] [Command1][Command2][ ][Set ID][ ][Data][Cr] Data 00 : Off [Command1] : First command to control the TV. (j, k, m or x) Data 01 : On [Command2] : Second command to control the TV.
  • Page 35 3 Screen Mute (Command: k d) 6 Contrast (Command: k g) ►To select screen mute on/off. ►To adjust screen contrast. You can also adjust contrast in the picture settings. Transmission Transmission [k][d][ ][Set ID][ ][Data][Cr] [k][g][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) / Video mute off Data Min : 00 to Max : 64 Data 01 : Screen mute on (Picture off) * Refer to "Real data mapping".
  • Page 36 9 Tint (Command: k j) 12 Remote Control Lock Mode (Command: k m) ►To adjust the screen tint. ►To lock the front panel controls on the monitor and remote control. You can also adjust tint in the picture settings. Transmission Transmission [k][m][ ][Set ID][ ][Data][Cr] [k][j][ ][Set ID][ ][Data][Cr]...
  • Page 37 15 Energy Saving (Command: j q) 17 Equalizer (Command : j v) ►To reduce the power consumption of the TV. You can also adjust ►To adjust equalizer. Energy Saving in picture settings. Transmission Transmission [j][v][ ][Set ID][ ][Data][Cr] [j][q][ ][Set ID][ ][Data][Cr] Power Saving Level Function...
  • Page 38 19 Programme Skip/Add (Command: m b) 22 Input select (Command: x b) (Main Picture Input) ►To set skip status for the current Programme. ►To select input source for main picture. Transmission Transmission [m][b][ ][Set ID][ ][Data][Cr] [x][b][ ][Set ID][ ][Data][Cr] Data 00 : Skip Data Structure Data 01 : Add...
  • Page 39 * Real data mapping 00 : Step 0 Step 10 (Set ID 10) Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100 6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE :...
  • Page 40 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
  • Page 41 ‫دليل المالك‬ RS-232C .‫يرجى قراءة هذا الدليل بعناية قبل تشغيل الجهاز واالحتفاظ به للرجوع إليه في المستقبل‬ www.lg.com...
  • Page 42 IR ‫رموز‬ .‫هذه الوظيفة غير متوفرة في جميع الطرازات‬ ‫الرمز‬ ‫الرمز‬ ‫مالحظة‬ ‫الوظيفة‬ ‫مالحظة‬ ‫الوظيفة‬ )‫(سداسي‬ )‫(سداسي‬ ‫زر جهاز الريموت‬ ‫زر جهاز الريموت‬ )‫(التشغيل‬ )‫(مفتاح التشغيل/اإليقاف‬ ‫زر جهاز الريموت‬ ‫زر جهاز الريموت‬ ‫زر جهاز الريموت‬ ‫زر جهاز الريموت‬ ‫زر جهاز الريموت‬ ‫زر...
  • Page 43 ‫ضبط جهاز التحكم الخارجي‬ ‫نوع مقبس الهاتف‬ (TV) (PC) )‫(حسب الطراز‬ ‫ المطلوب إلنشاء‬RS-232C ‫عليك شراء مقبس الهاتف لكبل‬ RS-232C IN (CONTROL & SERVICE) (PC) (TV) RS-232C ‫إعداد‬ .‫اتصال بين الكمبيوتر والتلفاز، كما هو مذكور في الدليل‬ .USB ‫بالنسبة إلى طرازات أخرى، قم بالتوصيل بمنفذ‬ .‫قد...
  • Page 44 ‫قائمة إدارة المرجع‬ RS-232C ‫تكوينات‬ )‫(حسب الطراز‬ ‫تكوينات -7 أسالك‬ ‫البيانات‬ )‫ القياسي‬RS-232C ‫(كبل‬ 2‫األمر‬ 1‫األمر‬ )‫(السادس عشري‬ 01 ‫من 00 إلى‬ ‫التشغيل‬ ‫التلفاز‬ ‫محمول‬ )5 ‫(راجع الصفحة‬ ‫نسبة طول إلى عرض‬ )6 ‫(راجع الصفحة‬ ‫كتم صوت الشاشة‬ ‫كتم مستوى الصوت‬ 01 ‫من...
  • Page 45 ‫بروتوكول اإلرسال / االستالم‬ )a k :‫التشغيل (األمر‬ .‫للتحكم في تشغيل/إيقاف الطاقة للجهاز‬ )‫(يعتمد على الطراز‬ ‫اإلرسال‬ ‫اإلرسال‬ ]Cr[]‫][ ][ م ُعر ِّ ف الضبط][ ][البيانات‬a[]k[ ]Cr[]‫[األمر1][األمر2][ ][ م ُ عر ِّ ف الضبط][ ][البيانات‬ ‫البيانات 00: إيقاف‬ )x ‫ أو‬m ‫ أو‬k ‫ أو‬j( .‫[األمر1]: األمر األول للتحكم في التلفاز‬ ‫البيانات...
  • Page 46 )g k :‫تباين (األمر‬ )d k :‫كتم صوت الشاشة (األمر‬ .‫لضبط تباين الشاشة‬ .‫لتحديد تشغيل/إيقاف كتم صوت الشاشة‬ .‫يمكنك أيض ً ا ضبط التباين من إعدادات الصورة‬ ‫اإلرسال‬ ‫اإلرسال‬ ]Cr[]‫][ ][ م ُعر ِّ ف الضبط][ ][البيانات‬d[]k[ ]Cr[]‫][ ][ م ُعر ِّ ف الضبط][ ][البيانات‬g[]k[ / )‫البيانات...
  • Page 47 )m k :‫وضع قفل جهاز التحكم عن ب ُعد (األمر‬ )j k :‫درجة اللون (األمر‬ .‫لقفل عناصر التحكم في اللوحة األمامية على الشاشة والريموت‬ .‫لضبط درجة لون الشاشة‬ .‫يمكنك أيض ً ا ضبط درجة اللون من إعدادات الصورة‬ ‫اإلرسال‬ ‫اإلرسال‬ ]Cr[]‫][ ][ م...
  • Page 48 )v j :‫موازن الصوت (األمر‬ )q j :‫توفير الطاقة (األمر‬ ‫لتقليل استهالك الطاقة للتلفاز. يمكنك أيض ً ا ضبط توفير‬ .‫لضبط موازن الصوت‬ .‫الطاقة من إعدادات الصورة‬ ‫اإلرسال‬ ‫اإلرسال‬ ]Cr[]‫][ ][ م ُعر ِّ ف الضبط][ ][البيانات‬v[]j[ ]Cr[]‫][ ][ م ُعر ِّ ف الضبط][ ][البيانات‬q[]j[ ‫المستوى‬...
  • Page 49 )‫) (مدخالت الصورة الرئيسية‬b x :‫إدخال تحديد (األمر‬ )b m :‫برنامج تخطي/إضافة (األمر‬ .‫لتحديد مصدر اإلدخال للصورة الرئيسية‬ .‫لضبط حاالت التخطي من البرنامج الحالي‬ ‫اإلرسال‬ ‫اإلرسال‬ ]Cr[]‫][ ][ م ُعر ِّ ف الضبط][ ][البيانات‬b[]x[ ]Cr[]‫][ ][ م ُعر ِّ ف الضبط][ ][البيانات‬b[]m[ ‫هيكلة‬...
  • Page 50 ‫رسم خرائط االلبيانات الحقيقية‬ 0 ‫الخطوة‬ )10 ‫الخطوة 01 ( م ُعر ِّ ف الضبط‬ )15 ‫الخطوة 51 ( م ُعر ِّ ف الضبط‬ )16 ‫الخطوة 61 ( م ُعر ِّ ف الضبط‬ 100 ‫الخطوة‬ 110 ‫الخطوة‬ 115 ‫الخطوة‬ 116 ‫الخطوة‬ 199 ‫الخطوة‬...
  • Page 51 .‫سجل رقم الطراز والرقم التسلسلي للتلفاز‬ ‫راجع الملصق الموجود على الغطاء الخلفي وز و ّ د الوكيل بهذه‬ .‫المعلومات عندما تحتاج إلى أي خدمة‬ ‫الطراز‬ ‫الرقم التسلسلي‬...
