LED TV
UU64*
AAA
12
14
16
20
X 2
(M4 X L16)
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 43UU640C-ZB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG 43UU640C-ZB

Summary of Contents for LG 43UU640C-ZB

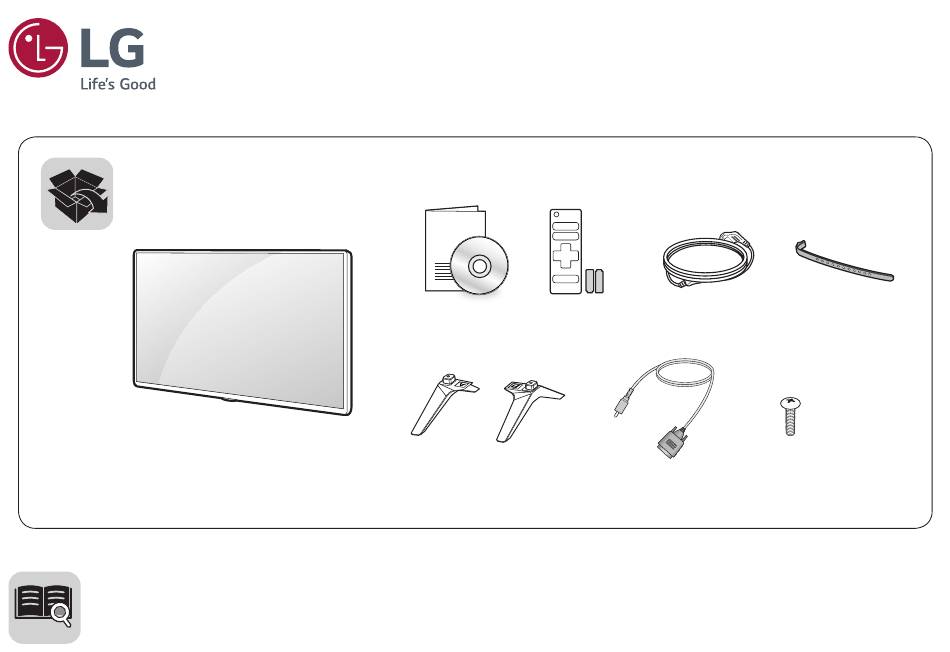

  • Page 1 LED TV UU64* (M4 X L16) www.lg.com...
  • Page 4 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN H/P OUT Satellite IN...
  • Page 5 Satellite IN OPTICAL DIGITAL AUDIO OUT...
  • Page 7 43UU640C-ZB 80.8...
  • Page 8 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *SAC35974156* Copyright © 2018 LG Electronics Inc. All Rights Reserved.
  • Page 9 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 10 Unauthorized modification could void the user’s authority to operate this product. • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.

  • Page 11: Separate Purchase

    Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.

  • Page 12: Wall Mounting Bracket

    Lifting and moving the TV Wall Mounting Bracket (Depending on model) Make sure to use screws and wall mount bracket that meet the VESA Please note the following advice to prevent the TV from being scratched standard. Standard dimensions for the wall mount kits are described in or damaged and for safe transportation regardless of its type and size.

  • Page 13: Attaching The Tv To A Desk

    Attaching the TV to a Desk • Avoid touching the screen at all times, as this may result in damage to the screen. (Depending on model) • Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV The TV should be attached to a desk so it cannot be pulled in a forward/ may occur.

  • Page 14: Using The Kensington Security System

    TV and a table. performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

  • Page 15: Satellite Dish

    Satellite dish • When installing the wall mounting bracket, it is recommended to cover the stand hole using tape, in order to prevent the influx of dust Connect the TV to a satellite dish to a satellite socket with a satellite RF and insects.

  • Page 16: External Speakers

    External Speakers Some USB Hubs may not work. If a USB device connected through a USB (Depending on model) Hub is not detected, connect it directly to the USB port on the TV. • Use USB 1 port when connecting a webcam. USB 2 port may not support some webcam.

  • Page 17: Wired Network Connection

    Network Method of volume control port (Depending on model) Wired network connection • Cable Spec. This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network Each Up / Down pin is communication.

  • Page 18: Using Button

    Using Button Adjusting the Angle of the TV to suit view You can simply operate the TV functions, using the button. (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

  • Page 19: Using Remote Control

    Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce The descriptions in this manual are based on the buttons on the remote energy consumption.

  • Page 20: Abnormal Display

    • Do not mix new batteries with old batteries. This may cause Abnormal display the batteries to overheat and leak. • If the product feels cold to the touch, there may be a small “flicker” • Failure to match the correct polarities of the battery may when it is turned on.
  • Page 21 Software Download Information • Use this information for UU640C series. You can download the SuperSign Software and manual from LG Electronics website. http://partner.lge.com Software LGSuperSignControlPlus_vX.X.X.zip LGSuperSignCMS_setup_vX.X.X.zip LGSimpleEditor_setup_vX.X.X.zip Manual SuperSignControlPlus_manual_vX.X.X.zip LGSuperSignCMS_Manual_vX.X.X.zip LGSimpleEditor_Manual_vX.X.X.zip...

  • Page 22: Specifications

    Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV DVB-S/S2 DVB-C PAL/SECAM B/G, D/K, I Television system DVB-T SECAM L DVB-T2 DVB-S/S2 DVB-C DVB-T/T2 VHF III : 174 ~ 230 MHz Channel coverage UHF IV : 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950~2,150 MHz...

  • Page 23: Operating Temperature

    Wireless module (LGSBWAC72) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 14 dBm 5,150 to 5,725 MHz 16.5 dBm 5,725 to 5,850 MHz (Not for EU) 11.5 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8.5 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency.
  • Page 24 HDMI/DVI -DTV supported mode HDMI/DVI -PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.469 59.94 Horizontal Vertical Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.5...

  • Page 25: Supported Audio Formats

    Component port connecting Supported Audio Formats information File (Except for UU64*) Item Info Format Bit rate 32 Kbps - 320 Kbps Component ports on the TV Sample freq. 16 kHz - 48 kHz .mp3 Support MPEG1, MPEG2 Channels mono, stereo Video output ports on DVD player Bit rate Sample freq.

  • Page 26: Supported Video Formats

    Video AVC, Motion Jpeg, MPEG-4 LG Electronics will also provide open source code to you on CD-ROM .avi MPEG-1 Layer I, II, MPEG-1 Layer III for a charge covering the cost of performing such distribution (such...
  • Page 27 IR CODES •  This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER)  (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button   Remote control Button Remote control Button Remote control Button  /  Remote control Button Remote control Button 10-19  Number Key 0-9 Remote control Button Remote control Button Remote control Button 8F  Remote control Button Remote control Button   Remote control Button    Remote control Button Remote control Button   ...

  • Page 28: External Control Device Setup

    EXTERNAL CONTROL DEVICE Type of Connector : D-Sub 9-Pin Male SETUP RS-232C Setup •  Image shown may differ from your TV. Connect the RS-232C (serial port) input jack to an external control  device (such as a computer or an A/V control system) to control the  product’s functions externally. Pin name Connect the serial port of the control device to the RS-232C jack on the  product back panel. 3.5 V RXD (Receive data) •  RS-232C connection cables are not supplied with the product. TXD (Transmit data) IR OUT from TV GND  No Connection No Connection (5 V available in some models) No Connection No Connection (12 V available in some models) RS-232C IN (CONTROL & SERVICE) (*Not Provided)

  • Page 29: Communication Parameters

    RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations (Standard RS-232C cable) DATA COMMAND1 COMMAND2 (Hexadecimal)     PC  01. Power 00 to 01      2  3  02. Aspect Ratio (See p. 4)     3  2  03. Screen Mute (See p. 5)     5  5  04. Volume      4  6 ...

  • Page 30: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 01.  Power (Command: k a) ►To control Power On/Off of the set.   (Depending on Model) Transmission [k][a][  ][Set ID][  ][Data][Cr] Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] Data 00 : Power Off  01 : Power On [Command 1] : First command to control the TV. (j, k, m or x) [a][ ][Set ID][ ][OK/NG][Data][x] [Command 2] : Second command to control the TV. ►To Show TV is Power On/Off.   [Set ID] : You can adjust the set ID to choose desired monitor ID number  in option menu. Adjustment range is 1 to 99. When selecting Set ID  Transmission ‘0’ ,  every connected set is controlled. Set ID is indicated as decimal (1  [k][a][ ][Set ID][ ][FF][Cr] to 99) on menu and as Hexa decimal (0 x 0 to 0 x 63) on transmission/ receiving protocol. [Data] : To transmit command data. Transmit  ‘ FF’ data to read status of  [a][ ][Set ID][ ][OK/NG][Data][x] command. [Cr] : Carriage Return *  Similarly, if other functions transmit ‘0 x FF’ data based on this for- mat, Acknowledgement data feed back presents status about each ...
  • Page 31 05.  Volume Control (Command: k f) 03.  Screen Mute (Command: k d) ►To select screen mute on/off. ►To adjust volume.     ►You can also adjust volume with the volume buttons on remote    Transmission control. [k][d][ ][Set ID][ ][Data][Cr] Transmission [k][f][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Video mute off Data Min : 00 to Max : 64           01 : Screen mute on (Picture off) *  Refer to Real data mapping           10 : Video mute on [f][ ][Set ID][ ][OK/NG][Data][x] [d][ ][Set ID][ ][OK/NG][Data][x] *  In case of video mute on only, TV will display On Screen Display(OSD).  06.  Contrast (Command: k g) But, in case of Screen mute on, TV will not display OSD. ►To adjust screen contrast.   You can also adjust contrast in the PICTURE menu. 04.  Volume Mute (Command: k e) ►To control volume mute on/off. Transmission   You can also adjust mute using the MUTE button on remote control. [k][g][ ][Set ID][ ][Data][Cr] Transmission Data Min : 00 to Max : 64 [k][e][ ][Set ID][ ][Data][Cr] * ...
  • Page 32 12.  Remote Control Lock Mode (Command: k m) 08.  Colour (Command: k i) ►To adjust the screen Colour. ►To lock the front panel controls on the monitor and remote control.     You can also adjust colour in the PICTURE menu. Transmission [k][m][ ][Set ID][ ][Data][Cr] Transmission [k][i][ ][Set ID][ ][Data][Cr] Data 00 : Lock off 01 : Lock on Data Min : 00 to Max : 64 *  Refer to Real data mapping [m][ ][Set ID][ ][OK/NG][Data][x] [i][ ][Set ID][ ][OK/NG][Data][x] *  If you are not using the remote control, use this mode. When main  power is on/off, external control lock is released. *  In the standby mode, if key lock is on, TV will not turn on by power  09.  Tint (Command: k j) on key of IR & Local Key. ►To adjust the screen tint.   You can also adjust tint in the PICTURE menu. 13.  Balance (Command: k t) Transmission ►To adjust balance.   [k][j][ ][Set ID][ ][Data][Cr] You can also adjust balance in the AUDIO menu. Data Red : 00 to Green : 64 *  Refer to Real data mapping Transmission [k][t][ ][Set ID][ ][Data][Cr] Data L : 00 to R : 64...
  • Page 33 15.  Energy Saving (Command: j q) 17.  Equalize (Command : j v) ►To reduce the power consumption of the TV. You can also adjust  ►To adjust equalize.     Energy Saving in PICTURE menu. Transmission Transmission [j][v][ ][Set ID][ ][Data][Cr] [j][q][ ][Set ID][ ][Data][Cr] Power Saving MSB                                                                                                                    LSB Level Function Description Data Low  Frequency Power 7 6 5 Frequency 4 3 2 1 0 Step Low  Minimum Power 0 0 0 1st Band 0 0 0 0 0 0(decimal) Low ...

  • Page 34: External Input

    22.  Input select (Command: x b) Channel data range Min : 00 Max : 270F (0 to 9999) (Main Picture Input) ►To select input source for main picture.   Transmission [a][ ][Set ID][ ][OK/NG][Data][x] [x][b][ ][Set ID][ ][Data][Cr] 19.  Programme Add/Skip (Command: m b) Data   Structure ►To set skip status for the current Programme.   MSB                                                                                                                     LSB Transmission [m][b][ ][Set ID][ ][Data][Cr] External Input Input Number Data 00 : Skip 01 : Add External Input Data [b][ ][Set ID][ ][OK/NG][Data][x] Analogue 20.  Key (Command: m c) Component ►To send IR remote key code.   Transmission [m][c][ ][Set ID][ ][Data][Cr] HDMI Data  IR CODES [c][ ][Set ID][ ][OK/NG][Data][x] Input Number Data Input1 21. ...
  • Page 35 *  Real data mapping 00 : Step 0 A : Step 10 (Set ID 10) F : Step 15 (Set ID 15) 10 : Step 16 (Set ID 16) 64 : Step 100   6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE : Step 254 FF : Step 255...
