IR and RS232 Outputs
For RS-232: Connect to Outputs 7-12 only. Order either RS232M (Male connector
for component) or RS232F (Female connector for component). No RS232 cables
are included with the MSC-400.
For IR: Outputs 1-6 are IR only. Outputs 7-12 can be used for either RS232 or IR.
Standard emitters can be used on 1-6, sleeved emitters should be used for Outputs
7-12. Control the IR output level via the adjustment screws on the top panel.
Video or Voltage Sensor Inputs
Sense video via the VID-6 Video sensor (six to a box) or sense
a 3-25 V AC or DC voltage via the VS-100 Voltage Sensor
(Order the VS1006, six VS-100s to a box). The VS-100 Voltage
Sensor is necessary when using other manufacturer's current,
light or RF sensors.No video or voltage sensors are included
with the MSC-400.
Combining Two MSC-400's in Master Slave Configuration
When configuring two MSC-400's to be a single Master/Slave combination, the following connec-
tions must be made:
A. All RFX-250s must be connected to the MASTER (10' cable is included).
B.The MASTER RF OUT is connected to the SLAVE RF IN (10' cable is included).
C.An RS232 accessory cable must connect between the #12 RS232 ports of both the MASTER
and the SLAVE (this cable is not included, order the MS-01 Master/Slave cable.
Master
Slave
R e a r V i e w s - F l i p f o r F r o n t V i e w s
R e a r V i e w s - F l i p f o r F r o n t V i e w s

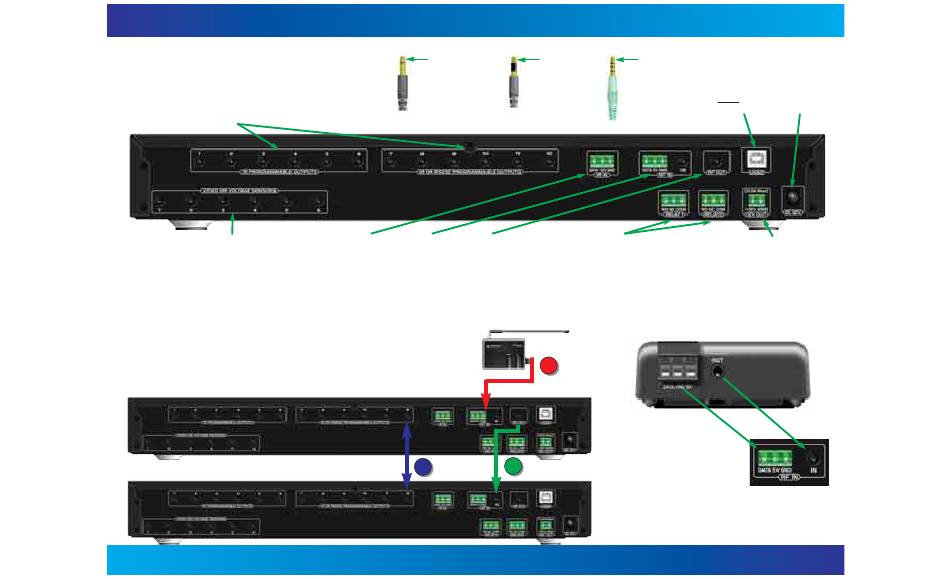

MSC-400 Master System Controller Rear Panel
Standard Emitter for
Outputs 1-6 (can be used
temporarily in Outputs 7-12).
Compatible with MRF-300.
Six are included with the
MSC-400. Order IR6 - Six
emitters in one box.
IR Input RF Input RF Output
This port enables an This port con- This port connects
IR Keypad or connect- nects to up to to other MRF or
ing block to route IR three RFX-250s MSC units in the
signals to all emitters. in parallel. same location.
B
C
Sleeved Emitter RS-232 Connector
for Outputs 7-12. Can for Outputs 7-12. None
be used with 1-6 as are included with the
well.None are includ- MSC-400. Order RS232M
ed with the MSC-400. (Male DB-9 connector for
Order IRS6 - Six component) or RS232F
sleeved emitters in (Female DB-9 connector
one box. for component).
Relays 1 and 2
Each relay is compatible with Low Voltage applications (less
than 30V with no more than .5 amps maximum current). The
relay can be programmed to Open, Close or Toggle its state in
three ways: 1. Latching 2. Momentary for a specified time 3.
Momentary for as a long as the button is pressed and held.
RFX-250 RF Receiver
A
RFX-250 Side View
Connect ONE (only) of either of the
RFX-250's RF OUT connectors to
ONE (only) of either of the RF IN con-
nectors on the MSC-400 using either
your cable or the supplied cable.
Note that 5V and GND positions are
different on the RFX-250 compared to the MSC-400. The
Data connects to Data, 5 V connects to 5V and GND con-
nects to GND.
USB2 DC12V
This port allows Plug the
keyboard control included AC
of a PC. This port adapter in
cannot be used here to power
for programming. the MSC-400.
12V Output
This is not programmable,
simply a convenient power
supply for any Relay 1 or 2
controlled device that needs
12V (less than .5 amp).
MSC-400 Rear View
