Attaching The Switch Cup - Minka Group MinkaAire Java F753 Series Instruction Manual And Warranty Certificate

WARNING: To avoid possible electrical shock be sure
electricity is turned off at the main fuse or breaker
box before wiring.
Step 1. Remove 1 of 3 screws from the motor housing
and loosen the other 2 screws. (Do not remove)
Step 2. Place the key holes on the switch cap plate
over the 2 screws previously loosened from the
motor housing, turn switch cap plate until it locks in
place at the narrow section of the key holes. Secure
by tightening the 2 screws previously loosened and
the one previously removed. (Fig. 16)
Step 3. Raise switch cap up against bottom of fan
housing and secure it to the fan by turning the switch
cap clockwise until snug. DO NOT OVERTIGHTEN.
(Fig. 17)

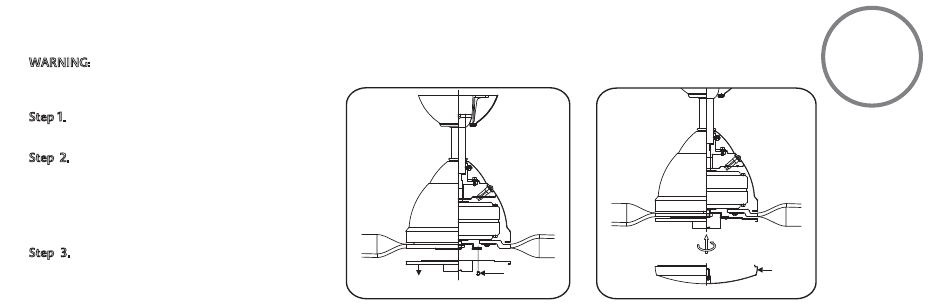

ATTACHING THE SWITCH CUP

SCREWS
SWITCH CAP
Fig 16
PLATE
SWITCH
CAP
Fig 17
