VERSION # 19-08-03
1 / 7
MODEL #
CM6971LV
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
2 - Persons
Recommended
EASY
DIFFICULT
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America CM6971LV
Summary of Contents for Furniture of America CM6971LV

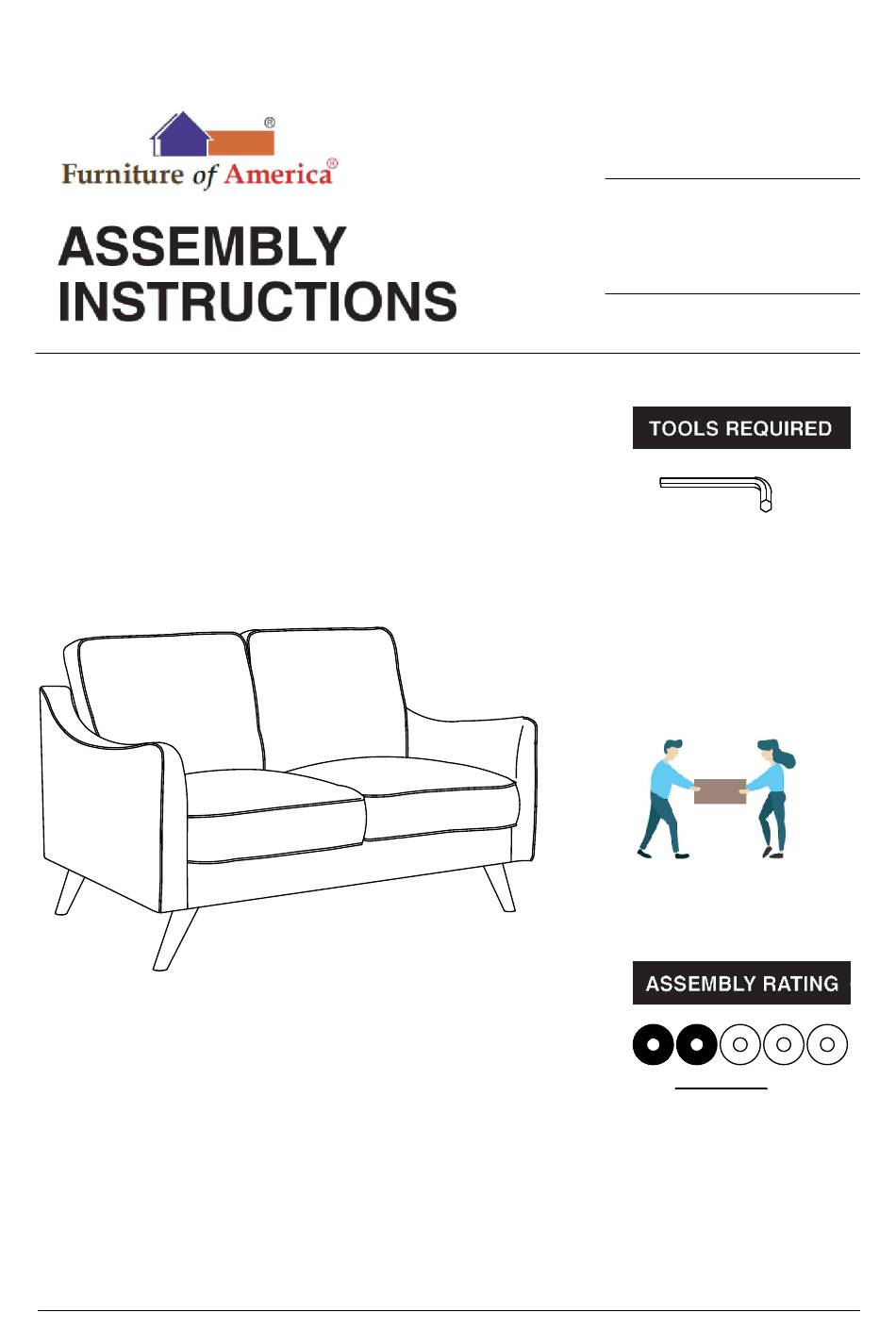

- Page 1 MODEL # CM6971LV Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) 2 - Persons Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 7...
-
Page 5: Seat Frame
LOVESEAT CM6971LV #2 4pcs #3 2pcs #1 1pc Seat Frame Back Cushion #A 8pcs #B 8pcs #C 8pcs Lock Washer Ø5/16" Flat Washer Ø5/16" Bolt Ø5/16" x 1-1/2" #D 1pc Allen Wrench 5mm 5 / 7... -
Page 6: Exploded View
Exploded View 6 / 7... - Page 7 ASSEMBLY INSTRUCTIONS Align legs (#2) to the seat (#1), then secure by using bolts (#A) with washers Part #1 x1pc (#B,C). Part #2 x4pcs Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs Place cushions (#3) to the seat (#1). Part #1 x1pc Part...
