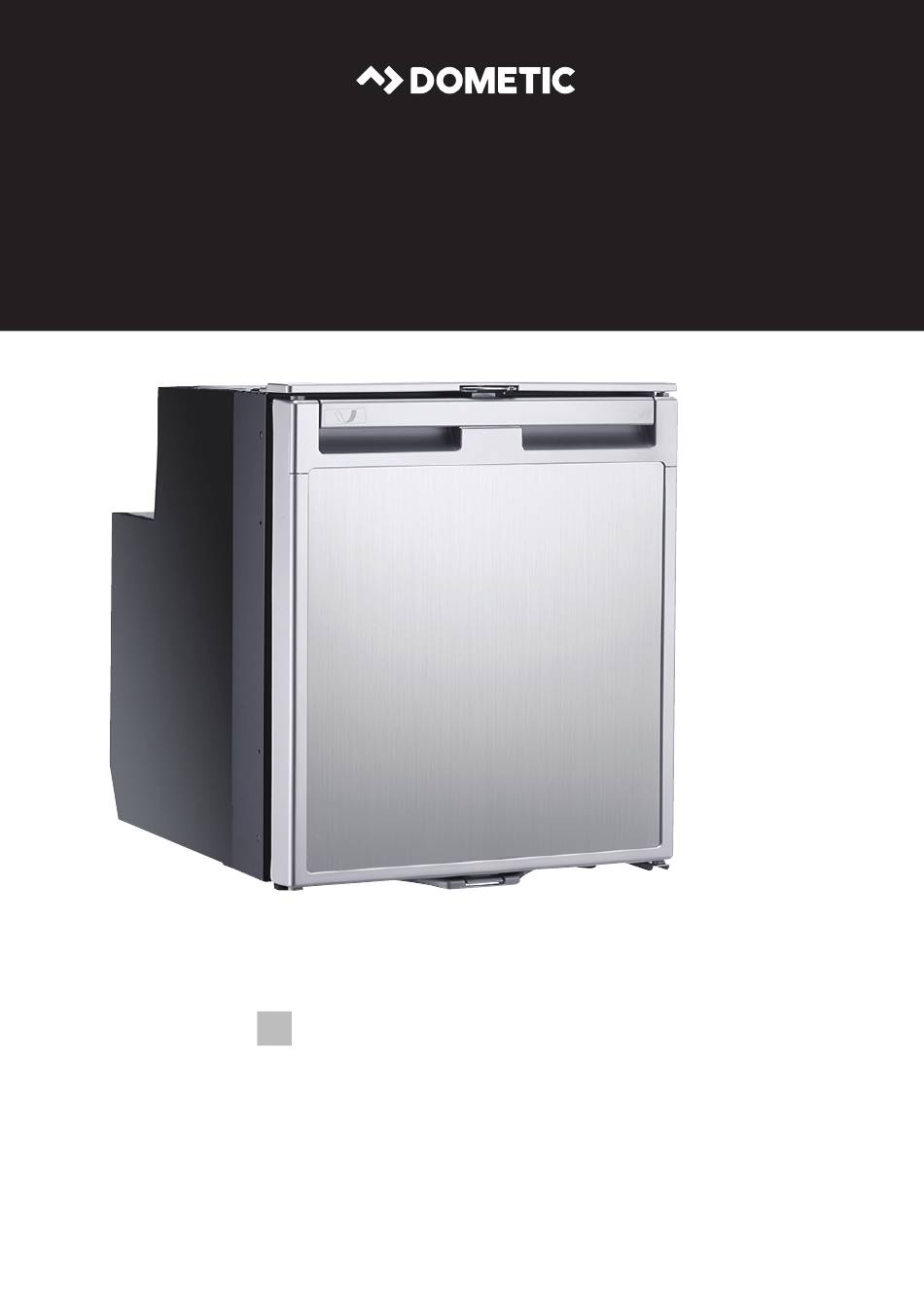

- Page 1 REFRIGERATION COOLMATIC CRX50, CRX65, CRX80, CRX110, CRX140 Compressor refrigerator Installation and Operating Manual..13...
- Page 2 CRX 50 CRX 65...
- Page 3 CRX 80 CRX 110...
- Page 4 CRX 140 CRX50, CRX65, CRX80...
- Page 5 CRX110DC CRX110ACDC, CRX140ACDC...
- Page 6 CRX 50-140 CRX 50-140 ca. 50 mm CRX 140 c a . 2 0 m m...
- Page 9 Ø/mm² 12 V 24 V...
- Page 10 – 100 – 240 V~ rd/bk 10 A – 12 V/24 V...
- Page 11 CRX 50 CRX 65 CRX 80...
- Page 12 CRX 110 CRX 140...
-
Page 13: Table Of Contents
Explanation of symbols Please read this instruction manual carefully before installation and first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it. Table of contents Explanation of symbols . -
Page 14: Safety Instructions
Safety instructions CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product. Safety instructions The manufacturer accepts no liability for damage in the following cases: Faulty assembly or connection Damage to the product resulting from mechanical influences and incorrect... - Page 15 Safety instructions This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and knowledge, providing they are supervised, or have been taught how to use the device safely and are aware of the resulting risks.
- Page 16 Safety instructions Make sure that the refrigerator circuit is not damaged during transportation. The refrigerant in the refrigerator circuit is highly flammable. In the event of any damage to the refrigerator circuit: – Avoid naked flames and sparks. – Air the room well. Set up the device in a dry location where it is protected against splashing water.
-
Page 17: Scope Of Delivery
Scope of delivery Scope of delivery Quantity Description Refrigerator with shelves Water drain outlet Installation and operating manual Accessories Available as accessories (not included in the scope of delivery): Description Explanation Ref. no. Rectifier Suitable for CRX50DC, CRX65DC, CRX80DC, 9600000445 CRX110DC. -
Page 18: Technical Description
Technical description Technical description The CoolMatic CRX series cooling appliances can cool products and keep them cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is operated without a freezer compartment, frozen products can be stored in the short term using the fast-cooling function. -
Page 19: Installing And Connecting The Refrigerator
Installing and connecting the refrigerator Explanation Bottle restraint (to hold bottles in the door) Compartment with lid (hinged) Control elements No. in fig. 6, page 5, Explanation fig. 7, page 6 IR sensor for switching the interior light LED Service display LED Blue: Compressor is running LED Orange: Compressor is off On/off button... - Page 20 Installing and connecting the refrigerator NOTICE! The cooling device can withstand a short term inclination of 30°, for example on boats. When setting up the refrigerator, note that it must be fastened to take account of this. If you have any questions regarding installation, consult your specialist dealer.
- Page 21 Installing and connecting the refrigerator Condensate is produced when the refrigerator is operating normally. You can either wipe up the condensate on the floor of the refrigerator in regular intervals, or drain it through an outlet in the floor of the refrigerator (see chapter “Mounting the water drain outlet (optional)”...
- Page 22 Installing and connecting the refrigerator Connecting the refrigerator to DC voltage NOTICE! To avoid voltage drops and loss of performance, keep the connection cable as short as possible and not be interrupted. Therefore avoid additional switches, plugs or power strips. Disconnect the cooling device and other electric consumers from the battery before you connect the battery to a quick charging device.
- Page 23 Installing and connecting the refrigerator ➤ Connect the red cable (fig. e rd, page 10) to the positive terminal of the battery. ➤ Connect the black cable (fig. e bk, page 10) to the negative terminal of the battery. Connecting the refrigerator to AC voltage DANGER! mortal danger! Never handle plugs and switches with wet hands or if you are standing on a wet surface.
-
Page 24: Using The Refrigerator
Using the refrigerator Using the refrigerator The refrigerator conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuffs and freezes fresh foodstuffs. NOTICE! Do not place any electrical devices inside the cooler. The only exceptions are devices approved for the purpose by the manufacturer. - Page 25 Using the refrigerator Switching on the refrigerator ➤ Switch the refrigerator on by pressing the button. NOTE After switching on, the refrigerator needs some time before the compressor starts up. Setting the temperature ➤ Press the button repeatedly until the desired temperature level is set. The lower/largest LED is the coldest setting.
- Page 26 Using the refrigerator Setting the winter mode (CRX110ACDC, CRX140ACDC only) The winter mode ensures optimum operation at ambient temperature of below 16 °C: ➤ Press the button for longer than 3 seconds. ✓ The refrigerator switches to winter mode and the LED lights up above the button.
- Page 27 Using the refrigerator Defrosting the freezer NOTICE! Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer. This is how to defrost the refrigerator: ➤...
-
Page 28: Cleaning And Maintenance
Cleaning and maintenance 8.10 Change the fuse (CRX50ACDC, CRX65ACDC, CRX80ACDC, CRX110ACDC, CRX140ACDC only) If the fuse in the AC socket is faulty, it can be replaced. ➤ Lever the fuse compartment (fig. f 2, page 11) open with a screwdriver. ➤... -
Page 29: Disposal
Disposal Disposal WARNING! Children beware! Before disposing of your old refrigerator: Take off the doors. Leave storage surfaces in the refrigerator so that children cannot climb inside. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. - Page 30 Troubleshooting Number of Fault Possible cause flashes Overheating of the If the cooling system is loaded too heavily or electronics unit the temperature is set too high, the electronics can overheat. Constantly Temperature sensor Temperature sensor is defective. errors CRX110, CRX140 Number of Fault Possible cause...
- Page 31 Troubleshooting Problem Possible cause Remedy Start attempt with Loose cables Establish a connection ≤ U Poor contact (corrosion) Term Battery capacity too low Replacing the battery Cable cross section too small Replace the cable (fig. d, page 10) Start attempt with Ambient temperature too high –...
-
Page 32: Technical Data
Technical data Poor cooling, increase in interior temperature Problem Possible cause Remedy Compressor runs for a Ambient temperature too high – long time/continuously Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Faulty fan Replace the fan Compressor does not Battery capacity exhausted Charge the battery... - Page 33 Technical data CRX50 CRX65 CRX80 Power consumption (AC) (ACDC models only): 40 W 45 W 48 W Rated current 12 Vg: 5.0 A 5.5 A 5.6 A 24 Vg: 2.6 A 2.8 A 2.9 A 100 Vw (ACDC models only): 1.14 A 1.22 A 1.23 A...
- Page 34 Technical data CRX110 CRX140 Total storage volume: 107.5 l 135 l Voltage: 12 Vg or 24 Vg 100 – 240 Vw (ACDC models only) Power consumption (AC) (ACDC models only): 50 W 65 W Rated current 12 Vg: 6.2 A 7.7 A 24 Vg: 3.0 A...
- Page 35 AUSTRIA SOUTH AFRICA Dometic Austria GmbH MEXICO Dometic (Pty) Ltd. Neudorferstraße 108 Dometic Mx, S. de R. L. de C. V. Regional Office A-2353 Guntramsdorf Circuito Médicos No. 6 Local 1 South Africa & Sub-Saharan Africa +43 2236 908070 Colonia Ciudad Satélite...
