Elmdene STX2402-MOD Manual

27.6v dc 2a switch mode power supply for fire, access and general applications

Advertisement

Quick Links

Elmdene International Ltd
3 Keel Close, Interchange Park,
Portsmouth, Hampshire, PO3 5QD, UK

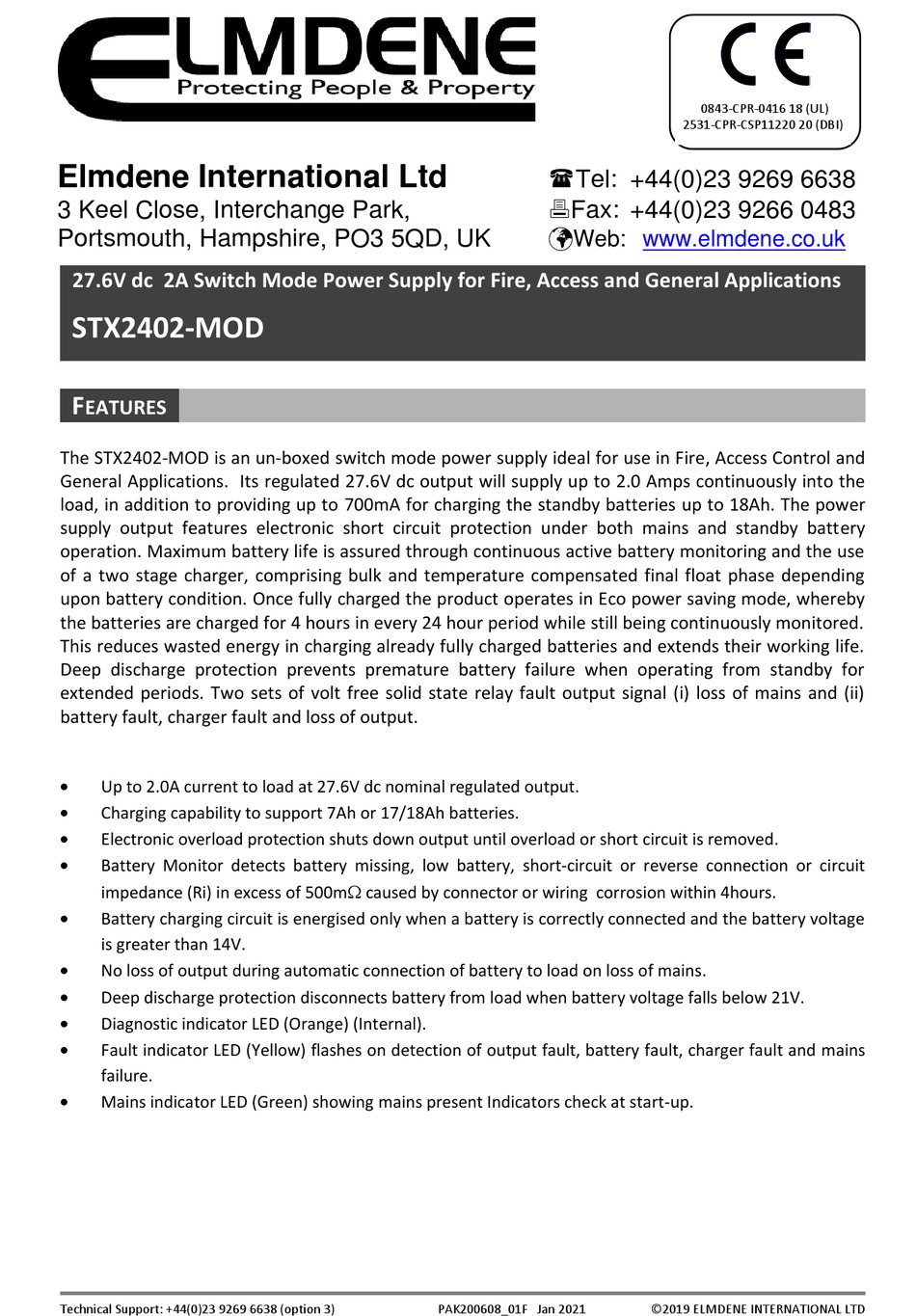

27.6V dc 2A Switch Mode Power Supply for Fire, Access and General Applications
STX2402-MOD
F
EATURES
The STX2402-MOD is an un-boxed switch mode power supply ideal for use in Fire, Access Control and
General Applications. Its regulated 27.6V dc output will supply up to 2.0 Amps continuously into the
load, in addition to providing up to 700mA for charging the standby batteries up to 18Ah. The power
supply output features electronic short circuit protection under both mains and standby battery
operation. Maximum battery life is assured through continuous active battery monitoring and the use
of a two stage charger, comprising bulk and temperature compensated final float phase depending
upon battery condition. Once fully charged the product operates in Eco power saving mode, whereby
the batteries are charged for 4 hours in every 24 hour period while still being continuously monitored.
This reduces wasted energy in charging already fully charged batteries and extends their working life.
Deep discharge protection prevents premature battery failure when operating from standby for
extended periods. Two sets of volt free solid state relay fault output signal (i) loss of mains and (ii)
battery fault, charger fault and loss of output.
Up to 2.0A current to load at 27.6V dc nominal regulated output.
Charging capability to support 7Ah or 17/18Ah batteries.
Electronic overload protection shuts down output until overload or short circuit is removed.
Battery Monitor detects battery missing, low battery, short-circuit or reverse connection or circuit
impedance (Ri) in excess of 500m caused by connector or wiring corrosion within 4hours.
Battery charging circuit is energised only when a battery is correctly connected and the battery voltage
is greater than 14V.
No loss of output during automatic connection of battery to load on loss of mains.
Deep discharge protection disconnects battery from load when battery voltage falls below 21V.
Diagnostic indicator LED (Orange) (Internal).
Fault indicator LED (Yellow) flashes on detection of output fault, battery fault, charger fault and mains
failure.
Mains indicator LED (Green) showing mains present Indicators check at start-up.
Technical Support: +44(0)23 9269 6638 (option 3)
Tel: +44(0)23 9269 6638
Fax: +44(0)23 9266 0483
Web:
PAK200608_01F Jan 2021
0843-CPR-0416 18 (UL)
2531-CPR-CSP11220 20 (DBI)
www.elmdene.co.uk
©2019 ELMDENE INTERNATIONAL LTD
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the STX2402-MOD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Elmdene STX2402-MOD

  • Page 1 STX2402-MOD EATURES The STX2402-MOD is an un-boxed switch mode power supply ideal for use in Fire, Access Control and General Applications. Its regulated 27.6V dc output will supply up to 2.0 Amps continuously into the load, in addition to providing up to 700mA for charging the standby batteries up to 18Ah. The power supply output features electronic short circuit protection under both mains and standby battery operation.
  • Page 2: Specification

    (mm) Weight (kg) 0.34 Environmental Temperature – Operating -10 to +40°C (operating) 75% RH non-condensing Temperature - Storage -20 to +80°C (storage) Technical Support: +44(0)23 9269 6638 (option 3) PAK200608_01F Jan 2021 ©2019 ELMDENE INTERNATIONAL LTD...
  • Page 3 Blown fuses Contact service LASH or O Fault Battery fault engineer ONTINUOUS Internal fault Mains lost Investigate loss of Standby Mode ULSE Battery driving load mains Technical Support: +44(0)23 9269 6638 (option 3) PAK200608_01F Jan 2021 ©2019 ELMDENE INTERNATIONAL LTD...
  • Page 4 Battery temperature monitor sensor connections and or O Temperature disconnected or damaged ULSES condition of sensor. Probe Fault PSU running in Safe Mode Replace if suspect Technical Support: +44(0)23 9269 6638 (option 3) PAK200608_01F Jan 2021 ©2019 ELMDENE INTERNATIONAL LTD...
  • Page 5: Installation

    Connect the EPS and GEN PSU Fault outputs to the appropriate inputs of control equipment if remote fault monitoring is required. Connect the load (output) wiring as shown in Figure 2. Technical Support: +44(0)23 9269 6638 (option 3) PAK200608_01F Jan 2021 ©2019 ELMDENE INTERNATIONAL LTD...
  • Page 6 Perform a full functional test of system including full alarm condition. Verify that the standby batteries can support the system load. Note: ensure batteries have sufficient charge. Technical Support: +44(0)23 9269 6638 (option 3) PAK200608_01F Jan 2021 ©2019 ELMDENE INTERNATIONAL LTD...
  • Page 7 There is no regular maintenance required of the PSU other than periodic testing, and replacement of the standby battery. Reference should be made to the battery manufacturer's documentation to determine typical/expected battery life with a view to periodic replacement of the battery. Technical Support: +44(0)23 9269 6638 (option 3) PAK200608_01F Jan 2021 ©2019 ELMDENE INTERNATIONAL LTD...
  • Page 8 (Cd), lead (Pb), or mercury (Hg). For more information see: www.recyclethis.info The packaging supplied with this product may be recycled. Please dispose of packaging accordingly. Technical Support: +44(0)23 9269 6638 (option 3) PAK200608_01F Jan 2021 ©2019 ELMDENE INTERNATIONAL LTD...
