Summary of Contents for Makita DWR180Z

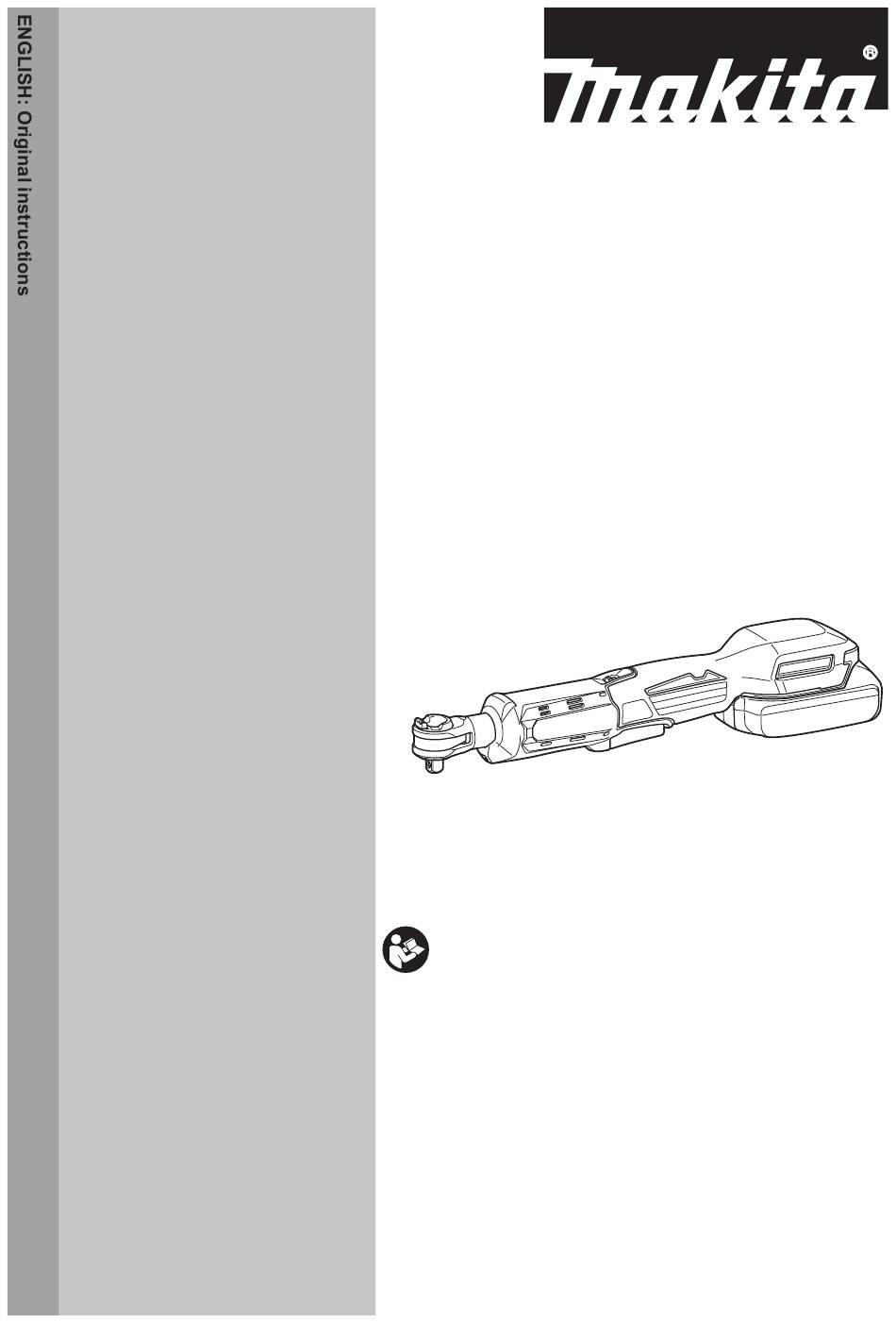

- Page 1 INSTRUCTION MANUAL Cordless Ratchet Wrench DWR180 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DWR180 Fastening capacities (with Standard bolt M5 - M12 manual retightening) High tensile bolt M5 - M10 Square drive 6.35 mm, 9.5 mm No load speed 0 - 800 min Maximum fastening torque 47.5 N•m Overall length 369 mm Rated voltage D.C. -
Page 3: Ec Declaration Of Conformity
Electrical safety Vibration Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any The vibration total value (tri-axial vector sum) deter- adapter plugs with earthed (grounded) power mined according to EN62841-2-2: tools. Unmodified plugs and matching outlets will Work mode: fastening reduce risk of electric shock. - Page 4 Do not let familiarity gained from frequent use Keep handles and grasping surfaces dry, clean of tools allow you to become complacent and and free from oil and grease. Slippery handles and ignore tool safety principles. A careless action can grasping surfaces do not allow for safe handling and cause severe injury within a fraction of a second.
- Page 5 Do not short the battery cartridge: CAUTION: Only use genuine Makita batteries. Do not touch the terminals with any con- Use of non-genuine Makita batteries, or batteries that ductive material. have been altered, may result in the battery bursting causing fires, personal injury and damage. It will Avoid storing battery cartridge in a con-...
-
Page 6: Functional Description
Overheat protection FUNCTIONAL DESCRIPTION When the tool is overheated, the tool stops automat- ically and the lamp starts blinking. In this situation, CAUTION: Always be sure that the tool is let the tool and battery cool before turning the tool on switched off and the battery cartridge is removed again. before adjusting or checking function on the tool. Overdischarge protection Installing or removing battery cartridge This protection works when the remaining battery... - Page 7 Switch action Lighting up the front lamp CAUTION: CAUTION: Before installing the battery car- Do not look in the light or see the tridge into the tool, always check to see that the source of light directly. switch lever actuates properly and returns to the Pull the switch lever to light up the lamp.
-
Page 8: Operation
Installing or removing socket ASSEMBLY CAUTION: Before operation, make sure that CAUTION: Always be sure that the tool is the socket is properly locked onto the socket switched off and the battery cartridge is removed adaptor. Incomplete attachment of the socket may before carrying out any work on the tool. cause injury. -
Page 9: Optional Accessories
M8 (5/16") bolt/nut. (works as 13mm socket) ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 12 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885834-226 www.makita.com 20200824...
