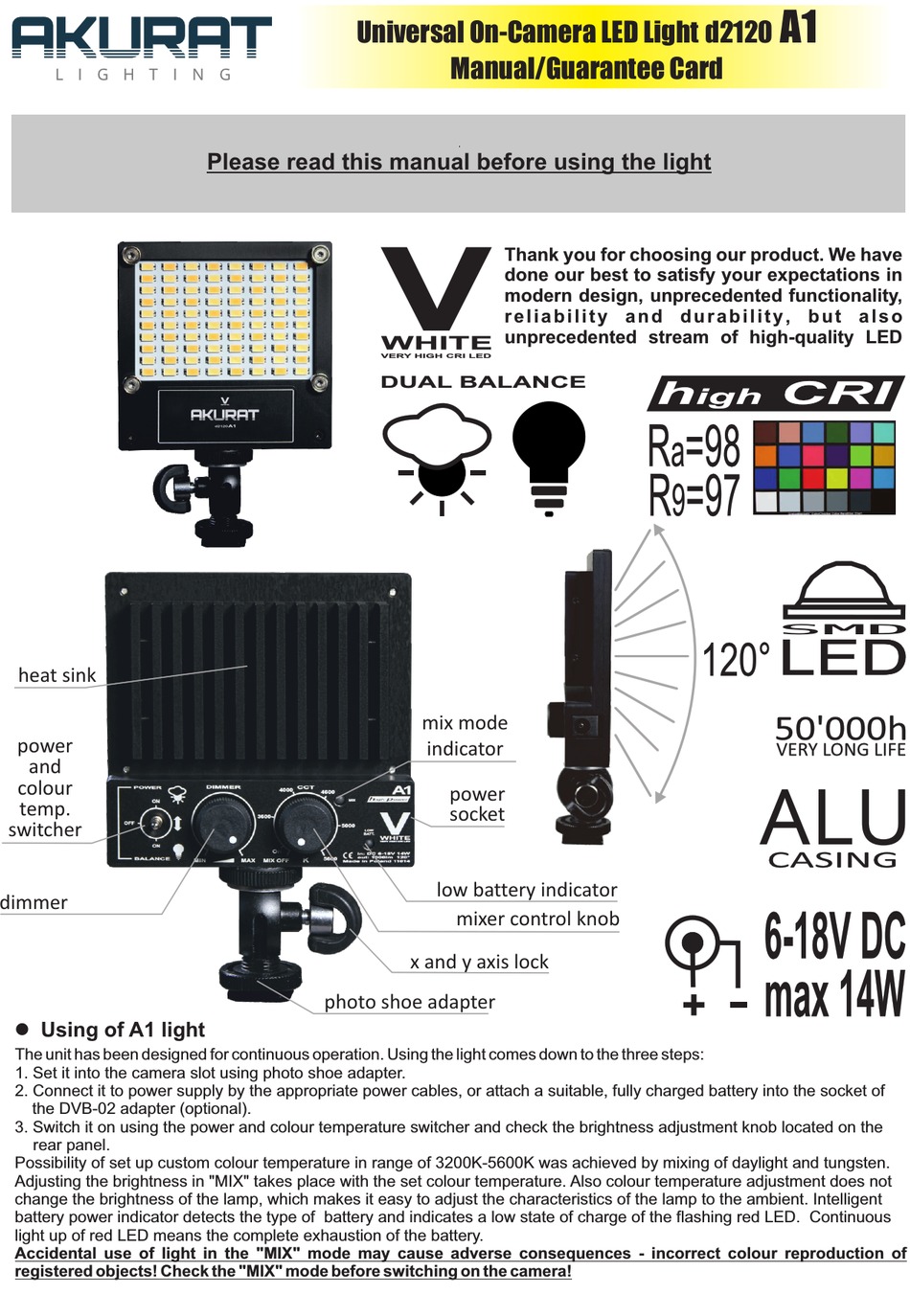

Akurat lighting d2120 A1 Manual

heat sink
power
and
colour
temp.
switcher
dimmer
l Using of A1 light
The unit has been designed for continuous operation. Using the light comes down to the three steps:
1. Set it into the camera slot using photo shoe adapter.
2. Connect it to power supply by the appropriate power cables, or attach a suitable, fully charged battery into the socket of
the DVB-02 adapter (optional).
3. Switch it on using the power and colour temperature switcher and check the brightness adjustment knob located on the
rear panel.
Possibility of set up custom colour temperature in range of 3200K-5600K was achieved by mixing of daylight and tungsten.
Adjusting the brightness in "MIX" takes place with the set colour temperature. Also colour temperature adjustment does not
change the brightness of the lamp, which makes it easy to adjust the characteristics of the lamp to the ambient. Intelligent
battery power indicator detects the type of battery and indicates a low state of charge of the flashing red LED. Continuous
light up of red LED means the complete exhaustion of the battery.
Accidental use of light in the "MIX" mode may cause adverse consequences - incorrect colour reproduction of
registered objects! Check the "MIX" mode before switching on the camera!
Universal On-Camera LED Light d2120
Please read this manual before using the light
photo shoe adapter
Manual/Guarantee Card
Thank you for choosing our product. We have
done our best to satisfy your expectations in
modern design, unprecedented functionality,
r e l i a b i l i t y a n d d u r a b i l i t y , b u t a l s o
unprecedented stream of high-quality LED
mix mode
indicator
power
socket
low battery indicator
mixer control knob
x and y axis lock
A1
SMD
