S E C T O R

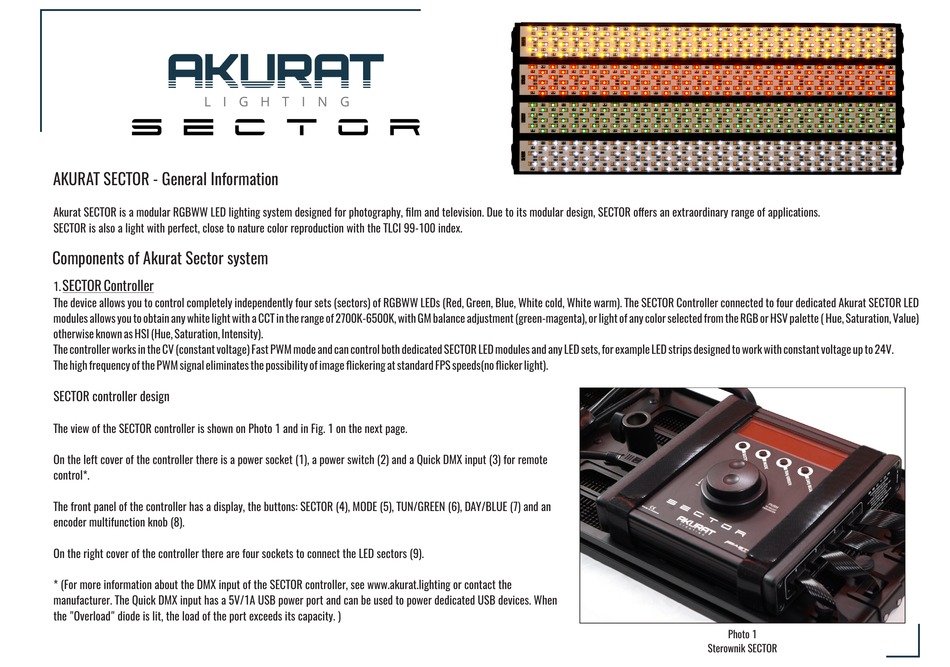

AKURAT SECTOR - General Information
Akurat SECTOR is a modular RGBWW LED lighting system designed for photography, film and television. Due to its modular design, SECTOR offers an extraordinary range of applications.
SECTOR is also a light with perfect, close to nature color reproduction with the TLCI 99-100 index.
Components of Akurat Sector system
SECTOR Controller
1.
The device allows you to control completely independently four sets (sectors) of RGBWW LEDs (Red, Green, Blue, White cold, White warm). The SECTOR Controller connected to four dedicated Akurat SECTOR LED
modules allows you to obtain any white light with a CCT in the range of 2700K-6500K, with GM balance adjustment (green-magenta), or light of any color selected from the RGB or HSV palette ( Hue, Saturation, Value)
otherwise known as HSI (Hue, Saturation, Intensity).
The controller works in the CV (constant voltage) Fast PWM mode and can control both dedicated SECTOR LED modules and any LED sets, for example LED strips designed to work with constant voltage up to 24V.
The high frequency of the PWM signal eliminates the possibility of image flickering at standard FPS speeds(no flicker light).
SECTOR controller design
The view of the SECTOR controller is shown on Photo 1 and in Fig. 1 on the next page.
On the left cover of the controller there is a power socket (1), a power switch (2) and a Quick DMX input (3) for remote
control*.
The front panel of the controller has a display, the buttons: SECTOR (4), MODE (5), TUN/GREEN (6), DAY/BLUE (7) and an
encoder multifunction knob (8).
On the right cover of the controller there are four sockets to connect the LED sectors (9).
* (For more information about the DMX input of the SECTOR controller, see www.akurat.lighting or contact the
manufacturer. The Quick DMX input has a 5V/1A USB power port and can be used to power dedicated USB devices. When
the "Overload" diode is lit, the load of the port exceeds its capacity. )
Photo 1
Sterownik SECTOR
Advertisement
Table of Contents
Related Manuals for Akurat lighting SECTOR
Summary of Contents for Akurat lighting SECTOR
- Page 1 HSI (Hue, Saturation, Intensity). The controller works in the CV (constant voltage) Fast PWM mode and can control both dedicated SECTOR LED modules and any LED sets, for example LED strips designed to work with constant voltage up to 24V.
- Page 2 S/N 200501 011 OVERLOAD PUSH TO SELECT PARAMETER S E C T O R Fig.1 SECTOR Controller S E C T O R...
- Page 3 - in RGB mode, it loads blue light: R = 0, G = 0, B - the maximum of the current RGB values - in HSV mode, it loads the blue light: HUE = 240 °, SAT = 100%, VAL - the current value S E C T O R Fig.2 SECTOR Controller buttons...
- Page 4 SECTOR 4 Panel Grip This grip allows you to connect four SECTOR LED modules, attach the SECTOR controller and mains adapter, or V-Lock Power Plate for SECTOR, to create an LED panel and attach it to a standard lighting tripod.
- Page 5 The cable should be connected before placing the SECTOR LED module on the mounting pins of the grip. Securing knobs lock the cables against accidental disconnection. SECTOR 8 OmniGrip is equipped with a holder (2) for attaching a 60cm paper lantern (3), which is a good diffuser for LED modules, but which can also make such an omnidirectional panel visible in the frame as a glowing element of the scenery.
- Page 6 Inside the PCB, there is a slightly warm electronic system which raises the voltage, so it is necessary to ensure free air flow through the ventilation slots (2) in the plate body. The board is equipped with Velcro fastenings (3) which allow to install it to SECTOR 4 Panel Grip in place of the power supply. To secure the plate with Velcro strip, unscrew the V-Lock socket fixing screws (4), insert and fasten the Velcro strips underneath the socket and then tighten the socket again.
