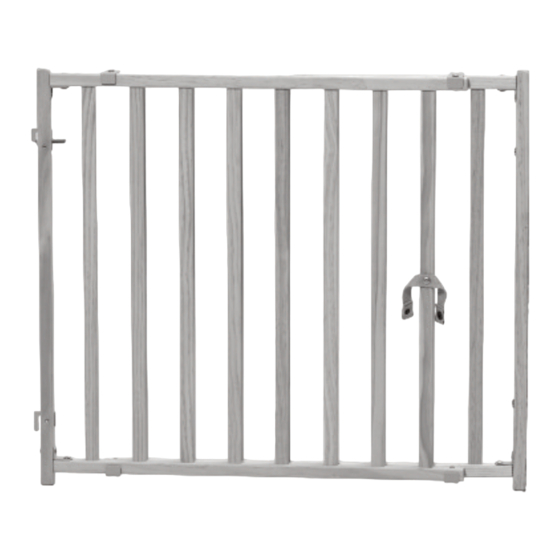

Assembly Instructions for Model Number 2924WEW-2 (expands 50.25"- 94" wide x 24" tall)
IMPORTANT INFORMATION
Unwrap and remove all parts from the box. Keep the box and packing material until the product is
assembled. In case of return or exchange, failure to return product in similar condition as received could
result in limited reimbursement. Please save sales receipt as proof of purchase for warranty purposes.
Check to ensure you have all the parts below. If you discover any parts are missing, immediately call
our toll-free service helpline at 1-800-428-8560 (Monday - Friday 9 a.m. to 4 p.m. EST) or
at info@midwesthomes4pets.com.
WARNING: NOT intended for use with children. For pet use only. Do not place on top of stairs.
Follow installation instructions. Latches shown in picture on carton differ from
actual product.
PARTS IDENTIFICATION
A
Wood Gate – Left Piece
B
Wood Gate – Right Piece
C
Carriage Bolts (2)
D
Barrel Nuts (2)
E
Short Eye Screws (4)
F
Long Eye Screws (4)
G
Allen Wrench (2)
ASSEMBLY INSTRUCTIONS
1. Place the gate pieces together in the
entryway and expand as needed to
ensure that the gate is the correct size.
Be sure the gate pieces are right side up
(see illustrations), then mark the
positions for the eye screws in the
opening of the entryway to align with the
spring-loaded latches and hooks on the
gate. The lower eye screws will be
approximately 4" above the floor and the
upper eye screws will be about 20"
above the floor.
2. Using the carriage bolts and barrel nuts,
align the hardware holes provided and
connect the two pieces near the top and
bottom of the gate. Use the Allen
wrenches to tighten.
midwesthomes4pets.com
Muncie, Indiana 47308
A
C
D
Spring-
Loaded
Latch
Hook
800-428-8560
P.O. Box 1031
B
E
F
Top
Bottom
When the two Gate
pieces are placed
together, the inner posts
are longer at the bottom
of the Gate.
Spring-
Loaded
Latch
Hook
1.
