Assembly Instructions for Model Number 2 2 9 9 2 2 4 4 W W E E W W (expands 53"- 96" wide)
IMPORTANT INFORMATION
Unwrap and remove all parts from the box. Keep the box and packing material until the product is assembled. In case
of return or exchange, failure to return product in similar condition as received could result in limited reimbursement.
Please save sales receipt as proof of purchase for warranty purposes. Check to ensure you have all the parts below. If
you discover any parts are missing, immediately call our toll-free service helpline at 1-800-428-8560
(Monday - Friday 9 a.m. to 4 p.m. EST) or at info@midwesthomes4pets.com.
W W A A R R N N I I N N G G : : N N O O T T i i n n t t e e n n d d e e d d f f o o r r u u s s e e w w i i t t h h c c h h i i l l d d r r e e n n . . F F o o r r p p e e t t u u s s e e o o n n l l y y . . D D o o n n o o t t p p l l a a c c e e o o n n t t o o p p o o f f s s t t a a i i r r s s . . F F o o l l l l o o w w i i n n s s t t a a l l l l a a t t i i o o n n
i i n n s s t t r r u u c c t t i i o o n n s s . .
PARTS IDENTIFICATION

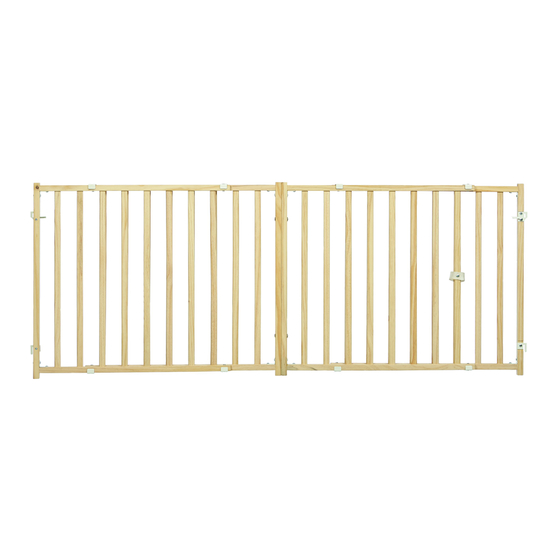

A A Wood Gate- Left Piece
B B Wood Gate- Right Piece
C C Carriage Bolts (2)
D D Barrel Nuts (2)
E E Short Eye Screws (4)
F F Long Eye Screws (4)
ASSEMBLY INSTRUCTIONS
1 1 . . Place the Gate pieces together in the entryway
and expand as needed to ensure that the
Gate is the correct size. Be sure the Gate
pieces are right side up (see illustrations),
then mark the positions for the Eye Screws in
the opening of the entryway to align with the
spring-loaded latches and hooks on the Gate.
The lower Eye Screws will be approximately 4"
above the floor and the upper Eye Screws will
be about 20" above the floor.
2 2 . . Using the Carriage Bolts and Barrel Nuts, align
the hardware holes provided and connect the
two pieces near the top and bottom of the Gate.
800 428 8560
midwesthomes4pets.com
P .O. Box 1031
Muncie, Indiana 47308
A A
C C
Spring-Loaded
Latch
Hook
by
B B
E E
D D
Top
Bottom
When the two Gate pieces
are placed together, the inner
posts are longer at the
bottom of the Gate.
F F
Spring-Loaded
Latch
Hook
