Hydro-Force Nautilus MX200H Operating Manual

Portable extractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Nautilus MX200H
Operating Manual
#LMANN07 Revised: 02-16-2018
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nautilus MX200H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hydro-Force Nautilus MX200H

Summary of Contents for Hydro-Force Nautilus MX200H

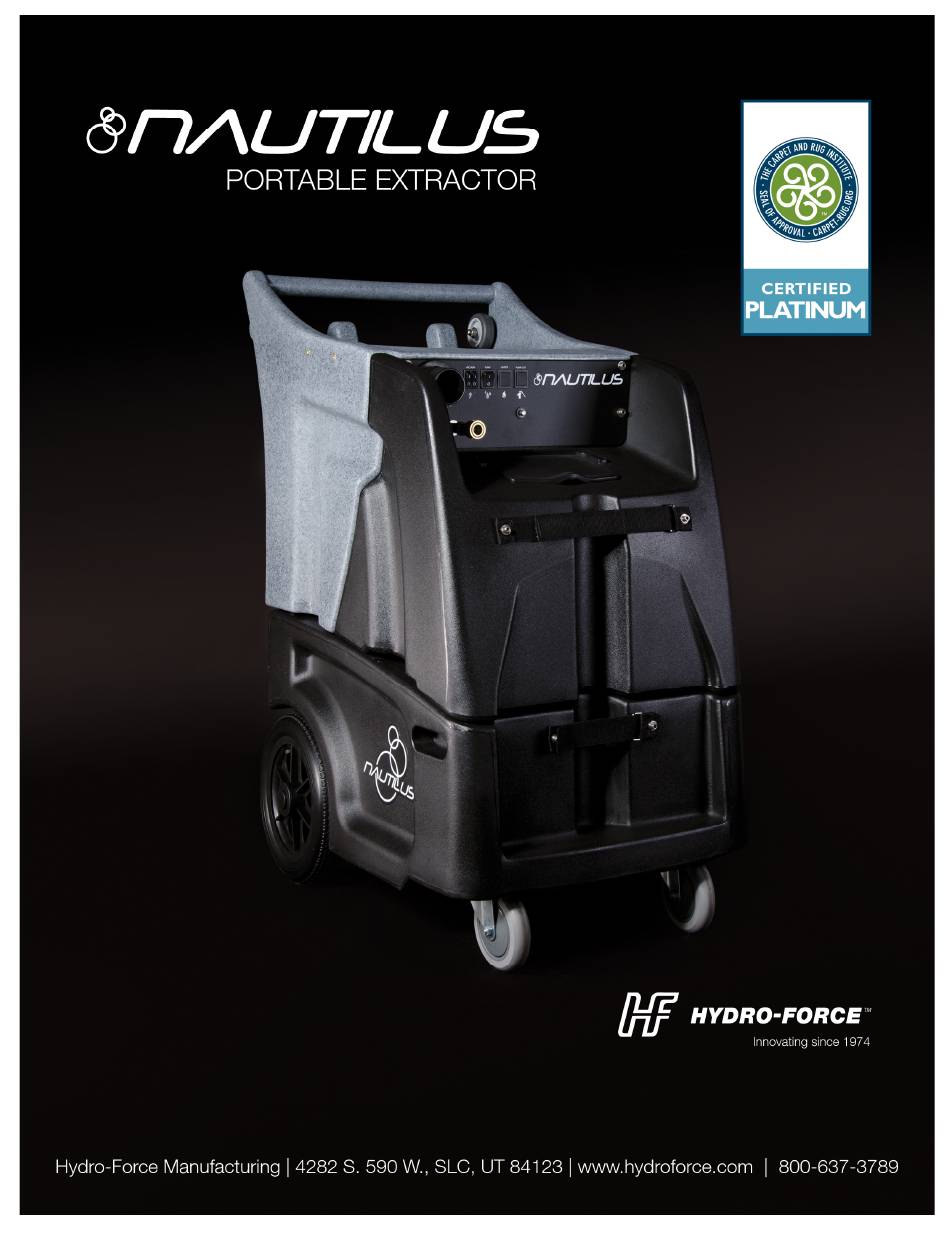

  • Page 1 Nautilus MX200H Operating Manual #LMANN07 Revised: 02-16-2018...

  • Page 2: Table Of Contents

    Nautilus MX200H Operating Manual TABLE OF CONTENTS TOPIC PAGE # • Introduction • Technical Specifications • Optional Equipment SECTION 1: Operational Safety • Electrical Safety • Mechanical Safety SECTION 2: Operation Procedures • Vacuum Connections • Electrical Supply • Water Supply & Chemicals •...

  • Page 3: Introduction

    The Hydro-Force Nautilus MX200H is intended for commercial use only. This manual will provide users with the knowledge required to operate the Nautilus MX200H safely, to understand how to properly operate and maintain the machine, and to ensure that the equipment operates at its maximum performance level.

  • Page 4: Technical Specifications

    Technical Specifications MX200H High Pressure Extractor Height: 42-1/4” Length: 34-3/8” Width: 23-3/8” Weight: 116 lbs. Solution Tank Capacity: 12 gallon Recovery Tank Capacity: 12 gallon Solution Pump: Pump-Tec #114 pump with 1.4ampMotor 0-200 psi – 0.89 gpm Vacuum Motors: Two AMETEK Lamb 5.7” diameter 2-Stage – tangential discharge Can be operated in series or parallel configuration Pump-out Pump: FloJet 120VAC 4.5 gpm...

  • Page 5: Optional Equipment

    Additional / Optional Equipment Wand Glide – Delrin AW529D Wand Glide – Teflon AW529T 18” Bottom Velcro Strap for Wand Holder NM5841 Hy-Dry Deluxe Upholstery Tool: AW50D 1-1/2” Vacuum Hose: (Sold per foot – No cuffs) AH36 2” cuff for 1-1/2” Vac Hose: AH46 1-1/2”...
  • Page 6 Section Safety This machine is an electrical appliance. Care must be taken to reduce the risk of electrical shock. READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING THE MX200H. • To reduce the risk of property damage or injury, repairs to electrical systems should only be performed by experienced technicians.
  • Page 7 • Solvent-based or water-based solutions containing solvents may damage the pump, hoses, and other components. Do not assume chemical compatibility. Contact your distributor or Hydro-Force if you have questions regarding the compatibility of your chemicals with the machine.

  • Page 8: Vacuum Connections

    Section Vacuum Connections The MX200H has a unique vacuum system which allows you to connect your vacuums in either parallel or in series. Vacuum connections can be changed quickly, with only a screw driver. While there is debate on which vacuum alignment provides the best extraction, this much is true: •...
  • Page 9 SET UP AND OPERATION 1. Electrical Cords: Two 25’ power cords are supplied with the Nautilus MX200H. Cord#2 will power the heater and the waste pump if so equipped. The amperage required by each cord requires that the two cords be plugged into separate circuits: •...
  • Page 10 2A. Water Supply & Chemical Mixing– Manual Fill: • Pour up to 12 gallons of hot water into the solution tank at the front of the machine. The water temperature cannot exceed 130° ° ° ° F. • Measure and add the appropriate amount of the desired liquid chemical to the water in the solution tank. The amount of chemical will vary depending on the type of chemical used, the amount of water in the tank, and the material being cleaned;...
  • Page 11 Dilution 85 - 1 Chemical Feed Hose Metering Tip Kit (Hydro-Force Item# PDE001) contains 14 different colored metering tips, allowing dilution rates from 11:1 up to 427:1. Refer to the chart below to select the tip that meets the dilution rate for your chemical application.

  • Page 12: Water Supply & Chemicals

    Connect the other end of the hose to a water faucet, and then turn on the water. • Hot water can be used as long as the temperature does not exceed 130°F. • Faucet adapter kits (Hydro-Force item #AX21 & AX22) are available that allow connection to different types of faucets if needed.
  • Page 13 3. Priming the High-Pressure Pump: Once water is in the solution tank, the high pressure pump must be primed: • There is a priming hose included with the machine. Connect the priming hose to the solution outlet – female quick connect on the front of the machine. •...
  • Page 14 5. 1750W Heater Operation: To prevent damage to the heater, the heater must have water in it before it is turned ON. Fill solution tank, prime the pump and connect solution hoses before turning heater While the heater allows for maximum operating temperature of approximately 190ºF, the temperature of the cleaning water delivered to the tool is dependent on two factors: •...

  • Page 15: Foam Downer

    7. Optional Foam Downer: A key problem with portable extractors is that they have small tanks where foam dissipates slowly. If you have had issues with foam or are anticipating foaming problems, you will want to use a Foam Downer. Foam can be drawn into the vacuums before the vacuum shutoff closes.
  • Page 16 8. Connection of Optional Pump-Out Hose: If your machine has the Optional Auto Pump-Out System you may want to connect the Pump-Out Hose. The pump-out hose is a 50’ section of 3/4” garden hose. (Use of smaller diameter hose may reduce flow.) •...

  • Page 17: Shutdown Procedures

    Shutdown Procedures: • If using the optional auto-fill system, turn the water supply off before finishing each job. This will allow use of the water and chemical already in the tank, and will reduce the amount of excess water to be disposed of later.

  • Page 18: Accessory Storage

    Accessory Storage Options: The MX200H is designed to make it easier for the operator to transport the machine and the most common cleaning accessories. Bucket & Sprayer Storage The top of the MX200H is sized and recessed to hold a five gallon bucket or two one-gallon chemical bottles as well as two 2QT sprayers.

  • Page 19: Troubleshooting

    Section Troubleshooting Troubleshooting – Nautilus MX200H Problem Cause Solution Machine not Building circuit breaker tripped. Reset breakers or move cords to other outlets turning on - Faulty power cord Replace cord (1696-6412) No power Faulty switches or internal wiring Check wiring & test switches - Repair as needed *...
  • Page 20 Problem Cause Solution Dual Circuit Cords on the same circuit Move one cord to outlet on different circuit Indicator No voltage from one/ both outlets Check circuit breakers – Reset breakers or move cords Not Lighted Light Bad Replace Light Dual Circuit Indicator Bad Replace indicator If hot &...
  • Page 21 Problem Cause Solution Tool won't Jets clogged Clean out or replace jets spray - low or Inline filter clogged Clean out or replace filter uneven spray Jets worn Replace jets Jets not aligned properly Re-align jets Tool valve faulty Repair or replace valve Quick connects or hoses restricted Clean out or replace quick connects and/or hoses Solution Tank...

  • Page 22: Solution Flow Path

    MX200H Solution Flow Path Optional Auto Optional – Auto Fill Float Fill Inlet Quick Valve Assembly Connect Solution Tank Outlet Quick Connect Filter Pressure Regulator 1683-5656 Chemical Jug Pump – AP51 1750W Heater Denotes Water Denotes by-pass Denotes Denotes flow in high water flow from Chemical flow incoming water...
  • Page 23 MX200H Wiring Diagram – Cord #1 PUMP OUT HEATER SOL PUMP VAC 2 VAC 1 CIRCUIT BREAKER 3AMP 12ga COOLING FAN CORD #1 12/3 SOLUTION VAC2 VAC1 PUMP Machine Base...
  • Page 24 MX200H Wiring Diagram – Cord #2 PUMP OUT HEATER SOL PUMP VAC 2 VAC 1 CORD #2 12/3 Dual Circuit Indicator 1750W Heater PUMP OUT Machine Base...
  • Page 25 NAUTILUS MX200H SWITCH PANEL: (Shown with optional Pump-Out switch) Heater – Power from Cord #2. When the switch is turned to the ON position power is supplied to the 1750W heating element. Vacuum #1 – Power from Cord #1. When the switch is turned to the ON position power is supplied to the vacuum motor.
  • Page 26 Section Maintenance Proper maintenance is required to keep the MX200 H operating properly, prevent downtime and to extend the life of your equipment. This machine is an electrical appliance. Care must be taken to reduce the risk of electrical shock. Disconnect electrical power before performing any service or maintenance inside machine base or before testing or repairing switches or power cords.
  • Page 27 CLEAN CHEMICAL FEED FILTER & FOOT VALVE: (If so equipped) Part of the optional Auto Fill & Chemical Feed system, the Filter & Foot Valve is on the end of the chemical feed hose that is placed in the chemical jug as part of the chemical feed system. Regularly examine the filter and clean as needed.
  • Page 28 CLEAN THE HYDRO-FILTER II: (If so equipped) When used with the MX200, build-up of debris in the filter screen of the optional Hydro-Filter II will reduce the vacuum air flow and may cause a significant decrease in water recovery. A torn filter screen will allow debris past the filter and into the recovery tank.
  • Page 29 CLEAN WASTE PUMP-OUT PUMP: (If so equipped) Build-up of fine silt inside the optional Waste Pump can clog the pump even if the pump is not used, so this maintenance procedure should be performed regardless of whether the Waste Pump has been used. •...
  • Page 30 FLUSH SOLUTION TANK AND PUMP: (continued from previous page) • Disconnect the solution hose and tool. • Use the vacuum hose to vacuum the remaining acid solution out of the solution tank. • Pour two or three gallons of clean water into the solution tank. •...
  • Page 31 FLUSH CHEMICAL SYSTEM: (If so equipped) Chemical build-up in the optional Auto Fill chemical system can prevent the system from drawing chemical. • Rinse the chemical system with fresh water (For heavy chemical build-up, a mild acid can be added to the rinse water.) •...
  • Page 32 CLEAN RECOVERY TANK DRAIN Debris and sand accumulation in the drain valve can damage the valve or prevent it from closing completely. This will result in dirty water leaking from the valve. Use of the Hydro-Filter and regular cleaning of the recovery tank will help prevent this, but occasionally the drain valve will require cleaning or replacement.
  • Page 33 Storage Prep and Freeze Protection Procedures: Your Nautilus MX200H must be protected from freezing. Freezing can cause serious damage to the pump, pump-out, auto-fill float valve, and any other component containing water. If the MX200H is transported or stored in freezing temperatures, the following procedures should be performed.
  • Page 34 Section Parts Replacement parts available for repair of your MX200H. MX200H PUMP – AP51 PARTS ASSEMBLY KIT C – PT030 KIT A – PT022 KIT B – PT051...

  • Page 35: Pump

    PUMPTEC #114 PUMP – AP50 ITEM DESCRIPTION PART NUMBER KIT A PLUNGER & SEALS PT052 KIT B VALVES & O-RINGS PT051 KIT C CAM & BEARING PT030 MANIFOLD 6-PORT 0114-0004-3110 PUMP HEAD 0114-0002-0111 RETAINER PLATE 0111-0014-0001 BOLT-1/4-20X1 ¼-SHCS-SS HEAD BOLT MOUNT BOLT BOLT-1/4-20X2 1/2-SHCS-SS WASHER FLAT M6 STAINLESS STEEL...
  • Page 36 – M013 OPTIONAL AUTO-FILL ASSEMBLY NM5751 BR282A AH102B BR282A NM5751 BR286 NM5740 Float Valve Assembly See Parts Breakdown on Next Page BR286 BR138...
  • Page 37 OPTIONAL AUTO-FILL FLOAT VALVE ASSEMBLY NM5740...
  • Page 38 Optional Pump-Out Pump AP37 PARTS ASSEMBLY...
  • Page 40 CONTROL PANEL 23 & 23A REAR VIEW - BASE & BASE SKIRT 55 & 56 55 & 56 41 & 41A HINGE SCREWS...
  • Page 41 14 & 14A 36 & 36A 27 & 27A REAR VIEW – BASE, BASE SKIRT & RECOVERY TANK Shown with optional Pump-Out VACUUM PLUG ASSEMBLY...
  • Page 42 9, 64 &66 9, 30 & 50 9, 30 & 50 3, 58 & 59 55 & 56 55 & 56 3, 58 & 59 TOP VIEW OF BASE...
  • Page 43 VACUUM MOUNTS & CONNECTIONS 9, 54 & 64 9, 54 & 64...
  • Page 44 63 & 55 61 & 62 3 & 59 61 & 62 3 & 59 BOTTOM VIEW OF BASE 9 & 54 9 & 54 9, 64 &66 PUMP & REGULATOR...
  • Page 45 80 & 55 36 & 36A 9 & 41 BOTTOM VIEW SOLUTION TANK & BASE SKIRT...
  • Page 46 BOTTOM VIEW SOLUTION TANK 9, 30 & 31 9, 30 & 31 INSIDE SOLUTION TANK...
  • Page 47 INSIDE RECOVERY TANK VACUUM SHUTOFF AND OPTIONAL PUMP-OUT FILTER REMOVED INSIDE RECOVERY TANK WITH OPTIONAL PUMP-OUT FILTER IN PLACE VACUUM SHUTOFF ASSEMBLY...
  • Page 48 OPTIONAL - PUMP-OUT CONNECTIONS 97 & 9...
  • Page 49 OPTIONAL PUMP-OUT PARTS FLOW...
  • Page 50 HEATER PARTS 42, 42A & 117...
  • Page 51 KEY PART # DESCRIPTION KEY PART # DESCRIPTION RECOVERY TANK ADAPTER ¼” M-F NM5704 BR174 NM5702 SOLUTION TANK NM5751 WASHER ½” FLAT SS (Behind control panel) PFA11 WASHER 5/16” FLAT SS NM5751A WASHER ½” FLAT SS WITH NEOPRENE BACKING NM5724 WHEEL 2-1/2”...
  • Page 52 KEY PART # DESCRIPTION KEY PART # DESCRIPTION PHY094-034 NUT 10-24 NYLOCK SS PLUG ¼” MPT HEX BRASS BR222 NM5748 AXLE REAR WHEELS – 22.5” NM5086 HOSE ½” ID CLEAR COIL AP51 200PSI PUMP WITH MOTOR NM5082 HOSE 3/8” ID CLEAR COIL 1683-5656 PRESSURE REGULATOR 200PSI BR022...
  • Page 53 KEY PART # DESCRIPTION KEY PART # DESCRIPTION HOSE ¾” ID CLEAR COIL MOISTURE BARRIER NM5093 NM5737 PH09 HOSE CLAMP NM5433 1/4” INTERNAL STAR WASHER SS AP37 PUMP-OUT PUMP NM5705C DECAL CSA WARNING PF20381-010 ELBOW 90 ¾” BARB QUAD FTTG NM5025 RIVET –...

  • Page 54: Pump-Out Pump

    DESCRIPTION HOSE TYPE LENGTH NOTES VAC HOSE 2” VAC – NM5726 29” TANK END: REC TANK TO MANIFOLD SOLD PER FT 1 - NM5713 2 – NM5025 VAC END: HOSE CLAMP PA051 VAC HOSE 2” VAC – NM5726 9.5” VAC END: VAC 1 TO MANIFOLD SOLD PER FT HOSE CLAMP...

  • Page 55: Warranty

    Section Limited Warranty Your Nautilus MX200H is designed to give you years of reliable service. If a problem should arise use the troubleshooting section in the operation manual to diagnose and correct the problem if possible. If you are unable to determine the cause or solution to the problem contact your distributor or Hydro-Force for assistance.
