Preface
Thanks for your favor in our product. This manual provides guidance for you to use the product. To avoid
body injury or property loss caused by misoperation, please carefully read the Safety Information
Booklet before using the product.
This manual is applicable to the following product:

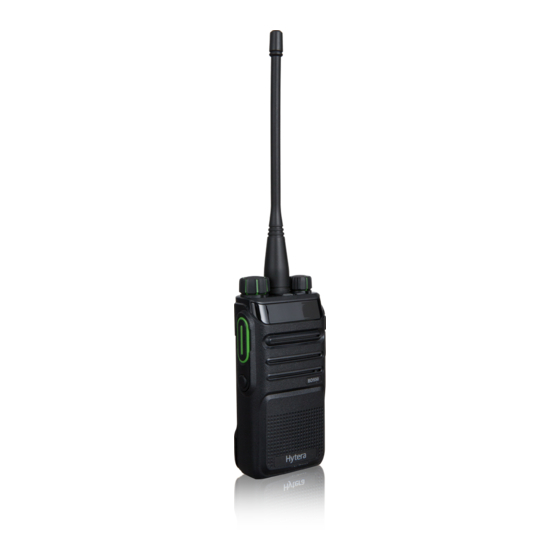

BD55X Digital Portable Radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BD55X and is the answer not in the manual?

Questions and answers

Related Manuals for Hytera BD55X

Summary of Contents for Hytera BD55X

  • Page 1 Thanks for your favor in our product. This manual provides guidance for you to use the product. To avoid body injury or property loss caused by misoperation, please carefully read the Safety Information Booklet before using the product. This manual is applicable to the following product: BD55X Digital Portable Radio...

  • Page 2: Copyright Information

    Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
  • Page 3 Antenna should be kept away from eyes.  When worn on the body, always place the radio in a Hytera's approved clip, holder, holster, case, or body harness for this product. Using approved body-worn accessories is important...

  • Page 4: Eu Regulatory Conformance

    Hytera's or other manufacturer's non-approved accessories may result in exposure levels, which exceed the FCC's occupational/controlled environment RF exposure limits.  If you are not using a body-worn accessory and are not using the radio in the intended use position in front of the face, then ensure the antenna and the radio are kept at least 2.5 cm...
  • Page 5 Please note that the above information is applicable to EU countries only.

  • Page 6: Items In The Package

    1. Items in the Package Please unpack carefully and check if all items listed below are received. If any item is missing or damaged, please contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Antenna Battery Belt Clip Charger Strap Power Adapter Documentation Kit...

  • Page 7: Product Overview

    2. Product Overview Product Controls Note For your convenience, you may request your dealer to program the SK as the shortcut to a radio feature. LED Indication LED Indicator Radio Status Flashes green Being turned on. Glows green Receiving. Glows red Transmitting.

  • Page 8: Before Use

    3. Before Use Attaching the Antenna Place the antenna in its receptacle. Step 1 Rotate the antenna clockwise. Step 2 Caution Do not hold the radio by its antenna; otherwise, the radio performance may be reduced and the life span of the antenna may be shortened.

  • Page 9: Checking The Battery Power

    recommended that your radio remain powered off during charging. The LED indicator on the charger shows the charging status. For details, see the following table. LED Indicator Charging Status Glows green The battery is inserted incorrectly or fully charged. Glows red The battery is charging.

  • Page 10: Basic Operations

    4. Basic Operations If you want to… Do this… Turn on the radio Rotate the On-Off/Volume Control knob clockwise. Turn off the radio Rotate the On-Off/Volume Control knob counterclockwise. Increase/Decrease Rotate the On-Off/Volume Control knob clockwise/counterclockwise after the volume turning on the radio. Select a channel Rotate the Channel Selector knob.

  • Page 11: Call Services

    5. Call Services Call on Digital Channel On the digital channel, you can initiate or respond to a group call or private call. A group call is a call from an individual user to a group of users. A private call is a call from an individual user to another individual user.

  • Page 12: Optional Features

    6. Optional Features The following features need to be programmed by your dealer. Please contact your dealer for detailed operations. Type Feature Description Allows you to select a zone. The radio supports up to 3 zones, with a Zone maximum of 16 channels per zone. Power Level Allows you to switch the transmit power level between high and low.

  • Page 13: Troubleshooting

    7. Troubleshooting Phenomena Analysis Solution The battery may be installed Remove and reattach the battery. improperly. The radio cannot The battery power may run out. Recharge or replace the battery. be turned on. The battery may suffer from Clean the battery contacts or replace the poor contact caused by dirtied battery.
  • Page 14 Phenomena Analysis Solution You may be too far away from Move towards other members. other members. locate unfavorable position. example, your communication Move to an open and flat area, and restart the The noise is too blocked high radio to try again. loud.

  • Page 15: Care And Cleaning

    8. Care and Cleaning To guarantee optimal performance as well as a long service life of the product, please follow the tips below. Product Care  Do not pierce or scrape the product.  Keep the product far away from substances that can corrode the circuit. ...

  • Page 16: Optional Accessories

    9. Optional Accessories Contact your local dealer for the optional accessories of the product. Caution Use the accessories specified by the Company only; otherwise, the Company shall not be liable for any loss or damage arising out of use of unauthorized accessories.
