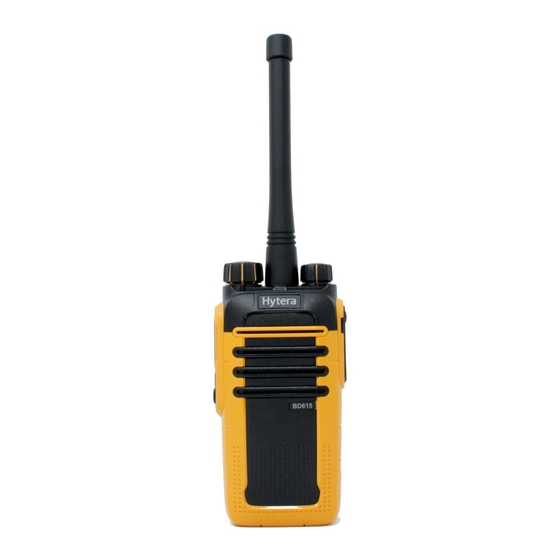

- Page 1 DIGITAL PORTABLE RADIO OWNER’S MANUAL...
- Page 2 Preface Welcome to the world of Hytera and thank you for purchasing this product. This manual includes a description of the functions and step-by-step procedures for use. It also includes a troubleshooting guide. To avoid bodily injury or property loss caused by incorrect operation, please carefully read the Safety Information Booklet before use.
- Page 3 We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the Third Party products and Hytera is the trademark or registered trademark of Hytera Communications contents involved in this manual. Corporation Limited (the Company) in People's Republic of China (PRC) If you have any suggestions or would like to receive more information, and/or other countries or areas.
- Page 4 · Institute of Electrical and Electronic Engineers (IEEE) C95.1:2005 · When worn on the body, always place the radio in a Hytera-approved Edition holder, holster, case, or body harness or by use of the correct clip for this product.
- Page 5 Quand portés sur le corps, toujours place de la radio dans un étui, hytera approuvé titulaire, ou un harnais ou par l'utilisation de la habilité à exploiter l’équipemen. vidéo pour ce produit.utilisation des accessoires non approuvés...
- Page 6 SAR tests are conducted using standard operating positions accepted by the peuvent entraîner des fac qui dépassent les niveaux d'exposition FCC/ISEDC with the device transmitting at its highest certified power level professionnelle et environnementale contrôlée des limites d'exposition aux rf. in all tested frequency bands, although the SAR is determined at the highest Les opérations doivent satisfaire aux deux conditions suivantes: certified power level, the actual SAR level of the device while operating can...
- Page 7 Pour un fonctionnement porté sur le corps, cet appareil a été testé et répond aux directives d'exposition RF FCC/ISEDC lorsqu'il est utilisé avec un accessoire conçu pour ce produit ou lorsqu'il est utilisé avec un accessoire qui ne contient pas de métal. Le non-respect des restrictions ci-dessus peut entraîner une violation des lignes directrices sur l’exposition aux RF.
-
Page 8: Table Of Contents
Contents Product Care Items in the Package Items in the Package Product Cleaning Product Overview Optional Accessories Product Controls LED Indication Before Use Attaching the Antenna Attaching the Battery Attaching the Belt Clip Attaching the Accessories Charging the Battery Checking the Battery Power Basic Operations Call Services Call on Digital Channel... -
Page 9: Items In The Package
Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Item Quantity (PCS) Item Quantity (PCS) Radio Antenna Battery Belt Clip Charger Strap Documentation Power Adapter The frequency band is marked on the antenna label;... -
Page 10: Items In The Package
Product Overview Product Controls You can adapt your radio to use the SK as the shortcut to a radio feature. -
Page 11: Led Indication
LED Indication To remove the battery, make sure that the radio is turned off, and then slide the battery latch upwards to unlock the battery. LED Indicator Radio Status Attaching the Belt Clip Flashes green Being turned on. Glows green Receiving. -
Page 12: Checking The Battery Power
LED Indicator Alert Tone Battery Power Glows green Three beeps High Glows orange Two beeps Medium Glows red One beep Under the low battery threshold. Low battery Flashes red Please recharge or replace the tone battery. Basic Operations The LED indicator on the charger shows the charging status. For details, see the following table. -
Page 13: Call Services
Call Services Call on Digital Channel On the digital channel, you can initiate or respond to a group call or private call. A group call is a call from an individual user to a group of users. A private call is a call from an individual user to another individual user. Initiating a Call 1. -
Page 14: Optional Features
Optional Features The following features need to be programmed by your dealer. Please contact your dealer for detailed operations. Type Feature Description Zone Allows you to select a zone. The radio supports up to 3 zones, with a maximum of 16 channels per zone. Power Level Allows you to switch the transmit power level between high and low. -
Page 15: Troubleshooting
Troubleshooting Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The radio cannot be The battery power may run out. Recharge or replace the battery. turned on. The battery may suffer from poor contact caused by dirty or Clean the battery contacts or replace the battery. -
Page 16: Care And Cleaning
Optional Accessories To guarantee optimal performance as well as a long service life of the Use the accessories specified by Hytera only; otherwise, the product, please follow these tips. Company will not be liable for any loss or damage arising out of Product Care the use of any unauthorised accessories. - Page 17 Hytera Communications Corporation Limited. 2016 Hytera Communications Corporation Limited. All Rights Reserved. Address: Hytera Tower, Hi-Tech Industrial Park North, 9108# Beihuan Road, Nanshan District, Shenzhen, People's Republic of China Postcode: 518057 http:// www.hytera.com 是海能达通信股份有限公司的注册商标或商标...
