Summary of Contents for Teletronics International TT900

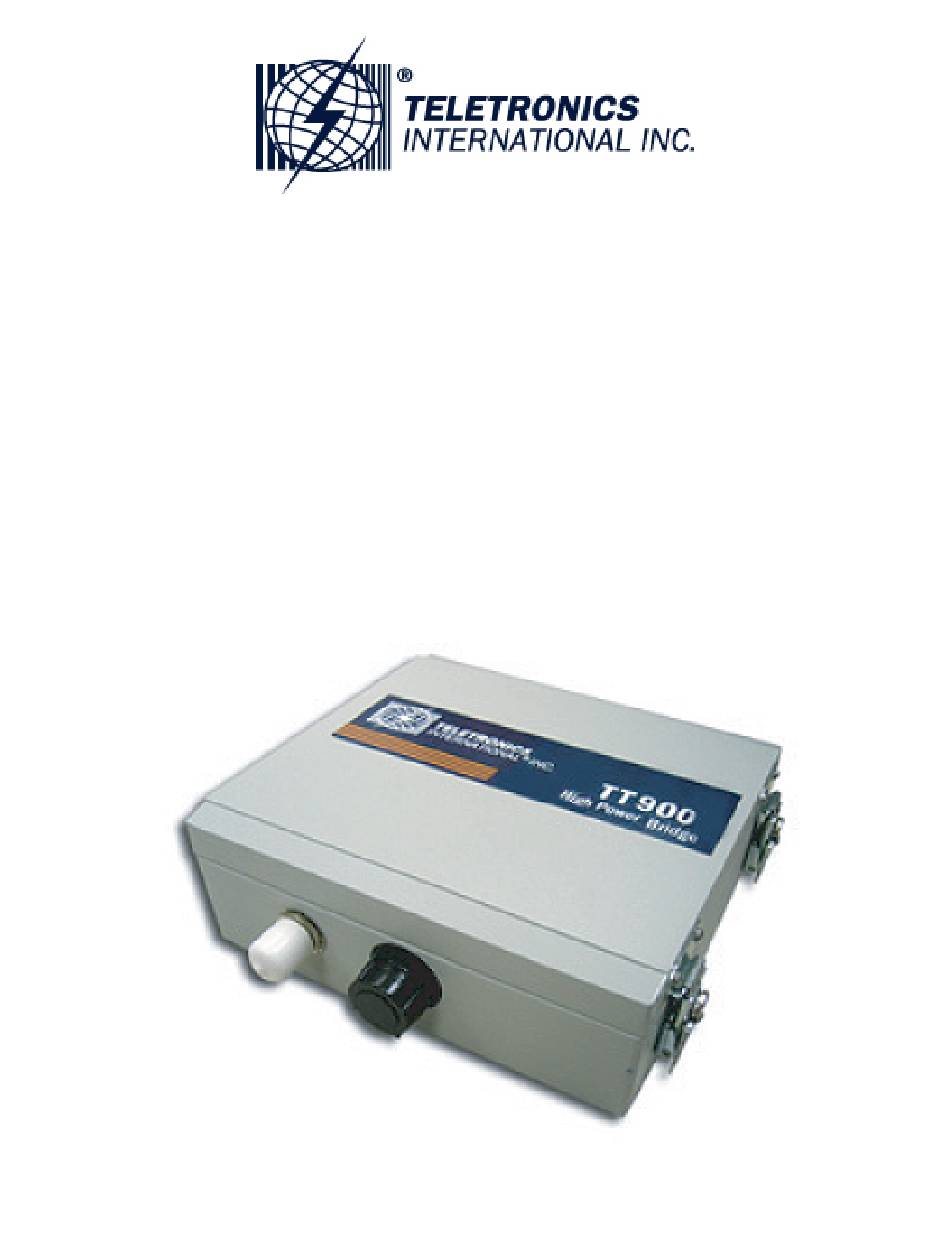

  • Page 1 TT™900 User Manual 802.11b/g 200mW...
  • Page 2: Table Of Contents

    Appendix B: RMA Policy …………………………………………………...…..51 Appendix C: Regulatory Information ……………………………………...…52 Appendix D: Contact Information ………………………………………...…..54 Appendix E: WDS Explained ……………………………………………...…..55 Appendix F: TT900 Upgrade FAQ …….…………………...…...……………..57 Appendix G: Antenna Diversity ……………………………………………..59 Appendix H: Troubleshooting ………………………………………………...60 Appendix I: Key Requirement Chart.…………………..……………………..61...
  • Page 3: Disclaimers

    Disclaimers No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from the copyright owner. All other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time.
  • Page 4: Introduction

    Introduction The TT900 is Teletronics’s answer to the ever growing demand for higher bandwidth and security in a wireless network environment. It is based on a brand new redesigned platform that not only offers faster performance and capacity but also supports all current pre IEEE 802.11i wireless security standards. The TT900 is housed in a weather-proof NEMA 4 enclosure, supports high power 802.11 b/g radio, industrial grade construction, multiple antenna options, surge...
  • Page 5: Product Features

    Product Features • Compact size for small enterprise or system integrate service market • Compliant with IEEE 802.11b/g specifications • Supports 64/128-bit WEP, WPA and IEEE802.1x • Intelligent firmware upgrade via Web browser • Built-in Web-based utility for easy configuration from any Web browser •...
  • Page 6 Radio Specifications • IEEE 802.11b/g 2.4 GHz mini-PCI card Specification Description Chipset MAC/BB Processor Atheros AR5414 IEEE 802.11b TX: ~1100 mA RX: ~600 mA Power Consumption IEEE 802.11g TX: ~1100 mA RX: ~600 mA Antenna Connector SMA connector IEEE 802.11b: •...
  • Page 7 LED Definition (Optional) Item Specification ON (Red) Power on Power No power On (Yellow) Connected RF(WLAN) Not connected Blinking(Green) Connected and transmitting On (Green) Connected Not connected Blinking(Green) Connected and transmitting Blinking left to Not connected (Scanning for AP) Received Signal Strength right Indicator (RSSI) Connected, indicating Received Signal...
  • Page 8 10 to 90% (non-condensing) Standards / Regulatory Compliance • CE, FCC Product Kit Part Listing 1. TT900 802.11b/g PCBA (1) 2. IEEE 802.11b/g mini-PCI radio card (1) 3. Power over Ethernet Injector (1) 4. 48VDC Power Adapter (1) 5. Ethernet Cable (2) 6.
  • Page 9: Installation

    Always double check for any missing parts from the kit you received before deployment. The next step is to set up the computer Ethernet interface for configuring the TT900. Since the default IP Address of the unit is on the 192.168.10.x IP range in both Client Bridge and AP mode you will need to set the Ethernet interface within the same IP range, where x will have to be a free IP address number from 1-254.
  • Page 10: Configuring Windows For Ip Networking

    Configuring Windows for IP Networking To establish a communication link between your PC and TT900, you will need to set up a static IP address for your computer first. This section helps you configure the network settings for your operating system. Please follow the...
  • Page 11 Click OK to finish configuration.
  • Page 12: Web Configuration Interface

    Web Configuration Interface Client Bridge Mode Default IP Address in Client Bridge Mode: 192.168.10.241 To access the web control interface please open up a browser window and type in the factory default IP address in the URL. Press Enter on your keyboard and a login prompt window similar to the one shown below will appear. There is no default User name or Password.
  • Page 13 Information Under the main web interface home page you will see the following configuration menu pages: Information, APs, Wireless, Security, Admin and Advanced. Detailed information for each section is provided below: Access Points (APs) The APs section displays available hotspots in the area along with the MAC address, SSID, Channel, Wireless mode, signal strength and transmission rate for each access point.
  • Page 14 Wireless...
  • Page 15 802.11g only network or both b/g networks. For b or g only wireless devices on the network, selecting 802.11b or 802.11g only mode will provide better performance than mixed mode. For TT900 the options of 802.11b, 802.11g only or mixed 802.11g and 802.11b are available.
  • Page 16 For the TT900: 902-928 GHz frequency range, there are only1 channel out of 2 channels available that do not overlap with one another.
  • Page 17 • Channel 48 = 5.22 – 5.25 Middle Band (5.25 - 5.35 GHz) – Maximum Output Power 200mW • Channel 52 = 5.25 – 5.28 • Channel 56 = 5.28 – 5.30 • Channel 60 = 5.30 – 5.32 • Channel 64 = 5.32 –...
  • Page 18 Security...
  • Page 19 WPA Configuration Short for Wi-Fi Protected Access, WPA is a Wi-Fi standard that was designed to improve upon the security features of WEP. WPA has the following improvements over WEP: • Improved data encryption through temporal key integrity protocol (TKIP). TKIP scrambles the keys using a hashing algorithm.
  • Page 20 Cipher Type • TKIP Temporal Key Integrity Protocol is an upgrade to the WEP known as WEP 1.1 that fixes known security problems in WEP’s implementation of the RC4 stream cipher. TKIP scrambles the keys using a hashing algorithm and by adding an integrity-checking feature, ensures that the keys haven’t been tampered with.
  • Page 21 the MAC address does not provide sufficient security because the MAC address of a wireless client can be spoofed. • Shared Key - Shared key authentication supports authentication of stations as either a member of those who know a shared secret key or a member of those who do not. Shared key authentication is not secure and is not recommended for use.
  • Page 22 Admin Device Name This is the name that the bridge will use to identify itself to external configuration and IP address programs. This is not the same as the SSID. It is okay to leave this blank if you are not using these programs. SNMP Setting SNMP enable Option to enable or disable SNMP support.
  • Page 23 Factory default setting for the read-only community string is set to "public". It is standard practice to change all the community strings so that outsiders cannot see information about the internal network. (In addition, the administrator may also employ firewalls to block any SNMP traffic to ports 161 and 162 on the internal network.) Change this value to have InterMapper use the new string when querying SNMP devices.
  • Page 24 Security This section is used to set up the administrative login name and password. User name This is the user name that you must type when logging into the web interface. Administrator Password This is the password that you must type when logging into the web interface. You must enter the same password into both boxes for confirmation.
  • Page 25 The TT900 has implemented a hardware modification authorization process to prevent use by fraudulent hardware from other manufacturers. This will require any hardware change on the radio card used on the TT900 to input a serial code generated based on each unique MAC address. Please contact Teletronics Support to a pickup a valid serial number to deactivate the pre-registration protection after a radio card swap.
  • Page 26 Advanced...
  • Page 27 Cloning Cloning Mode • WLAN Card If set to "WLAN Card", the MAC Address of the WLAN Card will be used. When multiple Ethernet devices are connected to the Bridge, the MAC Address of the Bridge will not change. • Ethernet Client If set to "Ethernet Client", the MAC Address from the first Ethernet client that transmits data through the Bridge will be used.
  • Page 28 802.11d 802.11d is a wireless network communications specification for use in countries where systems using other standards in the 802.11 family are not allowed to operate. The 802.11d specification is well suited for systems that want to provide global Roaming. ACK Timeout When a packet is sent out from 802.11 Station A it will wait for an 'ACKnowledgement frame' from 802.11 Station B.
  • Page 29: Access Point Mode

    Access Point Mode Default IP Address in Access Point Mode: 192.168.10.240 To access the web control interface please open up a browser window and type in the factory default IP address in the URL. Press Enter on your keyboard and a login prompt window similar to the one shown below will appear. There is no default User name or Password.
  • Page 30 Information Under the main web interface home page you will see the following configuration menu pages: Information, Stations, Wireless, WDS, Security, Access, Admin, Advanced. Detailed information on each section is provided below. Stations The Stations section will display all the associated clients along with the MAC address and basic RF related information on the Mode, Rate, Signal and StationIdleTime for each associated client.
  • Page 31 Wireless...
  • Page 32 802.11a only network or both b/g networks. For b or g only wireless devices on the network, selecting 802.11b or 802.11g only mode will provide better performance than mixed mode. For TT900 the options of 802.11b, 802.11g only or Mixed 802.11g and 802.11b are available.
  • Page 33 For the TT900: 902-928 GHz frequency range, there are only1 channel out of 2 channels available that do not overlap with one another.
  • Page 34 • Channel 60 = 5.30 – 5.32 • Channel 64 = 5.32 – 5.35 Upper Band (5.725 - 5.825 GHz) – Maximum Output Power 800mW • Channel 149 = 5.725 – 5.745 • Channel 153 = 5.745 – 5.765 • Channel 157 = 5.765 –...
  • Page 35 Access Point to another. WDS can extend the reach of your network into areas where cabling might be difficult. The TT900 in Access Point mode can support up to 6 other Access Points for WDS communication.
  • Page 36 Security...
  • Page 37 WPA Configuration Short for Wi-Fi Protected Access, WPA is a Wi-Fi standard that was designed to improve upon the security features of WEP. WPA has the following improvements over WEP: • Improved data encryption through temporal key integrity protocol (TKIP). TKIP scrambles the keys using a hashing algorithm.
  • Page 38 Remote RADIUS server configuration settings. There are two sections to setup 2 RADIUS servers for the TT900 to connect to. At any given time the TT900 will connect to one RADIUS server for authentication and will use the other one as a backup if that option is configured.
  • Page 39 RADIUS server shared secret When registered with a RADIUS server, a password will be assigned. This would be the RADIUS server shared secret. MAC Address Authentication Use client MAC address for authentication with RAIDUS server. WEP Configuration Short for Wired Equivalent Privacy, a security protocol for wireless local area networks (WLANs) defined in the 802.11b standard.
  • Page 40 Shared key authentication uses the following process: 6. The authentication-initiating wireless client sends a frame consisting of an identity assertion and a request for authentication. 7. The authenticating wireless node responds to the authentication-initiating wireless node with challenge text. 8. The authentication-initiating wireless node replies to the authenticating wireless node with the challenge text that is encrypted using WEP and an encryption key that is derived from the shared key authentication secret.
  • Page 41 Access Access Control Enable access control If enabled, this feature allows you to associate up to 64 different units/devices by MAC addresses. Any MAC addresses not programmed into the list will be prohibited from associating with this unit.
  • Page 42 Admin...
  • Page 43 Device Name Device Name This is the name that the Access Point will use to identify itself to external configuration and IP address programs. This is not the same as the SSID. It is okay to leave this blank if you are not using these programs. SNMP Setting SNMP enabled Option to enable or disable SNMP support...
  • Page 44 Administrator Password This is the password that you must type when logging into the web interface. You must enter the same password into both boxes for confirmation. Syslog Syslog Enabled Option to enable or disable Syslog support. Syslog Daemon Server The Syslog server IP address input box.
  • Page 45 The TT900 has implemented a hardware modification authorization process to prevent use by fraudulent hardware from other manufacturers. This will require any hardware change on the radio card used on the TT900 to input a serial code generated based on each unique MAC address. Please contact Teletronics Support to a pickup a valid serial number to deactivate the pre-registration protection after a radio card swap.
  • Page 46 Advanced Advanced Wireless Fragmentation threshold Fragmentation Threshold is the maximum length of the frame beyond which payload must be broken up (fragmented) into two or more frames. Collisions occur more often for long frames because sending them occupies the channel for a longer period of time, increasing the chance that another station will transmit and cause collision.
  • Page 47 Burst time Maximum burst time is a feature based on the PRISM Nitro; a new WLAN software solution that more than triples 802.11g throughput in a mixed-mode environment and offers up to 50 percent greater throughput performance in 802.11g-only networks. PRISM Nitro is fully IEEE 802.11 compliant and uses prioritization algorithms and enhanced protection mechanisms to significantly increase wireless networking performance.The recommended value for the maximum burst time for 11b or the mixed 11b/g environment is 650.
  • Page 48 When a packet is sent out from 802.11 Station A it will then wait for an 'ACKnowledgement frame' from 802.11 Station B. Station A will only wait for a certain amount of time (ACK timeout) or ACK window. If the ACK is NOT received within that timeout period then the packet will be re-transmitted from Station A resulting in reduced throughput.
  • Page 49: Appendix A: Warranty Policy

    Teletronics International, Inc. employee or authorized service facility, or any use in violation of instructions furnished by Teletronics International, Inc.
  • Page 50: Appendix B: Rma Policy

    Appendix B: RMA Policy Product Return Policy It is important to us that all Teletronics’ products are bought with full confidence. If you are not 100% satisfied with any product purchased from Teletronics you may receive a prompt replacement or refund subject to the terms and conditions outlined below.
  • Page 51: Appendix C: Regulatory Information

    Appendix C: Regulatory Information Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding the product in this manual are subject to change without notice. We assume no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages.
  • Page 52 With the Conformité Européene (CE) and European standards and amendments, we declare that the equipment described in this document is in conformance with the essential requirements of the European Council Directives, standards and other normative documents listed below: 73/23/EEC Safety of the User (article 3.1.a) 89/336/EEC Electromagnetic Compatibility (article 3.1.b) 1999/5/EC (R&TTE) Radio and Telecommunications Terminal Equipment Directive.
  • Page 53: Appendix D: Contact Information

    Appendix D: Contact Information Need to contact Teletronics? Visit us online for information on the latest products and updates to your existing products at: http://www.teletronics.com Can't find information about a product you want to buy on the web? Do you want to know more about networking with Teletronics products? Give us a call at: 301-309-8500 or fax your request to: 301-309-8551 For technical support issues you can e-mail us at:...
  • Page 54: Appendix E: Wds Explained

    Appendix E: WDS Explained One of the requirements for a WDS network is that the operational frequency channel on all the APs must be the same. This is one of the reasons why there is a huge bandwidth penalty when setting up a wireless network in WDS mode.
  • Page 55 WDS in Chain Configuration: In this configuration setup example you’ll be expanding your wireless network coverage that will span an area in length. • AP A will have only AP B’s MAC address in its WDS and ACL configuration setting. •...
  • Page 56: Appendix F: Tt900 Upgrade Faq

    Teletronics has now removed the necessary step to provide an activation key to change from SU to AP and vice versa in our TT900 product line. For example, if you have a TT900 in SU mode with 3.6.0 firmware, the activation key is not required if you upgrade to either 3.7.0 (SU mode) or 3.7.1 (AP mode), or later.
  • Page 57 Will upgrade keep my previous configuration? Although the upgrade might keep your previous configuration, we suggest customer to reset the unit to factory default located in “admin” section and configure it again.
