Teletronics International EZBridge Configuration Manual

Access point mode
Hide thumbs Also See for EZBridge:
1
2
3
4

Advertisement

Quick Links

Download this manual
Enlarged version
Teletronics International, Inc.
Smart Amp
DC-I
Backbone or
Local Area
Network
Cisco Router

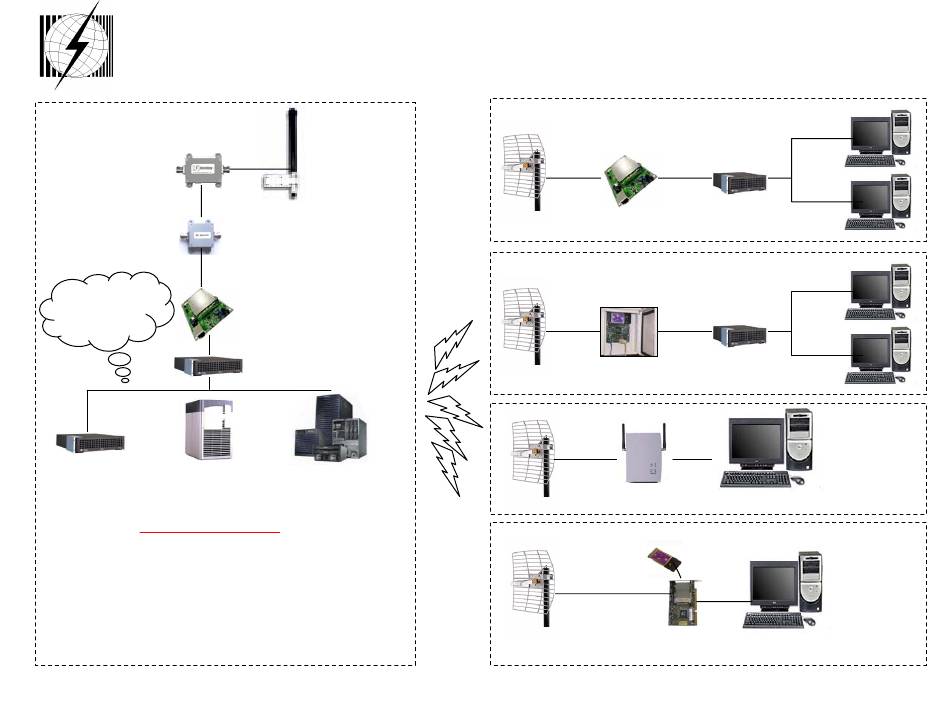

EZBridge Configuration:
CONF: ACCESS POINT
Channel: 4
Network: 192.168.1.x
Gateway: 192.168.1.254
CONF: CONFIGURATION
Omni Antenna
EZBridge
11Mbps
Switch
Servers /
PCs
ESSID: LAN1
EZBridge Configuration
Access Point Mode
CONF: STATION BRIDGE
ESSID: LAN1
Network: 192.168.1.x
Gateway: 192.168.1.254
EZBridge
Grid Antenna
11 Mbps
CONF: INFRASTRUCTURE
ESSID: LAN1
Network: 192.168.1.x
Gateway: 192.168.1.254
CPE Router
Grid Antenna
2 Mbps / 11 Mbps
11 Mbps AP
Grid Antenna
Grid Antenna
LAN Card (2 Mbps/11Mbps)
+ PCI Adapter
Switch
Switch
CONF:
INFRASTRUCTURE
ESSID: LAN1
Network:
192.168.1.x
Gateway:
192.168.1.254
CONF:
INFRASTRUCTURE
ESSID: LAN1
Network:
192.168.1.x
Gateway:
192.168.1.254
