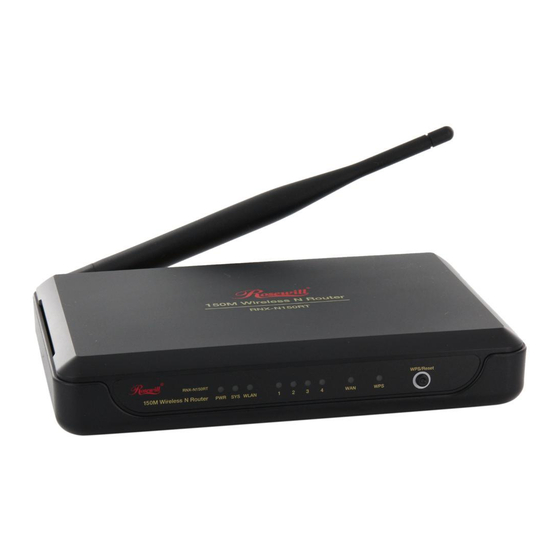

Rosewill RNX-N150RT Quick Installation Manual
Hide thumbs
Also See for RNX-N150RT:
- User manual (130 pages) ,
- Quick installation manual (8 pages) ,
- User manual (111 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for Rosewill RNX-N150RT
Summary of Contents for Rosewill RNX-N150RT
- Page 1 Wireless Router RNX-N150RT Quick Installation Guide...
-
Page 2: Connecting The Router
Connecting the Router Before installing the router, you should have connected your PC to the Internet through your broadband service successfully. If there are any problems, please contact with your ISP. After that, please install the router according to the following steps. -
Page 3: Log In To The Router
h. When all of the devices boot up completely, make sure that the router's LEDs light as follows: Power LED: Light up System LED: Flash Link/Act LEDs (WAN&LAN): Light up WLAN LED: Flash Login to the Router To login to the router, you should set up the TCP/IP Protocol in "Obtain an IP address automatically"... - Page 4 b. The WAN Connection Type screen will appear as shown below. The Router provides Auto-Detect function and supports three popular ways PPPoE, Dynamic IP and Static IP to connect to the Internet. It’s recommended that you make use of the Auto-Detect function. If you are sure of what kind of connection type your ISP provides, you can select the very type and click Next to go on configuring.
- Page 5 If the connection type detected is Dynamic IP, the router will automatically get IP parameter from your ISP without entering any parameters. III If the connection type detected is Static IP, the next screen will appear as shown below. Fill the blanks with the parameters provided by your ISP, and then click Next.
-
Page 6: Wps Configuration
SSID: Create a unique and easy to remember name for your wireless network. You can also keep default settings without the device being affected. Region: Select your region from the drop-down list. Wireless Security: Recommend to choose WPA-PSK\WPA2-PSK and enter a Security Key using ASCII characters between 8 and 63 characters or 64 hexadecimal characters in the PSK Password filed. - Page 7 2) You can establish a wireless connection by using either Push WPS/Reset button (for less than 5 seconds)method or PIN method. It is recommended that you choose the simplest method that your AP device supports. 3) Here takes the Wireless Adapter of our company for example. WPS/Reset Button Method If the wireless adapter is equipped with a push-button for WPS: Step1: Press the WPS/Reset button on your router.
- Page 8 1) Enter the PIN code of wireless adapter into the router. For the wireless adapter, please choose Enter a PIN into my access point or a registrar in the WPS configuration utility as shown below, and click Next. For the router, click the Add device button on the WPS screen and then select Enter the new device’s PIN and enter the PIN code of the adapter on the screen displayed as shown below.
- Page 9 Click the Add device button on the screen from which you got the PIN code, you will see the following screen which indicates the connection status. Once it shows “Connect successfully !”, the WPS connection is finished. Note: 1) For the router, please keep the default WPS Status as Enabled all the time. 2) The status LED on the Router will light green all the time if the device has been successfully added to the network.
- Page 10 FR, IT, NO. See detail information in product’s document of resource CD. Thank you for purchasing a quality Rosewill Product. Please register your product at: www.rosewill.com for complete warranty information and future support for your product. Rosewill Customer Service Hotline: 1-800-575-9885 Rosewill Customer Service Support: techsupport@rosewill.com...
