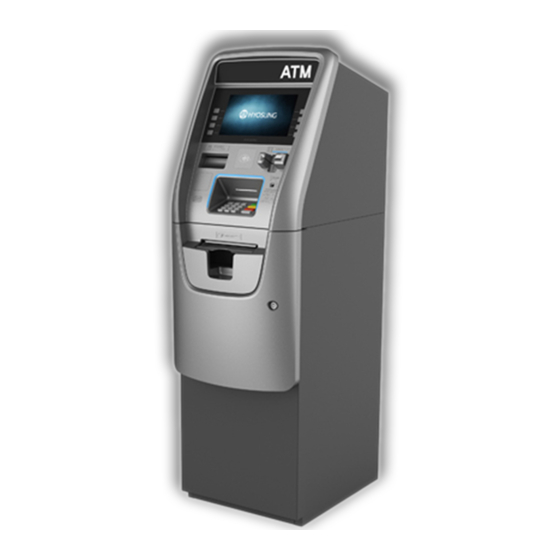

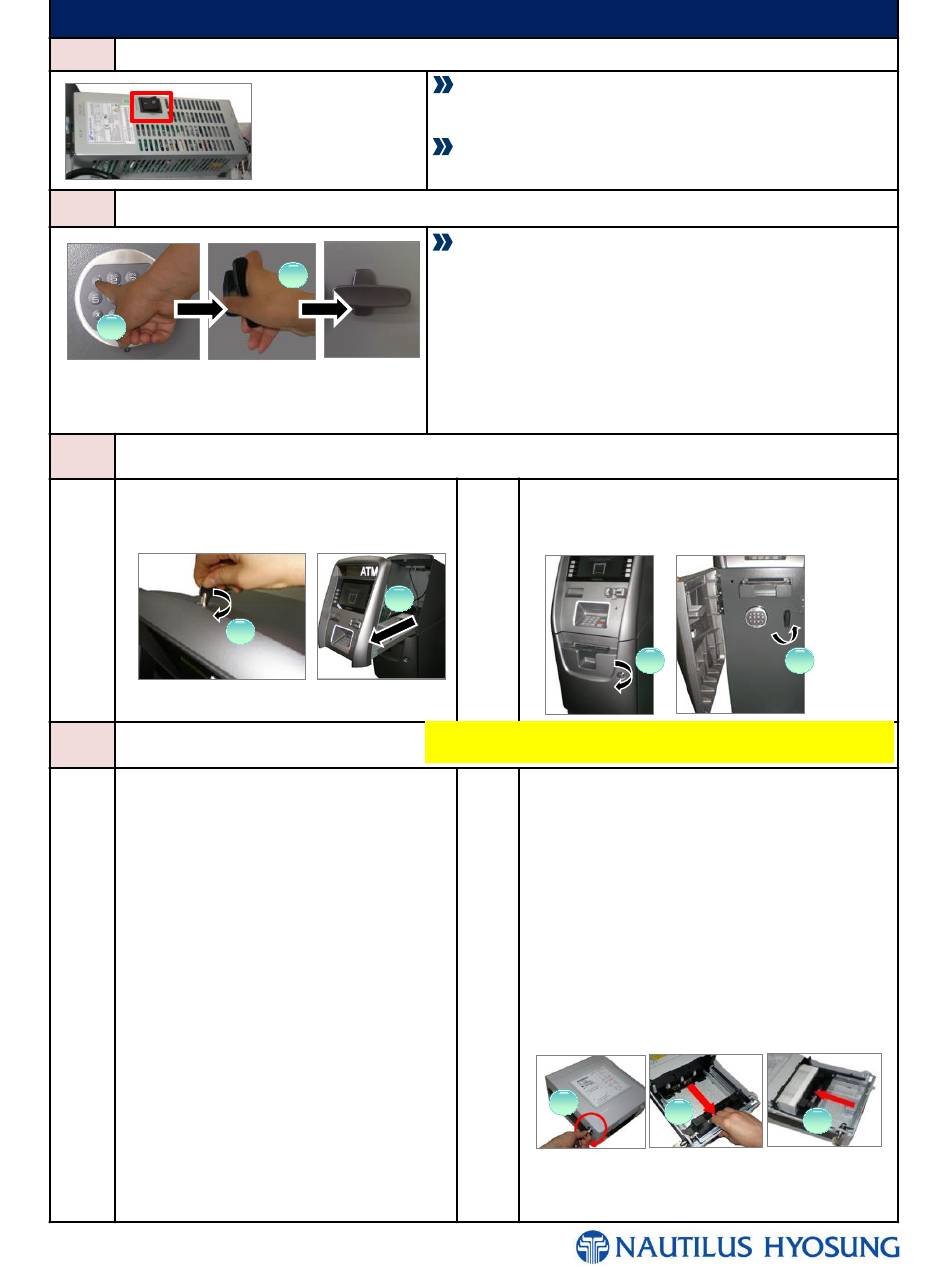

Nautilus Hyosung MX2600SE Quick Reference Manual

1 ATM Power On/Off
2 Security Door Open
1
3 Opening the Exterior Door
 Opening the upper front body door,
- Insert the key and turn it clockwise. (①)
- Pull the front panel outward. (②)
3-1
1
4 Cash Replenishment
 Enter to Supervisor mode (Refer to
"9 OP Main Screen")
 Select "SETTLEMENT"
 Submit "TRIAL CASSETTE TOTAL" to
show note count.
*
To show note count and to clear note
count, submit "CASSETTE TOTAL"
 How to add note count,
- Select "SETTLEMENT"
4-1
- Select "ADD CASH"
- Select the cassette to be added the
notes(①)
- Enter the note count and then press
ENTER key in PIN Pad. (If you want to add
the cash for other cassette, repeat from "①")
- After completing, press "APPLY" button.
MX2600SE Quick Reference Guide
ATM Power On
 Open the upper front door.
 Press Power Switch in the direction of "I".
ATM Power Off
 Press Power Switch in the direction of "O".
Security Door Open
 Turn the key clockwise to open the security cover.
2
 The default password of electronic lock is 1-2-3-4-5-6.
 Enter this sequence on the electronic lock keypad. (①).
 The lock will confirm a valid combination entry with a
double signal. Lock will signal three (3) times for invalid
combination entry.
 Turn the vault door handle counterclockwise. (②)
The vault door will open.
2
Caution:
loaded (Refer to Operator Manual)
 Opening the lower front body door,
- Open the security cover with key. (③)
- Unlock the e-lock and open security door. (④)
3-2
3
The acceptable condition bills should be
 Open the security door. (Refer to "3 Opening the
Exterior Door")
 Pull out the cash cassette carefully.
 Unlock the cassette cover using key (①).
 Pull the push plate back until it is locked
against the push plate latch. (②) And then,
set the bills into the cash cassette.
 Then, release the push plate from the cash
plate latch and allow it gradually to take up
its position behind the notes. (③)
 Close the cassette cover with key, place
4-2
it carefully on the set guide and push it in
until it is locked in place.
1
* The above description is based on 1000 new note
capacity cassette. For 2000 new note capacity
cassette, refer to operator manual.
4
2
3
