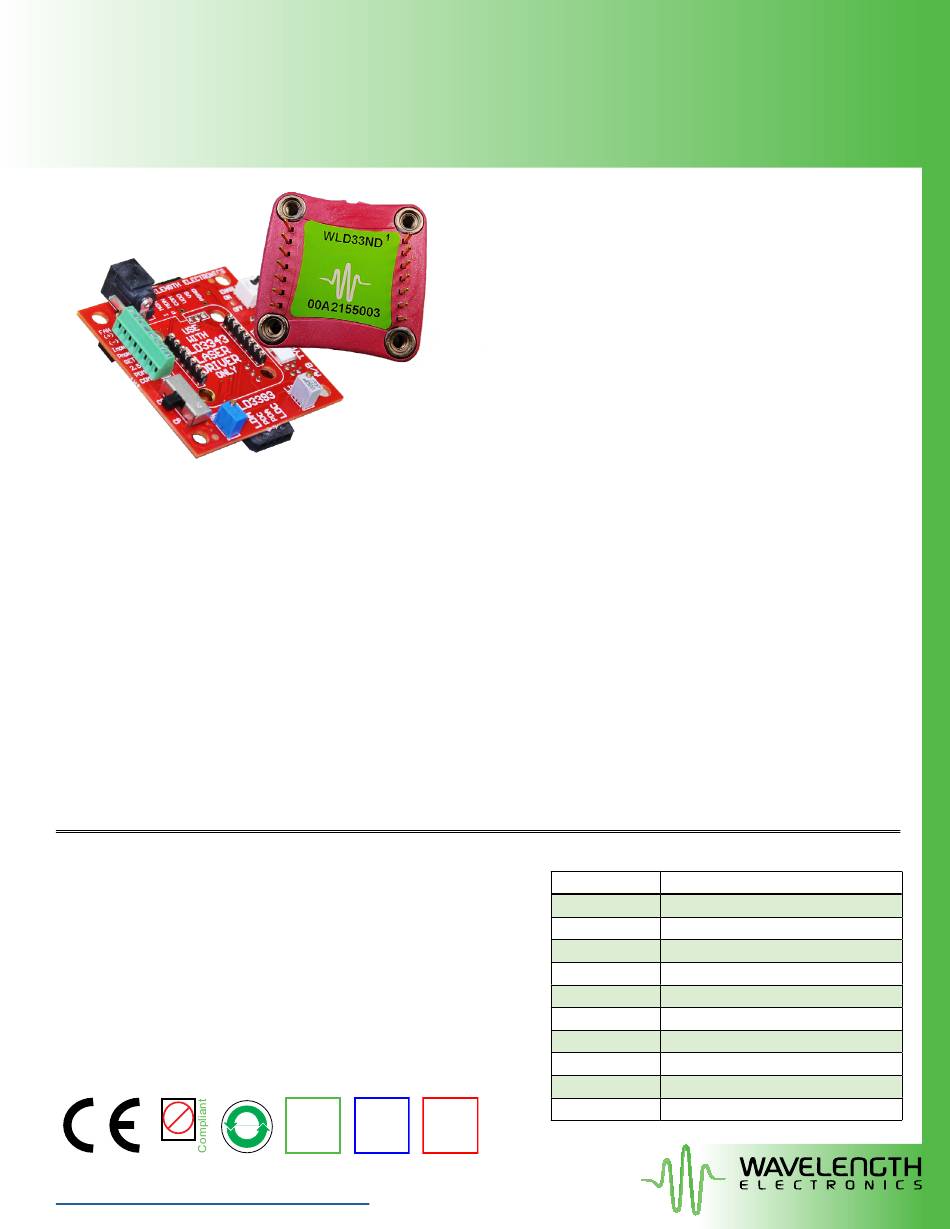

DATASHEET AND OPERATING GUIDE
WLD33ND & WLD33ND-EV
NEW IMAGE COMING
NEW IMAGE COMING
SOON
SOON
SMALL FOOTPRINT
The WLD33ND is an easy-to-use analog circuit for space
constrained laser diode applications. The WLD33ND
maintains precision laser diode current (Constant Current
mode) or stable photodiode current (Constant Power mode)
regulation using electronics that are compatible with any
laser diode type. Safely supply up to 3 A of current (model-
dependent) to a laser diode from a single +5 V power supply.
MODEL VARIATIONS
There are five laser diode driver models available in the
WLD family. The standard WLD33ND provides up to 2.2 A to
the laser diode. The WLD33ND-3A provides up to 3 A. The
WLD33ND-2L and WLD33ND-3L are lower noise versions
for Constant Current mode of the 2.2 and 3 A models,
respectively. The WLD33ND-HB is designed to operate with
lower voltage supplies, including lithium-ion batteries.
CONTENTS
QUICK CONNECT GUIDE
PIN DESCRIPTIONS
ELECTRICAL SPECIFICATIONS
SAFETY INFORMATION
OPERATING INSTRUCTIONS — GENERAL
OPERATING INSTRUCTIONS — STANDALONE
OPERATING INSTRUCTIONS — WITH EVALUATION BOARD
ADDITIONAL TECHNICAL INFORMATION
TROUBLESHOOTING
MECHANICAL SPECIFICATIONS
CABLING SPECIFICATIONS
CERTIFICATION AND WARRANTY
Pb
RoHS
406-587-4910
www.teamWavelength.com
Laser Diode Driver & Evaluation Board
B
A
e
Laser Type
Laser Type
FEATURES AND BENEFITS
• Low cost
• Slow-start laser diode protection
• Drive up to 3 A output current
• Constant Current or Constant Power operation
• Compatible with any laser diode type
• Small package size (1.3" × 1.26" × 0.3")
• Voltage-controlled setpoint
• TTL-compatible shutdown pin
• Adjustable current limit
• Adjustable current range
• 2 MHz Constant Current bandwidth
• Over-temperature shutdown
• 14-pin DIP PCB mount
RAPID PROTOTYPING
Use the WLD33ND-EV Evaluation Board to rapidly
prototype a complete laser diode control system using the
of the WLD33ND laser diode driver. Onboard switches,
connectors, and trimpots make the configuration and
operation simple. Input and output cables are also included
with the WLD33ND-EV.
The WLD33ND is excellent for VCSELs, electro-optical
equipment, and medical/dental systems.
ACCESSORIES
In addition to the WLD33ND-EV Evaluation Board, there
are thermal management kits designed specifically for the
WLD. WEV300 includes a thermal washer and heatsink.
WEV301 adds a +5 V fan, while WEV302 adds a +12 V
fan to the kit. Additionally, there are various power supplies
available that fit any current/voltage needs.
ORDERING INFORMATION
PAGE
2
PART NO
4
WLD33ND
6
WLD33ND-3A
8
WLD33ND-HB
9
10
WLD33ND-2L
16
WLD33ND-3L
22
WLD33ND-EV
25
WTW002
26
WHS302
28
29
WXC303
C
Laser Type
WXC304
© February 2022
DESCRIPTION
2.2 A Laser Diode Driver
3 A Laser Diode Driver
2.2 A Li+ Battery-compatible Driver
2.2 A Lower Noise Driver (CC only)
3 A Lower Noise Driver (CC only)
Evaluation PCB
Thermal Washer for all WLDs
Heatsink for all WLDs
+5 VDC Fan for all WLDs
+12 VDC Fan for all WLDs

Advertisement

loading
Need help?

Need help?

Do you have a question about the WLD33ND and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wavelength Electronics WLD33ND

  • Page 1 ACCESSORIES There are five laser diode driver models available in the WLD family. The standard WLD33ND provides up to 2.2 A to In addition to the WLD33ND-EV Evaluation Board, there the laser diode. The WLD33ND-3A provides up to 3 A. The...
  • Page 2 OUTB Output B Power Supply Ground Laser Diode Current Sense Resistor Positive Input Figure 1. Top view and pinout of the WLD33ND laser diode driver. Use the online WLD Circuit Calculator to automatically determine values for external components. www.teamwavelength.com/support/design-tools/wld-calculator/ Bandgap...
  • Page 3 WLD SERIES LASER DIODE DRIVERS The WLD33ND Series of laser diode drivers are able to drive lasers with any pinout of laser diode and photodiode. Figure 3 illustrates these laser types. For detailed instructions on using the different laser types refer to the Operating Instructions —...
  • Page 4 Power supply input for the internal control electronics. Input Supply range input for this pin is model-dependent. * NOTE: The WLD3343 has a 0.5 V offset voltage when Pin 2 is open. The WLD33ND does not have this offset voltage. © 2022 www.teamWavelength.com...
  • Page 5 (X). If a combination of onboard and external setpoints is required, the jumper SOURCE should be placed in the “T” position, and an external setpoint connected. For more information about the jumpers on the bottom of the WLD33ND-EV evaluation board, see page 17. © 2022 www.teamWavelength.com...
  • Page 6 Minimum turn-on current in the 200 mA range is 350 μA. Minimum turn-on current in the 2 A range is 12 mA. Noise: *The WLD33ND and WLD33ND-3A have noise greater than 45 µA. To further reduce noise, the WLD33ND-2L and WLD33ND-3L models are available.
  • Page 7 WLD SERIES LASER DIODE DRIVERS ELECTRICAL SPECIFICATIONS (CONTINUED) MODEL PARAMETER UNIT NOTE WLD33ND-HB WLD33ND-2A WLD33ND-3A INPUT Offset Voltage, initial, I Pin 2, T =25°C, V =0 V AMBIENT Bias Current [4] -50 to 150 μA Input Voltage Range 0 to 2...
  • Page 8 The voltage and output current are related by a transfer function that varies To determine if the WLD33ND driver will be operating in a by driver model number and maximum current. safe range, follow the instructions for calculating the Safe Operating Area online with your system’s voltages and...
  • Page 9 Refer to page 3 for test load information. We recommend that you always observe ESD precautions when handling the WLD33ND driver and your laser diode. These instructions are broken into three sections. The first covers generally applicable operating instructions that are...
  • Page 10 RANGE value based on maximum output current (I LDMAX depending on operation mode. The output current range of the WLD33ND depends on the selection of current sense resistor R placed between SENSE Pin 8 (RS+) and Pin 10 (RS-) as shown in Figure 4.
  • Page 11 Connect a 500 Ω trimpot and a 150 Ω resistor as shown in LIMIT Figure 5 to make the maximum current limit adjustable. The WLD33ND allows a customized current range for a specific application. This allows optimized setpoint resolution while minimizing output noise. The current limit 500 Ω...
  • Page 12 R • Place R as close to Pins 12 (PD+) and 13 (PD-) on the WLD33ND as possible to avoid parasitic resistance Equation (8) calculates R for a maximum desired effects from the PCB layout when in Constant Power photodiode current, I .
  • Page 13 Laser Diode Anode to Photodiode Cathode DISABLE Part # LM4040 Isolated Photodiode www.national.com online Circuit Calculator automatically determine values external WLD33ND IMON LASER components. DIODE www.teamwavelength.com/ DRIVER support/design-tools/wld- 1 k Ω calculator/ SENSE = (Desired I ) * (2*R SENSE...
  • Page 14 With Eval Board Part #LM4040 LD Range www.national.com SENSE 2.0 A 438 mΩ 200 mA 5.01 Ω WLD33ND IMON LASER DIODE DRIVER 1 kΩ SENSE TIE GROUND CONNECTIONS DIRECTLY TO PIN 7 Figure 10. Type C laser configured for Constant Current operation.
  • Page 15 Pin 3 to The available voltage range for V is 0-2 V. the amount of forward current. Connecting voltages outside this range can result in damage to the WLD33ND or the laser diode. PIN3 (11) 2·R...
  • Page 16 Before proceeding with configuration of the WLD33ND and need to know before you start wiring. This is also good WLD33ND-EV, it is critical that you verify that the driver will information if you need technical support. be within the Safe Operating Area.
  • Page 17 • PD RANGE Jumper: Set the PD RANGE jumper on that is directly proportional to V the bottom of the WLD33ND-EV to either the “200 μA” or the “2 mA” range, depending on the specifications of Prior to applying power to the board, use the Mode Switch your photodiode.
  • Page 18 Use PGND for the power return. The common (COM) WLD33ND-EV terminal on the WLD33ND-EV is not intended to act as a power connection, but as the low noise ground reference for connecting an external VSET source, and for monitoring the Figure 17.
  • Page 19 C) Turn the SET trimpot at least twelve turns counter- clockwise (OFF). Adjust the LIM trimpot at least twelve turns clockwise (ON). D) Apply power to the WLD33ND-EV and enable the output current by switching the enable switch to the “ON” position. See Figure 13 to locate the switch.
  • Page 20 Since PD+ connect the external setpoint voltage source to the SET and PD- on the WLD33ND are shorted together in CC terminal on the terminal block. When the VSET SOURCE mode, PMON will only monitor photodiode current in jumper is in the “X”...
  • Page 21 WLD SERIES LASER DIODE DRIVERS Step 12: Enable Or Disable The Output Current The WLD33ND output current can be enabled and disabled using the onboard toggle switch. The output is enabled when the green ON LED indicator is lit (see Figure 13).
  • Page 22 For lowest noise, operate in Constant Current mode with Table 12. Available power supplies. the cathode of the laser diode grounded (Type C). If you buy a special low-noise version of the WLD33ND (WLD33ND-2L, or WLD33ND-3L for 3 A output), you can THERMAL MANAGEMENT KITS decrease noise by a factor of 2.5 under the same conditions.
  • Page 23 Refer to the Wavelength Electronics website for the most Voltage Across WLD33ND (V) up-to-date SOA calculator for our products. The online tool Figure 20. SOA for WLD33ND with thermal washer, heatsink, is fast and easy to use, and also takes into consideration and fan.
  • Page 24 WLD SERIES LASER DIODE DRIVERS WLD33ND-EV EVALUATION BOARD SCHEMATIC Figure 23. WLD33ND-EV evaluation board schematic. © 2022 www.teamWavelength.com...
  • Page 25 Evaluation Board: See page 20 for proper evaluation board configuration for modulation. Evaluation Board: The trimpots that are installed on the WLD33ND-EV are 12-turn trimpots. This means that after 12 full Cannot zero the trimpots turns counterclockwise, they will be set to zero, even though they will turn continuously.
  • Page 26 0.900 [5.1] [22.86] 1.30 [33.0] PCB FOOTPRINT The WLD33ND can be installed in a socket 0.945 [24.00] SQ. soldered to a PCB. Two 7-pin SIP sockets are required. Wavelength recommends Sullins, PPPC071LFBN-RC Socket. 0.125 [3.18] Thru 0.25 [6.4] DIA KEEPOUT 4 Required 0.040 [1.02] Dia Thru Hole...
  • Page 27 [47.63] 2.25 [57.1] 0.44 1.56 [11.2] [39.6] 2.25 [57.2] 1.13 [28.7] The WLD33ND connects to the evaluation board by two 7-pin SIP sockets. The socket manufacturer is Sullins, PPPC071LFBN-RC Socket. All Tolerances ±5%; units in inches [mm] © 2022 www.teamWavelength.com...
  • Page 28 WLD SERIES LASER DIODE DRIVERS CABLING SPECIFICATIONS These cables are included with the WLD56ND-EV Evaluation Board. WTC3293-00101 INPUT CABLE PIN # COLOR FUNCTION MOLEX #43645-0600 BLUE PGND MICRO-FIT 6 CIRCUIT ORANGE SINGLE ROW RECPT BLACK WHITE GREEN WTC3293-00102 OUTPUT CABLE MOLEX #43645-0400 MICRO-FIT 4 CIRCUIT SINGLE ROW RECPT...
  • Page 29 There are no user-serviceable parts inside this product. Return the product met its published specifications at the time of shipment. product to Wavelength Electronics for service and repair to ensure Wavelength further certifies that its calibration measurements are that safety features are maintained.
