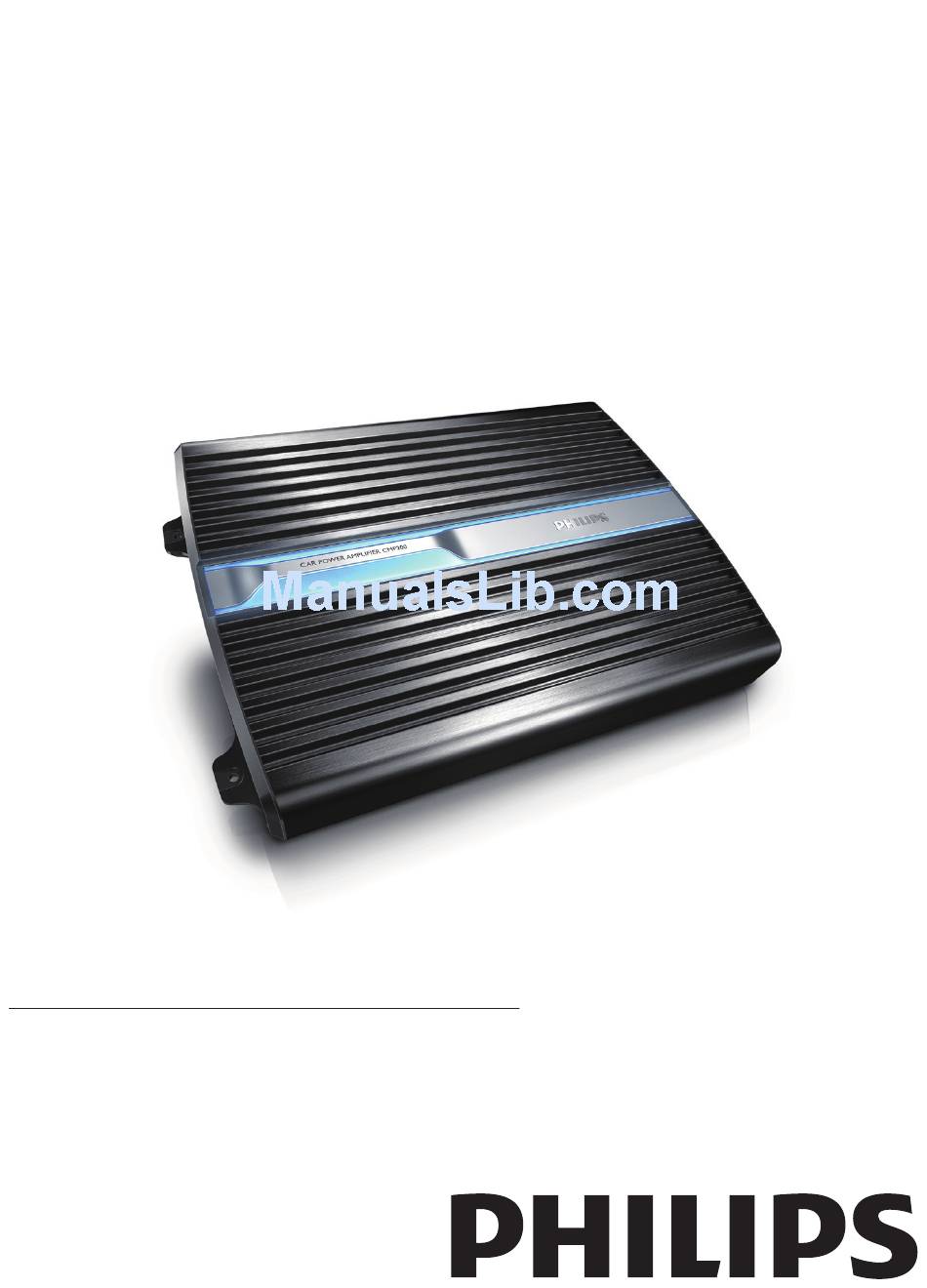

  • Page 1 Register your product and get support at www.philips.com/welcome CMP200 EN User manual...
  • Page 2: Environmental Information

    2009 © Koninklijke Philips Electronics N.V. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
  • Page 3: Your Car Power Amplifier

    Your car power amplifier Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With the amplifier, you can enjoy high quality sound performance with powerful bass and beats.
  • Page 4 OUTPUT L/R Connect additional amplifier for additional speakers. • INPUT L/R Connect car audio with RCA cable. • HI INPUT Connect car audio with the supplied high input connector. • INPUT LEVEL Adjust input level (0.3V to 6V). • PROTECT Light in red when the PROTECTOR is activated.
  • Page 5 BASS BOOST Boost the frequencies at around 40Hz to a maximum of • 12dB. POWER (GND/REM/+12V) Connect +12V DC power cable, ground wire and remote • wire. Fuse SPEAKER OUTPUT Connect to speakers or subwoofers. • 2. Installation Installation You can mount the amplifier either under a seat or on the rear tray. Note •...
  • Page 6: Connect Speakers

    Connect speakers Note • Use speakers with an impedance of 2 to 8 ohm (4 to 8 ohm when used as a bridged amplifier). • Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may degrade sound quality. Option 1: Mono bridged mode: connect 1 speaker Option 2: Stereo mode: connect 2 speakers 4 ohm speaker...
  • Page 7: Connect Car Audio

    Option 3: Tri-mode: connect 3 speakers 4 ohm speaker 4 ohm speaker 8 ohm speaker • Make the terminal connection as illustrated below: Connect car audio Option 1: High level input connection Connect the amplifier to your car audio with the supplied High level input connector.
  • Page 8 Left speaker Car audio unit Right speaker White Option 2: Line input connection Connect the amplifier to the car audio with a RCA cable (not supplied). Car audio unit LINE OUT Option 3: Line output connection Connect the amplifier to another amplifier.
  • Page 9: Connect Power

    Connect power Make the power connection as illustrated below: Connect the ground wire from the car to the • Connect the remote wire from the car audio to the • socket. √ With this connection, you can turn on/off the amplifier with the car audio.
  • Page 10: Adjust Frequency

    HPF (high-pass-filter) mode LPF (Low-pass-filter) mode OFF (flat) mode Slide HPF/OFF/LPF to the selected positon. Adjust frequency You can adjust frequency of HPF or LPF from 30HZ to 400Hz. Note HPF/OFF/LPF switch is set at OFF position, the frequency adjustment •...
  • Page 11: About The Protector Indicator

    Replace the fuse with the supplied fuses or to buy two fuse that matches the voltage of the damaged fuse (60A). If the fuse gets damaged immediately after it has been replaced, there may be an internal malfunction. In such case, consult your Philips dealer.
  • Page 12: Troubleshooting

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available. 125W x 2...
  • Page 13 Power indicator does not light up. • The connected car audio is not turned on. • The fuse is blown. Replace the fuse with a new one. The sound is too low. • The input level is not set correctly (see ‘Adjust input level’). The sound is interrupted or stopped suddenly.
  • Page 14 [substances or elements] will not result in any severe environmental pollution, any bodily injury or damage to any assets. © 2009 Koninklijke Philips Electronics N.V. All rights reserved.
