EMI probe set TP-EMI-HS6
The EMI probe set TP-EMI-HS6 is a complete set of probes, conveniently packed
in a carry case. Together with the Handyscope HS6-1000, Handyscope HS6 DIFF-
1000, WiFiScope WS6-1000 or WiFiScope WS6 DIFF-1000 with option E installed,
it turns your instrument into an EMI pre compliance tester.

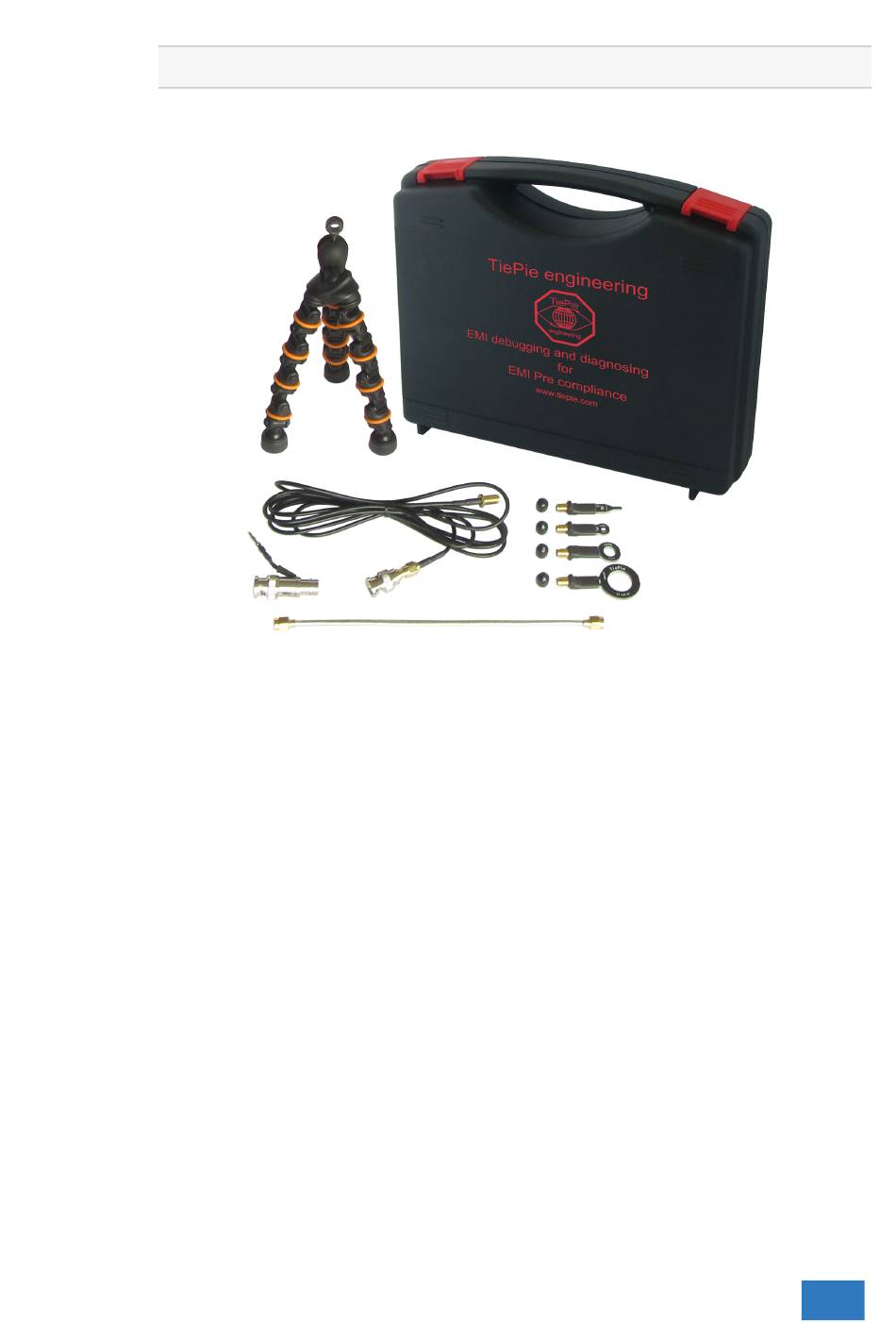

The set contains three differently sized H field probes and an E field probe. To con-
nect the probes to the scope, a short semi flexible antenna cable and a long flexible
antenna cable are included. For proper grounding and termination, a grounded
50 Ohm terminator is also included. The tripod allows exact positioning of the
probe near the test subject.
1
EMI probe set TP-EMI-HS6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TP-EMI-HS6 and is the answer not in the manual?

Questions and answers

Related Manuals for TiePie TP-EMI-HS6

Summary of Contents for TiePie TP-EMI-HS6

  • Page 1 EMI probe set TP-EMI-HS6 The EMI probe set TP-EMI-HS6 is a complete set of probes, conveniently packed in a carry case. Together with the Handyscope HS6-1000, Handyscope HS6 DIFF- 1000, WiFiScope WS6-1000 or WiFiScope WS6 DIFF-1000 with option E installed, it turns your instrument into an EMI pre compliance tester.
  • Page 2 Set contents The EMI probe set TP-EMI-HS6 contains the following items: TP-NFP-25 H field probe 25 mm diameter, female SMA connector TP-NFP-15 H field probe 15 mm diameter, female SMA connector TP-NFP-5 H field probe 9 mm diameter, female SMA connector TP-NFP-E9 E field probe...
  • Page 3 0.3 - 0.6 Nm (3 - 5 in lbf). Finally, connect the required probe to the other end of the semi flexible antenna cable. Using the semi flexible cable and the tripod, the probe can be positioned at the exact location near the test subject. EMI probe set TP-EMI-HS6...
  • Page 4 Tel.: +31 515 415 416 Koperslagersstraat 37 Fax: +31 515 418 819 8601 WL Sneek E-mail: sales@tiepie.nl The Netherlands www.tiepie.com This information is subject to change without notice. Copyright © 2021 TiePie engineering. All rights reserved. Revision 1.3, May, 2021. EMI probe set TP-EMI-HS6...
