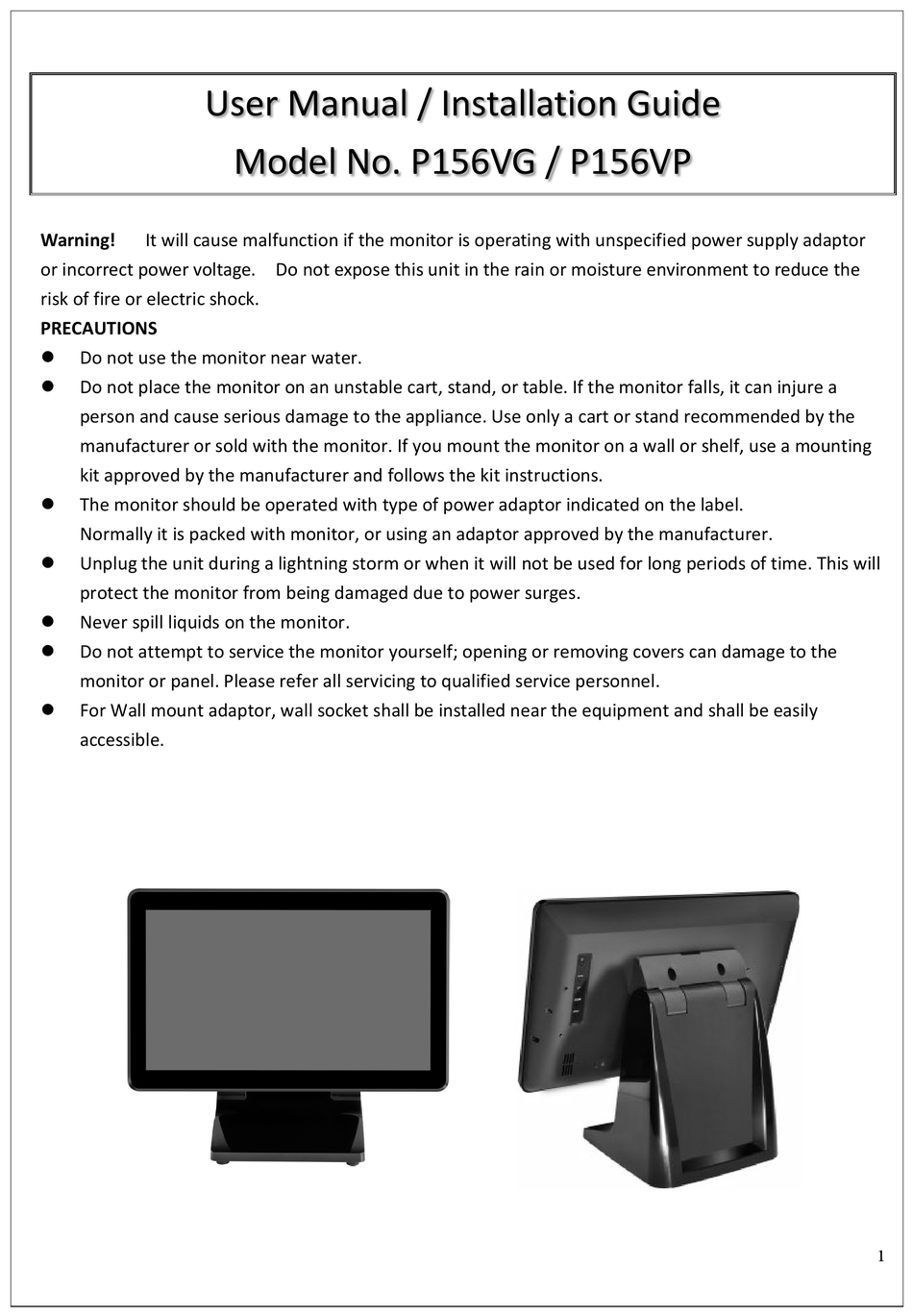

User Manual / Installation Guide
Warning!
It will cause malfunction if the monitor is operating with unspecified power supply adaptor
or incorrect power voltage. Do not expose this unit in the rain or moisture environment to reduce the
risk of fire or electric shock.
PRECAUTIONS
Do not use the monitor near water.
Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a
person and cause serious damage to the appliance. Use only a cart or stand recommended by the
manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting
kit approved by the manufacturer and follows the kit instructions.
The monitor should be operated with type of power adaptor indicated on the label.
Normally it is packed with monitor, or using an adaptor approved by the manufacturer.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will
protect the monitor from being damaged due to power surges.
Never spill liquids on the monitor.
Do not attempt to service the monitor yourself; opening or removing covers can damage to the
monitor or panel. Please refer all servicing to qualified service personnel.
For Wall mount adaptor, wall socket shall be installed near the equipment and shall be easily
accessible.
Model No. P156VG / P156VP
1
Advertisement
Table of Contents
Related Manuals for Phistek P156VG
Summary of Contents for Phistek P156VG
- Page 1 User Manual / Installation Guide Model No. P156VG / P156VP Warning! It will cause malfunction if the monitor is operating with unspecified power supply adaptor or incorrect power voltage. Do not expose this unit in the rain or moisture environment to reduce the risk of fire or electric shock.
-
Page 2: Table Of Contents
Index: Introduction --------------------------------------------------------------------------------------------------- 3 Features--------------------------------------------------------------------------------------------------------- 3 Unpack the monitor------------------------------------------------------------------------------------------ 3 Check Accessories-------------------------------------------------------------------------------------------- 3 Installation----------------------------------------------------------------------------------------------------- 4 Power Supply & Signal connection ---------------------------------------------------------------------- 4 Function Touch Key Control ------------------------------------------------------------------------------ 4 OSD Lock/ Unlock -------------------------------------------------------------------------------------------- 5 Structure of OSD settings----------------------------------------------------------------------------------- 5 III. For your safety------------------------------------------------------------------------------------------------ 6 Support timing chart ---------------------------------------------------------------------------------------- 6 Touch panel ---------------------------------------------------------------------------------------------------- 7 Mechanical dimension------------------------------------------------------------------------------------- 8... -
Page 3: Introduction
- Rimless front bezel design, spill & dust proof. - Cable management down routing through the mounting stand. - Light weight. - Mitsubishi PMMA cover lens for P156VG. - Projected Capacitive Touch panel for P156VP. Unpack the monitor - Put the monitor on a clean surface, make sure the box in upright position. -
Page 4: Installation
Installation: Power Supply & Signal connection: Power supply: Use attached Wall-mount Power adaptor to get 12Vdc power. VGA signal: Use attached 1.8meter 15pin D-sub VGA cable to connect System PC. Touch Control: Use attached USB cable to connect system PC. Touch Control VGA input DC12V input... -
Page 5: Osd Lock/ Unlock
a. Press Menu key to activate OSD Menu. b. This key also means “OK”. Menu - Press “Up” or “Down” key to move the indicator to the desired item, then (MENU) press Menu key to select and read to adjust. - After adjustment, press this key to return to previous Menu. -
Page 6: For Your Safety
Adjust OSD Menu horizontal position, press “UP” key to shift H. Position − Menu right, “DOWN” key to shift Menu left. Adjust OSD Menu vertical position, press “UP” key to shift V. Position − Menu upward, “DOWN” key to shift Menu downward. Sets the time duration in seconds that the OSD is visible after OSD Time −... -
Page 7: Touch Panel
Mode 8 VESA 1024 x 768 65.000 48.363 60.004 − − Mode 9 VESA 1024 x 768 75.000 56.476 70.069 − − Mode 10 VESA 1024 x 768 78.750 60.023 75.029 VESA Mode 11 800 × 600 36.000 35.156 56.250 VESA Mode 12 800 ×... -
Page 8: Mechanical Dimension
Mechanical dimension... -
Page 9: Emc Warning Statement
VII. EMC Warning: FCC Class A Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 10: Product General Specification
VIII. Product General Specification: Model P156VG P156VP LCD Panel Size 15.6" Resolution 1366 x 768 Aspect Ratio 16:9 Contrast Ratio (Typ.) 800:1 Brightness (Typ., cd/m² ) MTBF (Min., hrs) 50,000 Front Cover 10-points projected Type PMMA capacitive touch Surface Hardness...
