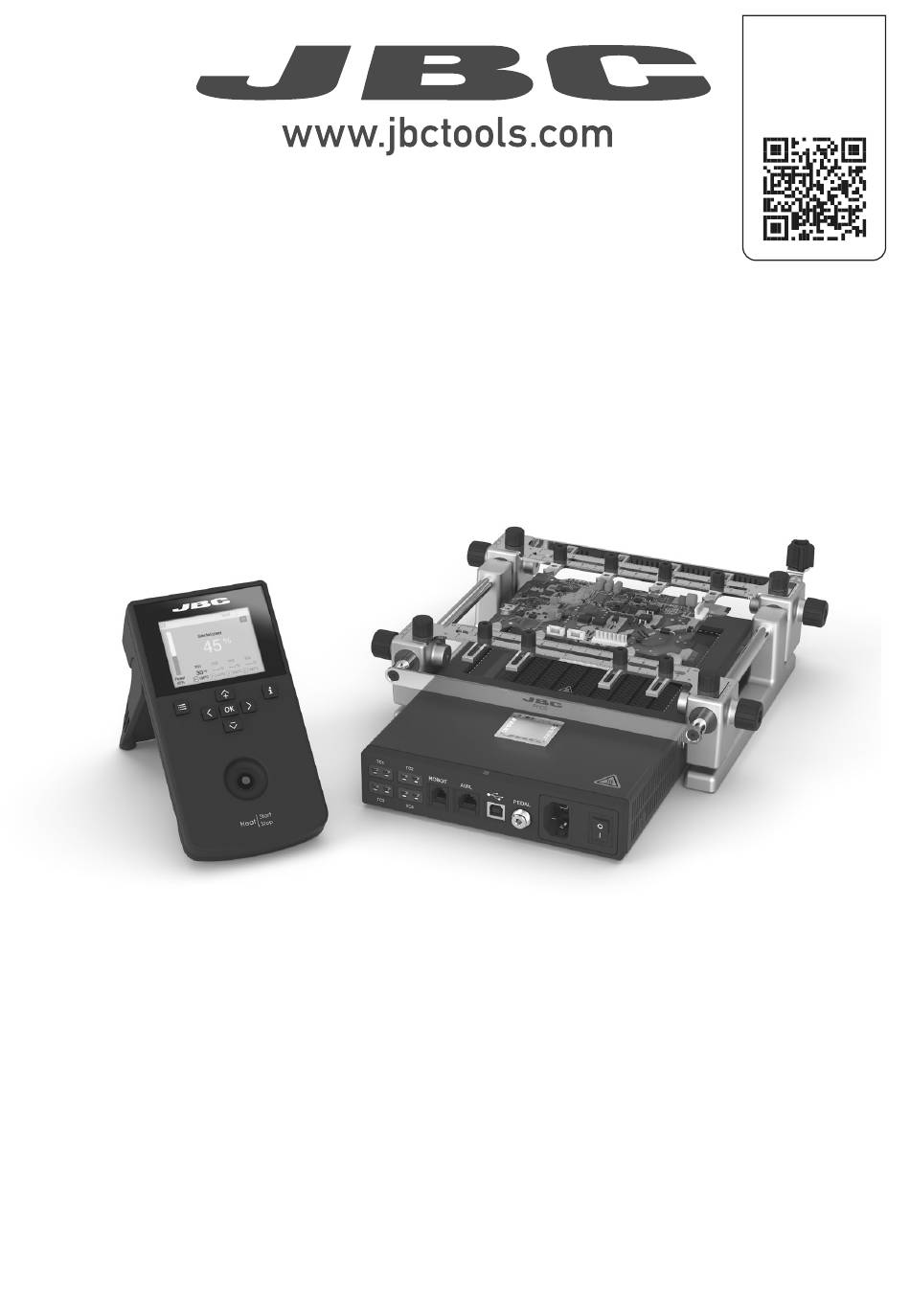

- Page 1 Product website 130 mm INSTRUCTION MANUAL PHSEK Preheater Set for PCBs up to 13x13cm/5x5”...
-
Page 2: Packing List
This manual corresponds to the following references: PHSE-9KB (100V) PHSE-1KB (120V) PHSE-2KB (230V) Packing List The following items are included: PHSE Preheater Unit ......1 unit PHSS Support .......... 1 unit Ref. PHS-SA Console ......1 unit RJ45 Cable ....1 unit Power Cord .....1 unit Ref. -
Page 3: Features And Connections
para manuales - negro plano 200 mm Features and Connections 130 mm 130 mm Preheater Unit Heating Areas Fuse Zone B Fixing Brackets 100 mm for PHSS Support Zone A 80 mm Led Status Indicator Thermocouple Connectors x4 Main Switch (Type K) 60 mm RJ12 Connector... -
Page 4: Height Adjustment
Height Adjustment The support allows changing the height between the PCB and the preheater heating area. It can be chosen between 3 positions for the working height adjustment. Unscrew these pins to place the support in the lowest level Low level 22 mm / 0.87 in Medium level... - Page 5 para manuales - negro plano 200 mm Fast PCB Replacement 130 mm 130 mm Move the spring guide backward to change PCBs of the same batch fast and easily. Removing the PCB Placing another PCB 100 mm Loosen the spring guide (1). Push the PCB Position the new PCB (4) and tighten the away from you and against the spring guide spring guide knobs (5).
-
Page 6: Status Indicator
Status Indicator The led status indicator indicates as follows the status of the preheater: Blue: The unit is resting, not heating. On the display, the symbol “Stop” (1) is shown. Green: The unit is running and heating accordingly Led status indicator to the operating mode. -
Page 7: Troubleshooting
para manuales - negro plano 200 mm Work Display 130 mm 130 mm The console offers an intuitive user interface, which provides quick access to station parameters. Status 100 mm Indicator 19:29 Status Bar 80 mm Max. Heating Instant Power Rate Supplied to Heater... -
Page 8: Recommended Guidelines
Setting Thermocouples Function Select Thermocouples from the Work mode menu to set them up. The thermocouples (TC) can work in three different ways depending on what is needed. · Control: the unit maintains the selected temperature. · Protection: the Heater Unit stops if the TC reaches the selected temperature. ·... -
Page 9: Work Mode
para manuales - negro plano 200 mm 19:29 Work Mode 130 mm 130 mm Temperature Mode: Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected 100 mm temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection temperature limit. - Page 10 Work Mode This function allows you to set a maximum value for the temperature increase per second when Temperature Mode: heating. Select Temp. mode from the Work mode menu. In this mode, the heater unit maintains the selected The maximum heating rate value can be set between 0.1ºC/s and 2.0ºC/s (2) or “None” if this function temperature for the TC1 thermocouple as long as the other TC’s do not reach the control/protection is not desired.
- Page 11 para manuales - negro plano 200 mm Profile Modes 130 mm 130 mm Select Profile Mode from the Work Mode Menu. In this mode the heater unit regulates the temperature of the TC1 thermocouple according to the selected profile as long as the other TCs do not reach the control/protection temperature limit.
-
Page 12: Profile Editor
JBC Predefined Profiles There are 3 profiles predefined by JBC: A, B and C. The difference between them is the number of steps: 2, 3 or 4. The thicker your PCB is and the more layers it contains, the more steps are needed to obtain gradual warming. -
Page 13: Process Analysis
para manuales - negro plano 200 mm Process Analysis 130 mm 130 mm By pressing Graphics in the main MENU, the temperature of TC1 thermocouple and power fi gures in real time are displayed. 100 mm Graphics 80 mm 19:29 Power (%) 60 mm 50 mm... - Page 14 Insert a USB flash drive into the USB-A connector to export/import profiles. Update the Station Software 1. Download the JBC Update File from 2. Insert the USB flash drive into the console. www.jbctools.com/software.html and save The icon is displayed while updating.
-
Page 15: Maintenance
- Replace any defective or damaged parts. Use original Clean periodically JBC spare parts only. the Sliding Guide Axes - Repairs should only be performed by a JBC authorized 50 mm technical service. - A blown fuse can be replaced by the user itself. 40 mm The fuse is located between the power supply connector and the on/off switch (1). - Page 16 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than PCB preheating. Incorrect use may cause a fire. - The mains cable must be plugged into approved bases. Make sure that it is properly grounded before use.
- Page 17 para manuales - negro plano 200 mm Notes 130 mm 130 mm 100 mm 80 mm 60 mm 50 mm 40 mm 17 17...
- Page 18 Notes...
-
Page 19: Specifications
50 - 250 °C / 120 - 482 ºF - Temperature Measurement: Thermocouple type K Accuracy: ± 5 °C / ± 10 °F - JBC Set Temperature Profiles: 3 profiles (2, 3 or 4 steps) 40 mm - User Profiles: 22 (up to 16 steps for each) - Page 20 In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. If you register, you will receive e-mail notifications about new software updates for your registered product.
