Behringer VINTAGE DISTORTION VD1 Quick Start Manual

VINTAGE DISTORTION VD1
All manuals and user guides at all-guides.com
Thank you for showing your confidence in us by purchasing the BEHRINGER VINTAGE
DISTORTION VD1. This high-quality effects pedal delivers authentic and classic distortion
effect—the warm and emotive tone that has ruled rock for the last 30 years. Thanks to
its high-performance features, the VD1 reproduces the natural dynamics of your playing
and lets your guitar scream.

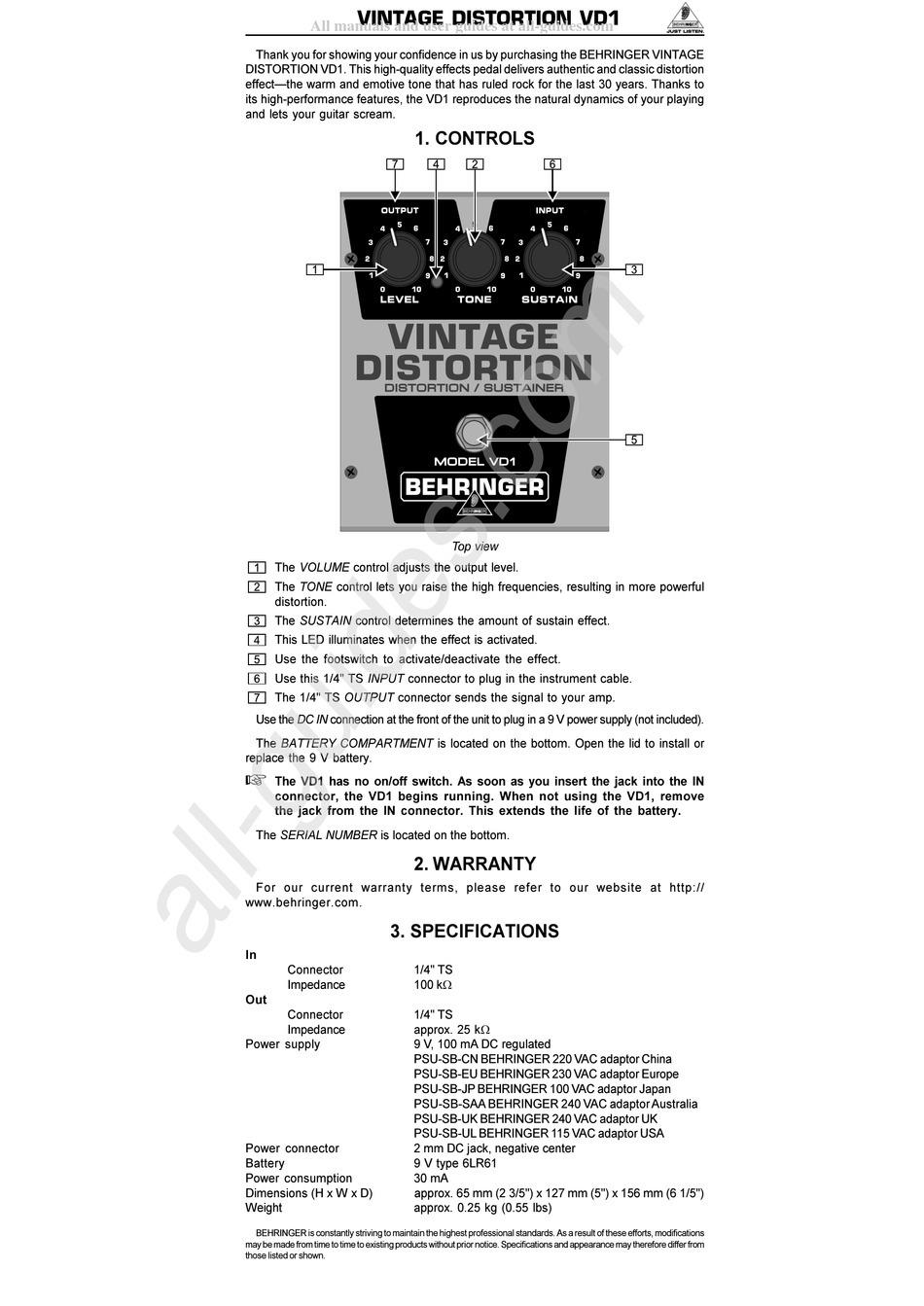

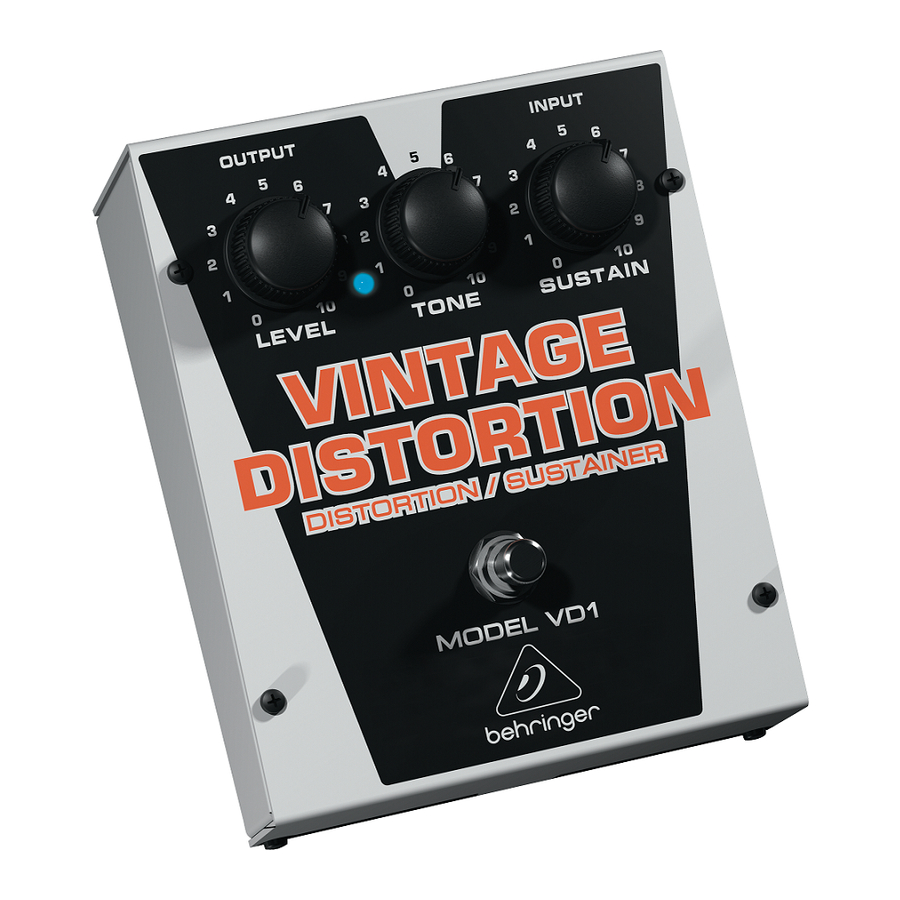

1. CONTROLS

The VOLUME control adjusts the output level.
The TONE control lets you raise the high frequencies, resulting in more powerful
distortion.
The SUSTAIN control determines the amount of sustain effect.
This LED illuminates when the effect is activated.
Use the footswitch to activate/deactivate the effect.
Use this 1/4" TS INPUT connector to plug in the instrument cable.
The 1/4" TS OUTPUT connector sends the signal to your amp.
Use the DC IN connection at the front of the unit to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located on the bottom. Open the lid to install or
replace the 9 V battery.
+
The VD1 has no on/off switch. As soon as you insert the jack into the IN
connector, the VD1 begins running. When not using the VD1, remove
the jack from the IN connector. This extends the life of the battery.
The SERIAL NUMBER is located on the bottom.

2. WARRANTY

For our current warranty terms, please refer to our website at http://
www.behringer.com.

3. SPECIFICATIONS

In
Connector 1/4" TS
Impedance 100 kW
Out
Connector 1/4" TS
Impedance approx. 25 kW
Power supply 9 V, 100 mA DC regulated
PSU-SB-CN BEHRINGER 220 VAC adaptor China
PSU-SB-EU BEHRINGER 230 VAC adaptor Europe
PSU-SB-JP BEHRINGER 100 VAC adaptor Japan
PSU-SB-SAA BEHRINGER 240 VAC adaptor Australia
PSU-SB-UK BEHRINGER 240 VAC adaptor UK
PSU-SB-UL BEHRINGER 115 VAC adaptor USA
Power connector 2 mm DC jack, negative center
Battery 9 V type 6LR61
Power consumption 30 mA
Dimensions (H x W x D) approx. 65 mm (2 3/5") x 127 mm (5") x 156 mm (6 1/5")
Weight approx. 0.25 kg (0.55 lbs)
BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications
may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from
those listed or shown.
Top view
