Accessories / Accessoires / Accesorios
Self-tapping screws
①
Vis taraudeuses
Tornillo autorroscantes
Ø4×16 mm
Dimensions / Dimensions / Dimensiones
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from
your new power amplifier.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial numbers whenever you call upon your Kenwood dealer for
information or service on the product.
Model X502-1 / XM502-1 Serial number
US Residence Only
Register your Kenwood product at www.kenwood.com/usa
© 2021 JVCKENWOOD Corporation

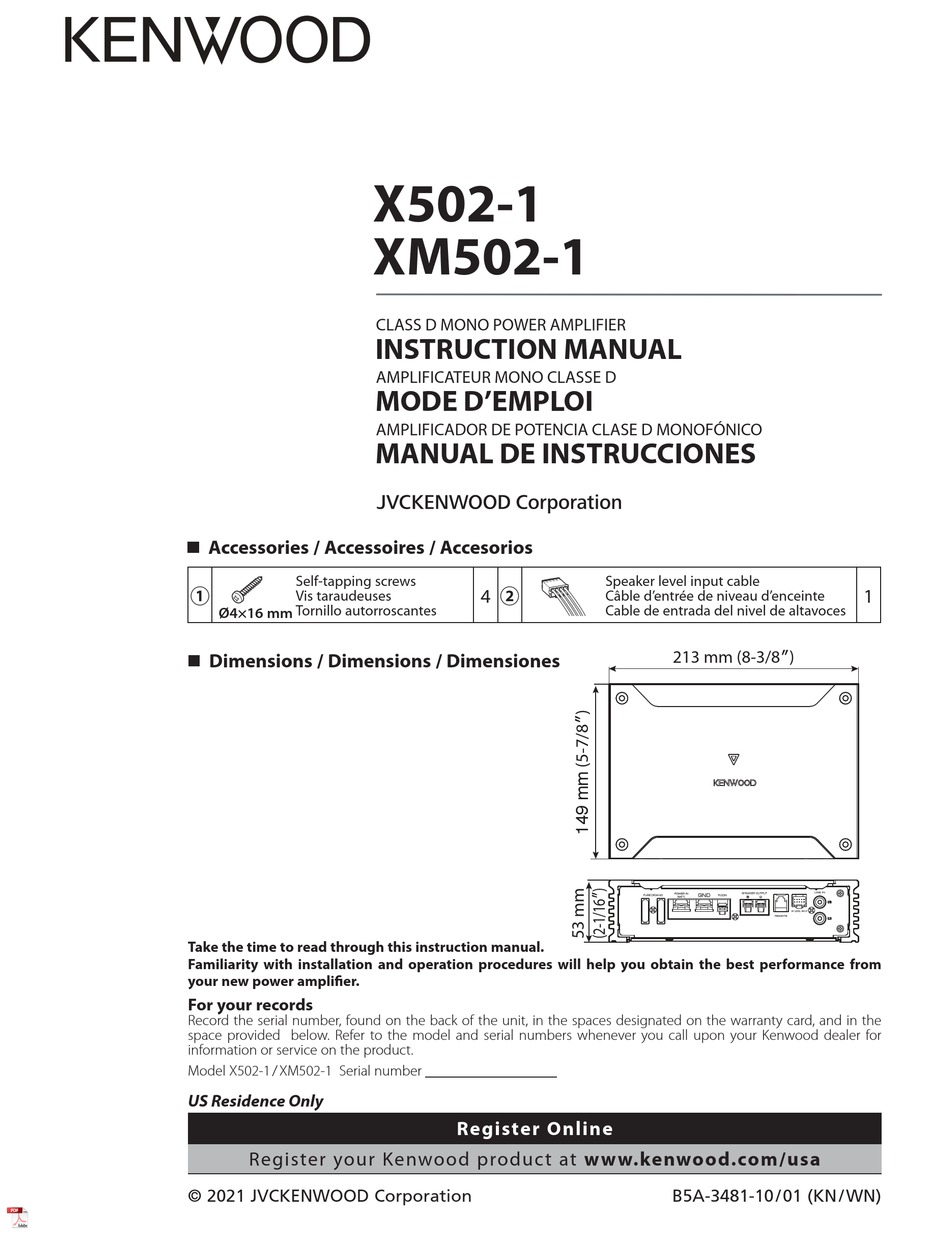

X502-1
XM502-1
CLASS D MONO POWER AMPLIFIER
INSTRUCTION MANUAL
AMPLIFICATEUR MONO CLASSE D
MODE D'EMPLOI
AMPLIFICADOR DE POTENCIA CLASE D MONOFÓNICO
MANUAL DE INSTRUCCIONES
4 ②
Register Online
Speaker level input cable
Câble d'entrée de niveau d'enceinte
Cable de entrada del nivel de altavoces
213 mm (8-3/8 )
B5A-3481-10 / 01 (KN / WN)
1
