Steps

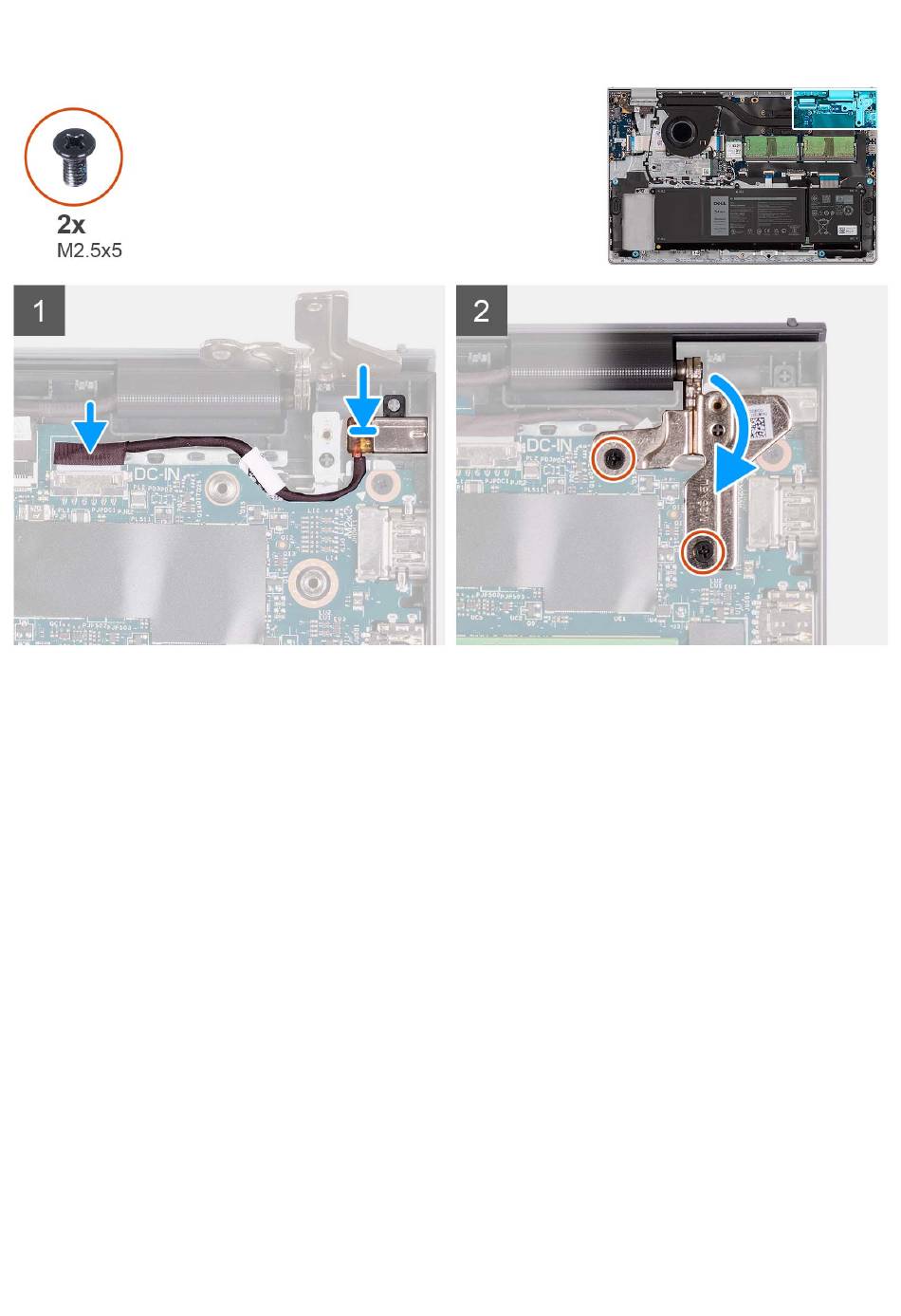

1. Using the alignment post, place the power-adapter port into its slot on the palm-rest and keyboard assembly.
2. Connect the power-adapter port cable to the connector on the system board.
3. Fold the right hinge down and install the two (M2.5x5) screws to secure it to the palm-rest and keyboard assembly.
Next steps
1. Install the display assembly.
2. Install the base cover.
3. Install the SD card.
4. Follow the procedure in

Palm-rest and keyboard assembly

Removing the palm-rest and keyboard assembly

Prerequisites
1. Follow the procedure in
2. Remove the SD card.
3. Remove the base cover.
4. Remove the 3-cell battery
5. Remove the M.2 2230 solid-state drive
6. Remove the memory modules.
7. Remove the wireless card.
After working inside your
Before working inside your
or 4-cell battery (whichever applicable).
or M.2 2280 solid-state drive
computer.
computer.
(whichever applicable).
