1. Fan connector
3. eDP connector
5. Keyboard FFC connector
7. Battery connector
9. Touchpad FFC connector
11. Wireless connector
13. Solid-state drive connector

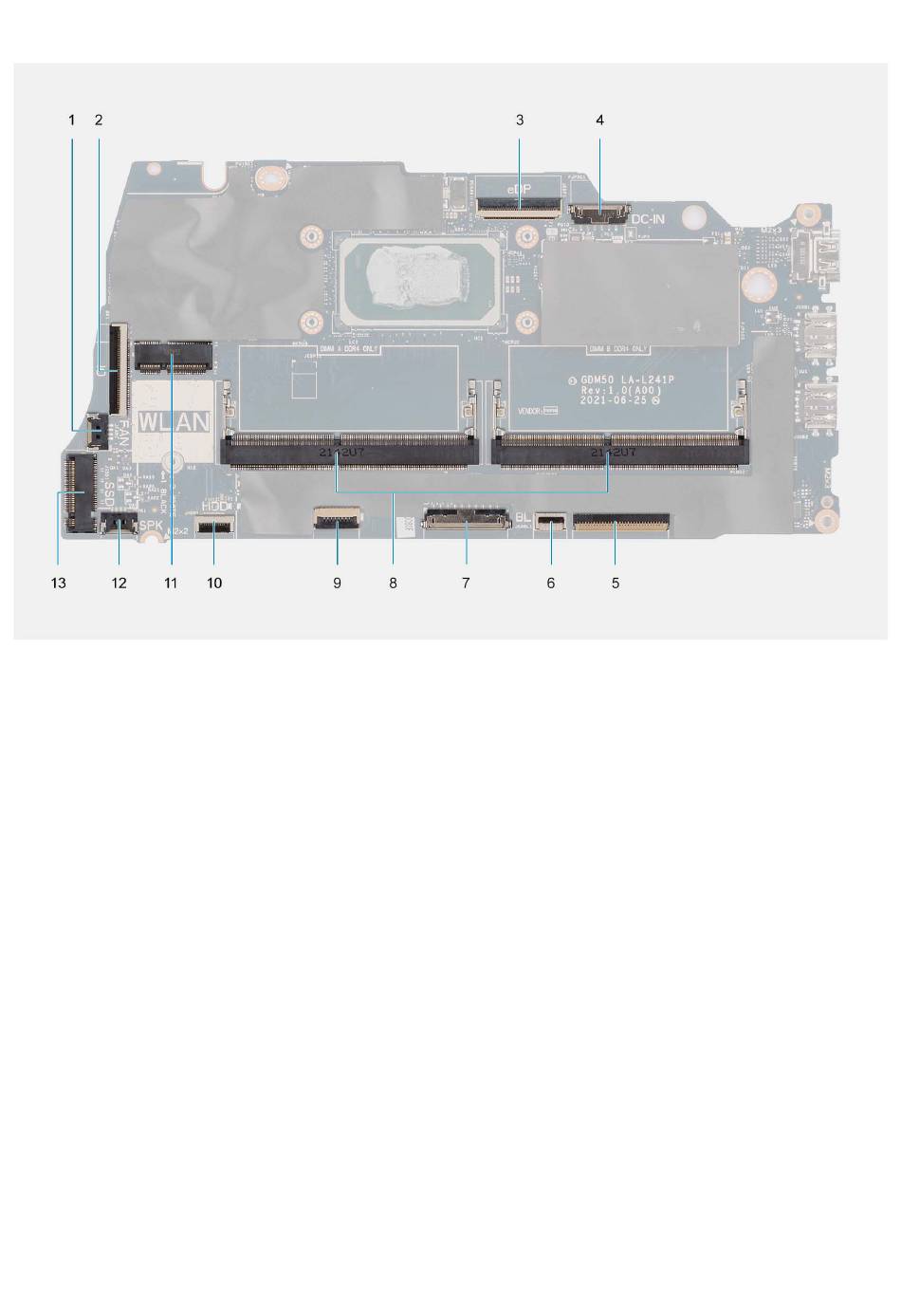

The following images indicate the location of the system board and provide a visual representation of the installation procedure.
2. I/O board FFC connector
4. DC-in port connector
6. Keyboard-backlight FFC connector
8. Memory modules
10. Hard drive FFC connector
12. Speaker cable connector
Removing and installing components
