Steps

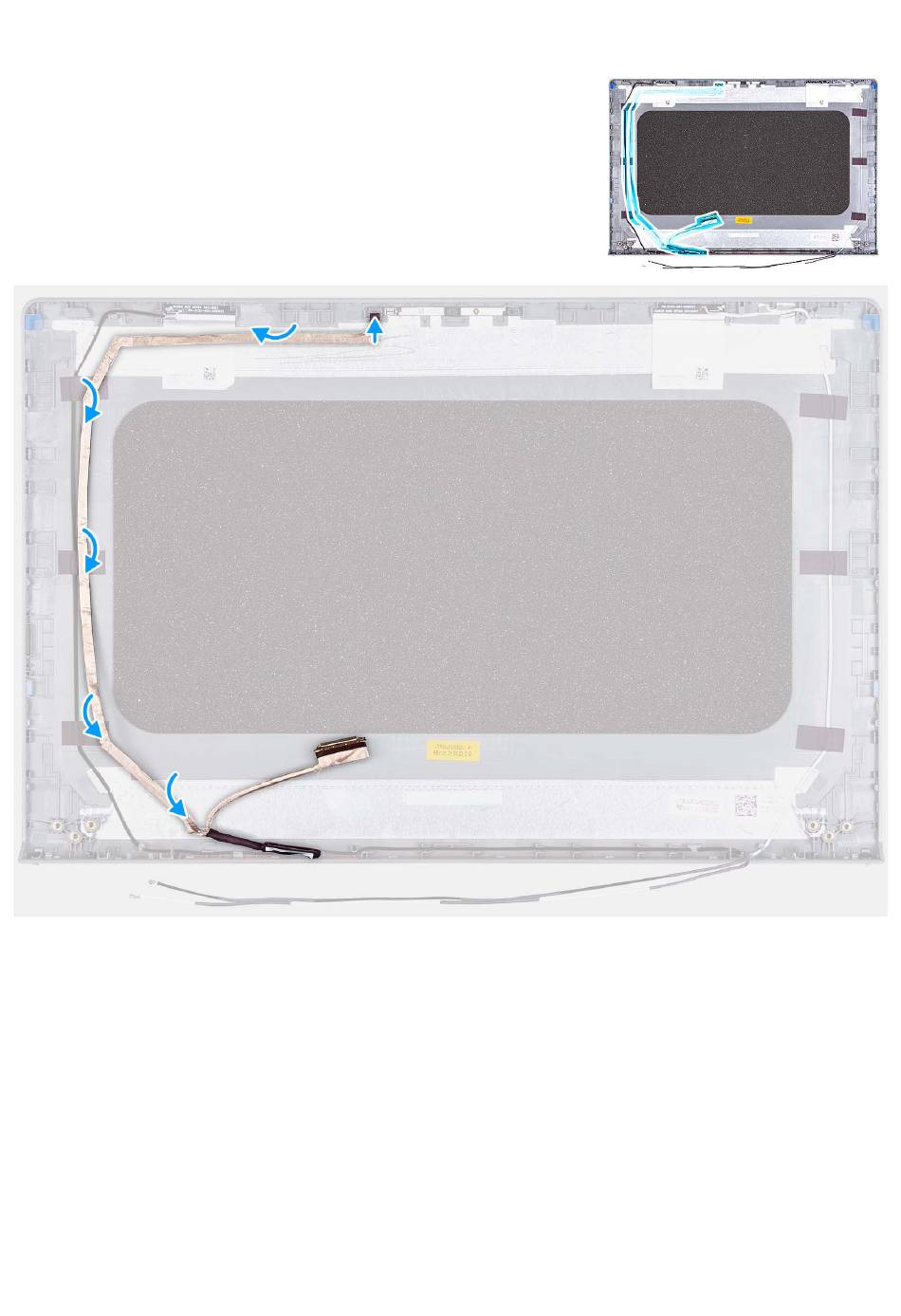

1. Adhere the tape to securing the eDP cable to the display back cover.
2. Connect the eDP cable to the camera.
Next steps
1. Install the
display
panel.
2. Install the hinges.
3. Install the
display
bezel.
4. Install the
hinge
caps.
5. Install the
display
assembly.
6. Install the
wireless
card.
7. Install the
base
cover.
8. Install the
SD
card.
Removing and installing components
81
