Steps

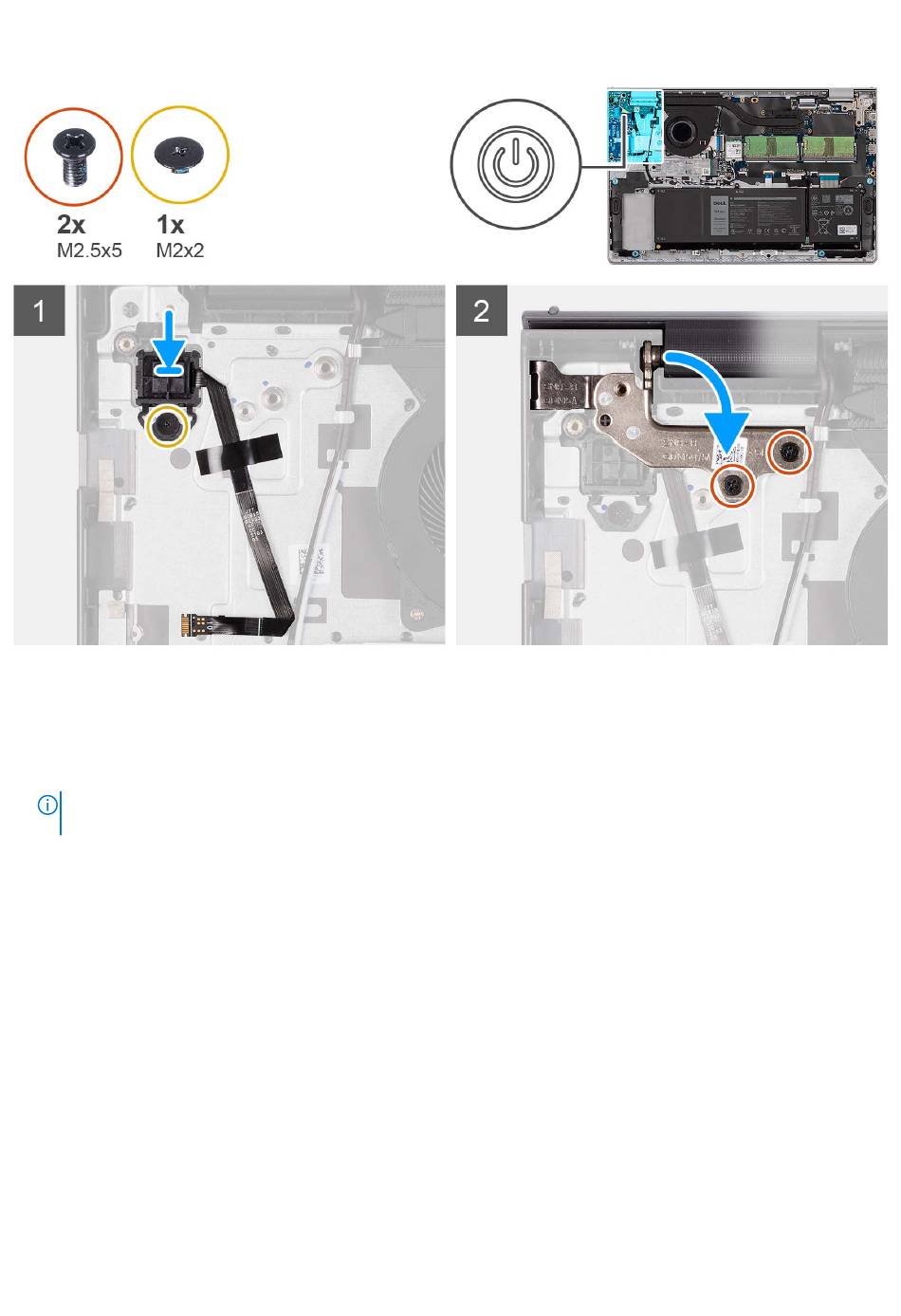

1. Using the alignment posts, place the power button with fingerprint reader into its slot on the palm-rest and keyboard
assembly.
2. Replace the (M2x2) screw that secures the power button with fingerprint reader to the palm-rest and keyboard assembly.
3. Adhere the fingerprint reader Flexible Flat cable to the palm-rest and keyboard assembly.
NOTE:
Fold and align the fingerprint reader Flexible Flat cable to the mark at the right of the power button, and align
the white line on the Flexible Flat cable to the mark on the palm-rest and keyboard assembly.
4. Close the display hinge.
5. Replace the two (M2.5x5) screws that secure the display hinge to the palm-rest and keyboard assembly.
Next steps
1. Install the
display
assembly.
2. Install the
wireless
card.
3. Install the
I/O
board.
4. Install the
base
cover.
5. Install the
SD
card.
6. Follow the procedure in
After working inside your
computer.
Removing and installing components
53
