Steps

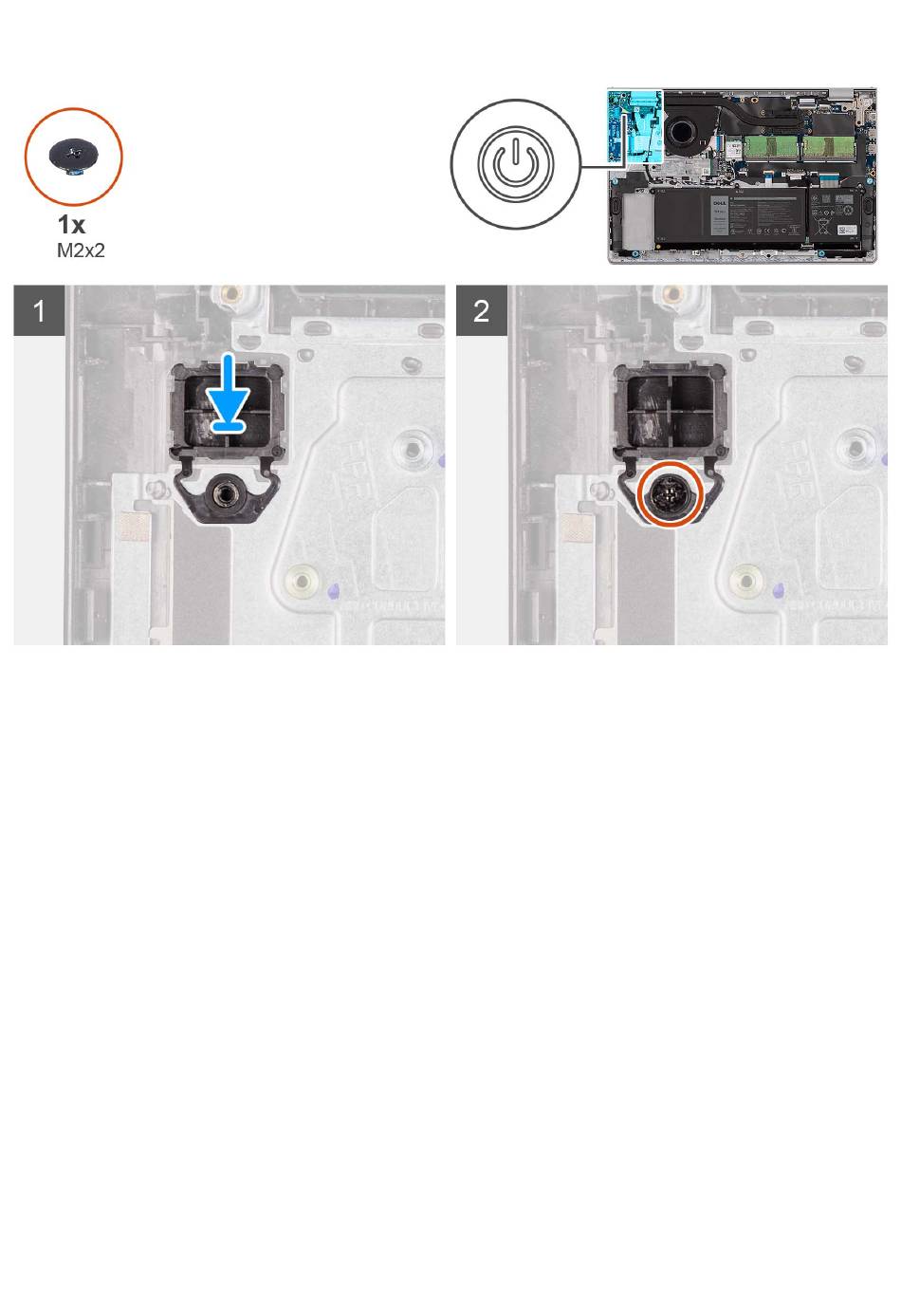

1. Place the power-button board into the slot on the palm-rest and keyboard assembly.
2. Install the single (M2x2) screw to secure the power button to the palm-rest and keyboard assembly.
Next steps
1. Install the
display
assembly.
2. Install the
wireless
card.
3. Install the
I/O
board.
4. Install the
base
cover.
5. Install the
SD
card.
6. Follow the procedure in
Power button with fingerprint reader
Removing the power button with optional fingerprint reader
Prerequisites
1. Follow the procedure in
2. Remove the
SD
card.
3. Remove the
base
cover.
4. Remove the
wireless
card.
5. Remove the
I/O
board.
6. Remove the
display
assembly.
After working inside your
Before working inside your
computer.
computer.
Removing and installing components
51
